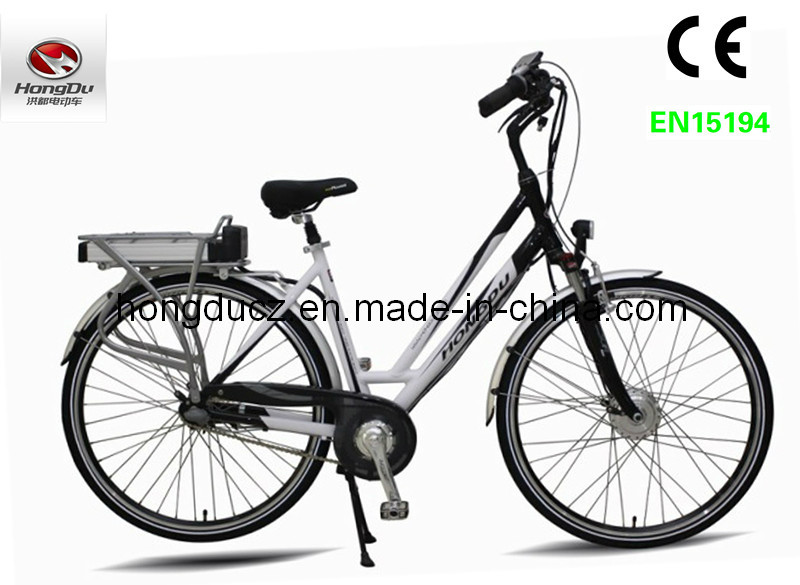

En15194 Cheap Rack Battery 28inch Electric Bicycle (TDB20Z)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 500.0-510.0/ Piece

Price:$500.0 - $510.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 29, 2014 To Apr 05, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:TDB20Z

Running Distance:<45KM

Motor:Brushless

Brake:V Brake, Disc Brake, Servo Brake

Max Speed:20-40km/h

Battery Type:Lithium Battery

Frame Material:Aluminum/Alloy

Voltage of Battery:36V

Power:200-250W

Certification:En15194

Maximum Loading Capacity:75-120kg

Wheel Hub:Alloy Hubs

Wheel Size:28"

Folded:Unfolded

Charging Time:<6h

Part:Wheel

Color:Optional

Decal:Customized

Export Markets:Global

Additional Info.

Trademark:Hongdu or others

Packing:Carton

Standard:En15194, ISO, CCC

Origin:OEM

HS Code:8711901010

Production Capacity:500, 000 PCS/Year

Product Description

TDB20Z Features:
1) Frame: Aluminum alloy(Painting)
2) Front fork: ZOOM Suspension
3) Motor: 250W brushless
4) Derailleur: Shimano, 7-speed(Tourney)
5) PAS and grip accelerator
6) Battery: 36V, 10Ah Lithium battery in rear rack
7) Wheel size: 26", reflection tyre
8) Brake: F/V, R/Roller Brake
9) Speed: 0 - 24km/h
10) Full charge distance: 60km by pedal

Outer packing:
Carton dimensions: 148*27*91cm

N. W.: 25kg
G. W.: 35kg

Conveyance:
Qty/20' GP: 64 units
Qty/40' HQ: 142 units

Specification	TDB20Z
Frame	Alloy Aluminum
Fork	RTS, Suspension
Handbar&Stem	Zoom, Alloy Aluminum
Wheel&Rim	28", Alloy Al. Rim
Tyre&Tube	28", Kenda,
Derailleur	Shimano, 3 Speed inner
Brake	F-V, R-Roller Brake
Mudguard	Alloy Plastic or Aluminum
Motor	250W
Controller	36V15A,
Display	LED (3speed Optional)
Throttle	Wuxing(Optional)
Max Loading	95KG
Rear Rack	Aluminum
Saddle Post	Suspension
Battery	36V10AH Lithium
Range	45KM(PAS)
Speed	0-25KM/H
Charging Time	6 Hours
Net Weight	25KG
Gross Weight	30KG
Packing	Carton, 64pcs/20GP
