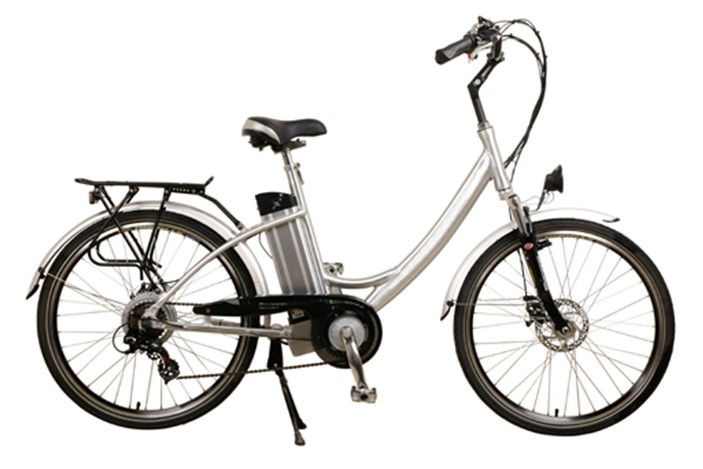

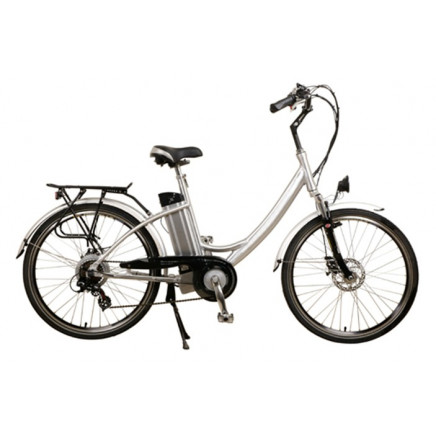

En25194 250W Low Step Ladies E Bike (TDF01Z-603)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
10.0	US $ 470.0-480.0/ Piece

Price:$470.0 - $480.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 02, 2014 To Jul 02, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:TDF01Z-603

Running Distance:45-60KM

Motor:Brushless

Brake:Disc or V/Servo

Max Speed:20-40km/h

Battery Type:Lithium-Ion Battery

Frame Material:Aluminum/Alloy

Voltage of Battery:36V

Power:200-250W

Certification:CE, En15194

Maximum Loading Capacity:75-120kg

Wheel Hub:Alloy Hubs

Wheel Size:26"

Folded:Unfolded

Charging Time:<6h

Part:Wheel

Color:Optional

Decal:Customized

Export Markets:Global

Additional Info.

Trademark:HONG DU

Packing:Carton

Standard:CE, EN15194

Origin:Jiangsu, China

HS Code:8710901010

Production Capacity:50, 000PCS/Year

Product Description

Lightweight battery power assisted e bike

1) Frame: Aluminum alloy low step
2) Front fork: Zoom, suspension
3) Handlebar&stem: ZOOM, alloy, stem adjustable
4) Rims: Alloy
5) Wheel size: 26"
6) Brakes: Front disc brake, rear disc brake or F/V R/Servo
7) Derailleur: Shimano 7-speed
8) Motor: 250W, brushless
9) Working style: Throttle control& pedal assisted
10) Battery: 36V10AH lithium
11) Charging time: 5 - 6 hours
12) Range: 30-35km
13) Speed: 0 - 25km/h
14) N. W.: 28KG
15) G. W.: 33KG

Packing:
1piece/CTN
Carton dimensions: 160 X 27 X 78cm

Conveyance:
Qty/20'GP: 81PCS
Qty/40'HQ: 188PCS

Model	TDF01Z-603
Frame	Alloy Aluminum
Fork	Zoom, Suspension
Handbar&Stem	Zoom, Alloy Aluminum
Wheel&Rim	26", Alloy Al. Rim
Tyre&Tube	26", Kenda,
Derailleur	Shimano, 6&7 Speed
Brake	F-V/Disc, R-Servo/Disc Brake
Mudguard	Alloy Plastir or Aluminum
Motor	250W
Controller	36V15A,
Display	LED (3 speed Optional)
Throttle	Wuxing(Optional)
Max Loading	95KG
Rear Rack	Aluminum
Saddle Post	Folding Steel & AL. Suspension
Battery	36V10AH Lithium
Range	45KM(PAS)
Speed	0-25KM/H
Charging Time	6 Hours
Net Weight	28KG
Gross Weight	33KG
Packing	Carton, 81pcs/20GP 188pcs/40HQ
