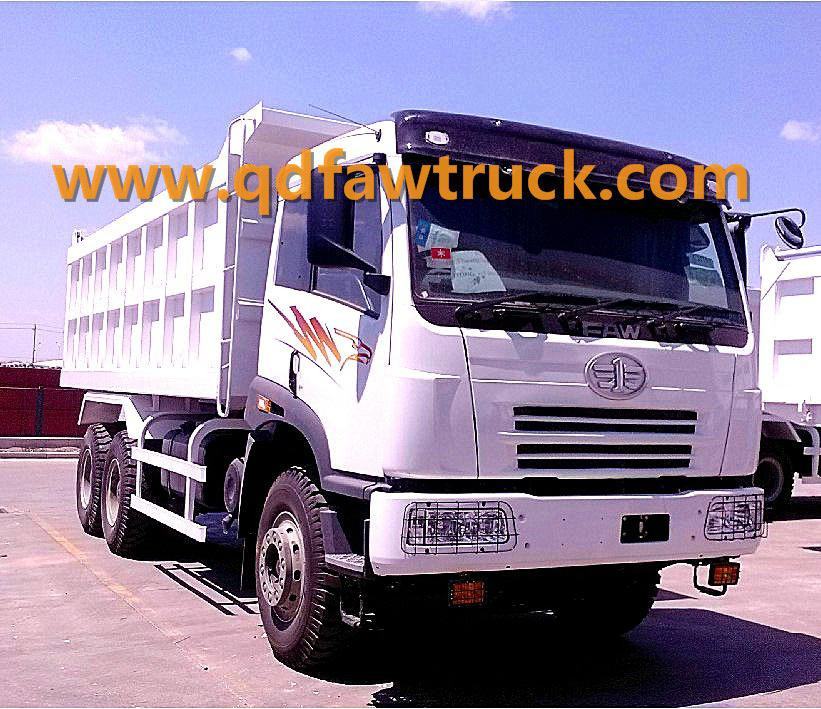

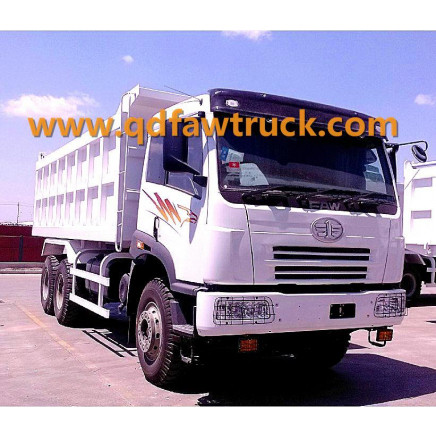

Faw 20 Tons Dumper (CA3253P7K2T1A)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 33000.0-53000.0/ Piece

Price:$33000.0 - $53000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Dec 16, 2014 To Mar 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CA3253P7K2T1A

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Type:Tipper Truck

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW

Packing:Nude Packing

Standard:ISO

Origin:China

HS Code:8704230090

Production Capacity:500 PCS/ Month

Product Description

Faw 20 Tons Dumper
Faw 20 Tons Dumper (CA3253P7K2T1A)

FAW 20 Tons Dumper
Mode: CA3253P7K2T1A
Cabin J5M, Semi-floating top cab
Engine Model: WD615.50
Emission standard Euro 2
Power (KW) 320PS
Clutch model 430mm, single plate, dry, diaphragm
Gearbox Model Shaichi 9js119 transmission
Rear Axle Axle 457wheel reduction forged axle
Rear Axle speed ratio 5.833.
Wheel & tire 11.00R20, Model 16 Ply Rating.
Frame 300*90*(8+5)
Axle Base 3800+1350
Fuel Tank 200
Carriage 5600*2300*1400

Mass
Parameter Curb weight (kg) 12050
Gross truck weight 24950
Payload weight(kg) 12705
Weight distribution unloaded Front axle 5600
Rear axle 6450
Weight distribution unloaded Front axle 6975
Rear axle 17975.

LOADING CAPACITY: 20T/25T/30T/35T/40T

TRUCK SPECS	Overall dimension:		8000x2496x3450mm(26.25x8.19x11.32ft)/ 8545X2496X3170mm(28.04x8.19x10.40ft)/ 8675x2496x3450mm(28.46x8.19x11.32ft)/ 8845x2496x3450mm(29.02x8.19x11.32ft)
	Cabin	Cabin size:	J5P cabin(2 seats and 1 bed)
		Seats and sleeper Bed:	2 seats and 1 bed/
		Air conditioner:	standard
	Engine	Horsepower(hp):	290 320 360
		Tech:	steyr tech
		Engine Type:	6-cylinder in line, 4-stroke, water-cooled,turbocharged, intercooled
		Emission Standard:	EUR 2
		Fuel Type:	Diesel
		Engine Capacity(ml):	9726
	Gear Box/Transmission		9 speeds and 1 reverse speed
	Clutch		?430
	Axles	Front Axles:	9T
	Axles	Driving Axles:	2x16T
	Tyre:		12.00-20,10 Radial tires with one spare tire/ 12.00R20,10 Radial tires with one spare tire
	Max speed:		75/80/85km/h
	Tare weight(MT):		12MT
BODY SPECS	Body Dimensions (LengthXWidthXHeight):		5400X2300X1500mm(17.72x7.55x4.92ft)/ 5600x2300x1500mm(18.37x7.55x4.92ft)/ 6000X2300X1500mm(19.70x7.55x4.92ft)/
	Material:		Q235
	Body steel (mm):		floor 8mm(0.32in),side 6mm(0.24in)
	Cpacibility(M3):		20CBM 22CBM 25CBM
	Lift System:		hydraulic system with power assistance
	Wheel base:		3450/3825+1350mm(12.55x4.43ft)
	Track Width(front/rear):		2041/1830mm(7.91x6ft)
	Overhang(front/rear):		1500/1870mm(7.55x6.14ft)
	Approach/Departure Angle:		19°/23°
