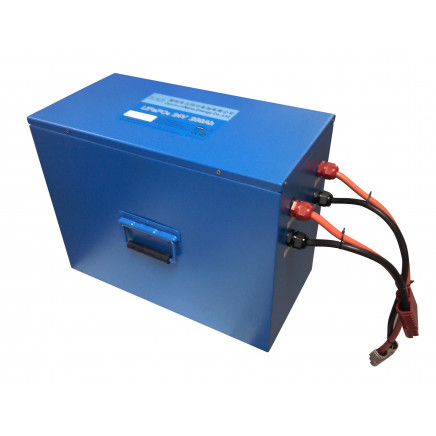

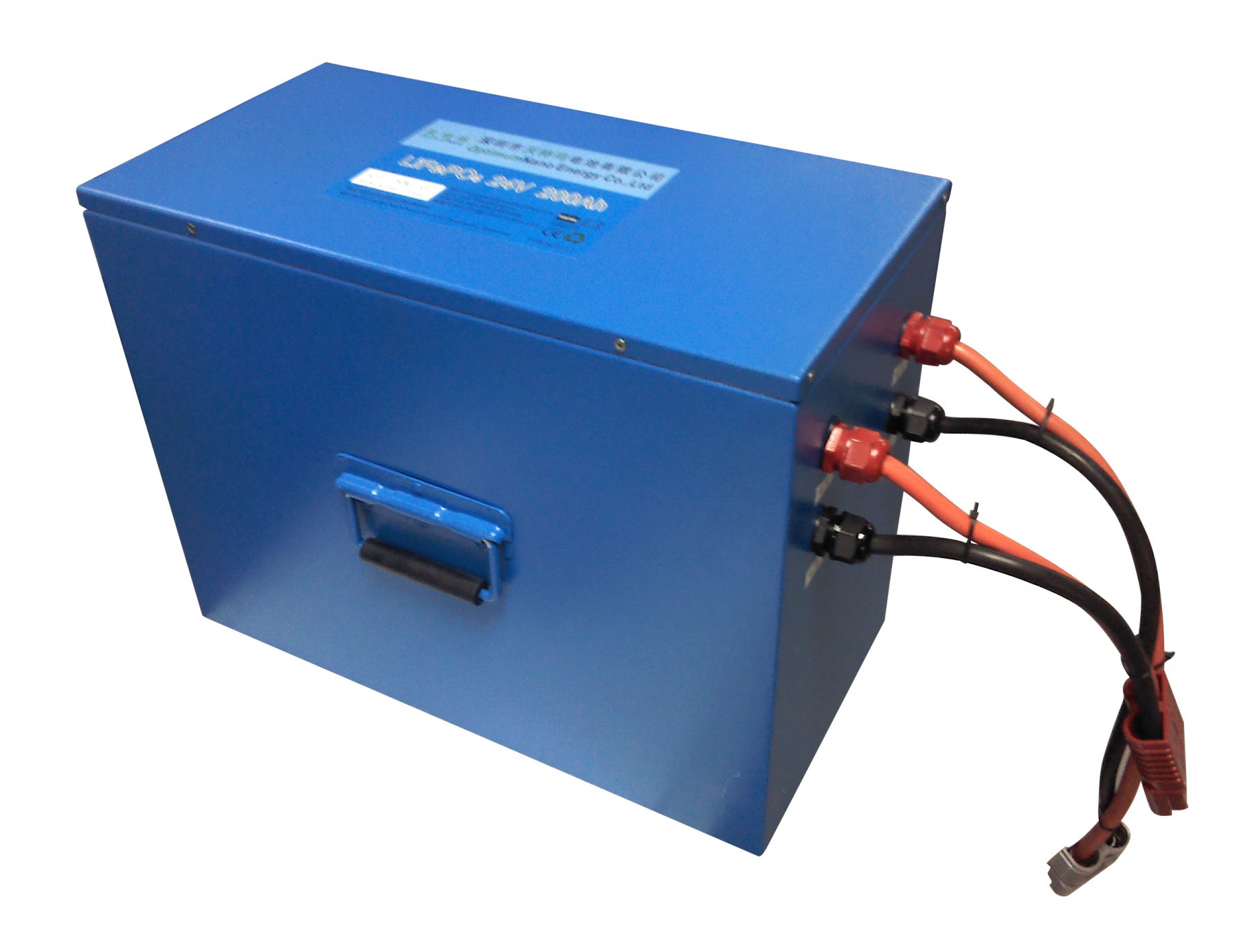

Forklift 24V 200ah Rechargeable Lithium Ion Battery Pack

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
100.0	US $ 1.0-500.0/ Piece

Price:$1.0 - $500.0 / Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From May 28, 2015 To Aug 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPt-24200

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:High Discharge Rate

Size:Medium

Accessories Type:Battery

Rated Capacity:200ah

Standard Voltage:24V

Usage:Forklift Battery

Electrolyte:LiFePO4

Lead Time:20-25days

Warranty:2 Years

Life Cycles:2000 Times

Application:Forklift Battery

Certificate:UL ,CE ,RoHS ,ISO9001 ,Ts16949

Advantages:Safety,Long Life Cycles,High Energy Density

Self-Discharge Rate:Less Than 3% Monthly

Cell:32650

with BMS/PCM:PCM

Components:LiFePO4(Lithium Iron Phosphate)

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Customized Package

Standard:CE, UL, ROHS, SGS, TS/16949 and ISO9001-2008

Origin:China Guangdong Shenzhen

HS Code:8507600090

Production Capacity:50, 000 PCS/Year.

Product Description

Forklift 24V 200Ah Rechargeable Lithium Ion Battery Pack

Product Description
Product Feature
1. Safety: Safest Li-ion battery, CE UL approved, built-in protection circuit board (BMS), no fire, no explosion
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 2000 times deep cycle at 1C rate, 6-8 times of lead acid battery
4. No memory effect, highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~65 C
6. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly

Applications
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment

Specification:

NO.	Item	General Parameter		Remark
1	Model	IFR 32650
2	Casing material for single cell	steel case for single cells
3	Standard capacity(0.2C5A)	200Ah
4	Rated voltage	25.6V		Work Voltage: 3.2V
5	Max.Charge voltage	29.2V		Single Ave. Charge Voltage:3.65V
6	Cut-off voltage	20V		Single Ave. Disharge Voltage:2.5V
7	Standard charge and discharge current	40A		0.2C
8	charging Time	5 h		0.2C
9	Max discharge current	80A		0.4C
10	length	550mm		or customized
11	width	427mm		or customized
12	height	240mm		or customized
13	Weight(Approx,including case)	About 65.3kg
14	Impedance(Max, at 1000Hz.)	? 60m?
15	Operate temperature	Charge	0ºC~45ºC
		discharge	-20ºC~60ºC
		storage	-20ºC~45ºC
