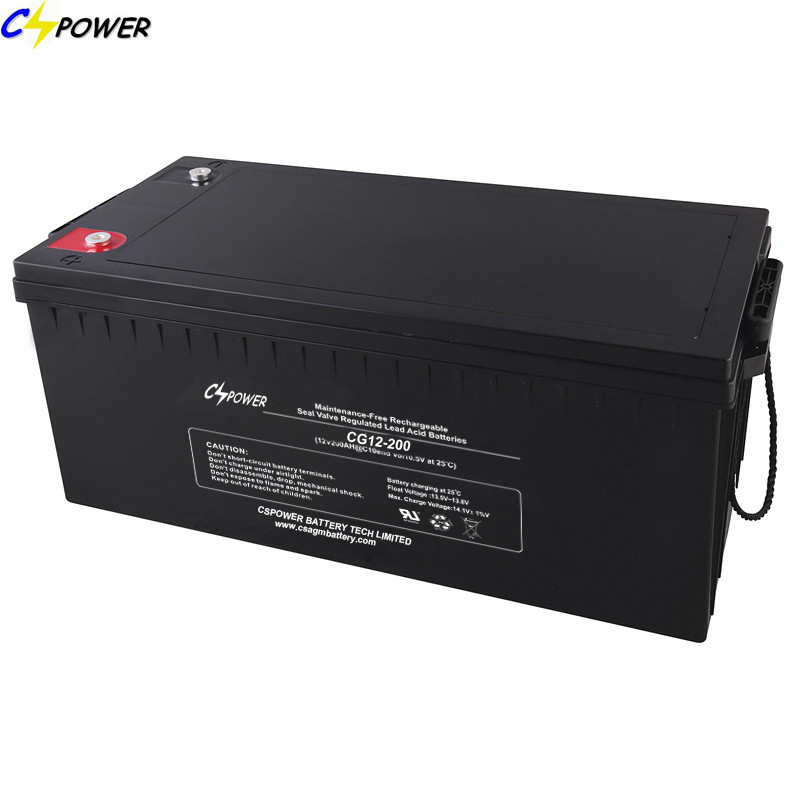

Gel Long Life Battery -12V200ah Colloid BatteryCharacteristicsModel: Gel Battery Colloid Battery CG12-200,
Warranty: 3years Colloid Gel Battery,
Life span: 15-20years Colloid Gel Battery,
Minimum Order: 10 Units
FOB Port: Guangzhou/Shenzhen/Hongkong
Lead Time: 5 - 7 days
Payment Terms: T/T, Western Union
Product Certificate: CE, ISO, IECFeatures
· Sealed and maintenance free operation.
· Non-Spillable construction design.
· Safety valve installation for explosion proof.
· High quality and high reliability.
· Exceptional deep discharge recovery performance.
· Low self discharge characteristic.
· Flexibility design for multiple install positions.
· The operating ambient temperature -40 °C to +65 °C. Main ApplicationUPS, solar systems, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.
Quality Assurance
- Equipment control
We adopt the entire computer automatic control (Density testing, adding acid, charging, etc.)
-Raw material control
Any raw material will be forbidden used in the production if they didn't pass the testing by laboratory strictly.
-Production process control
The semi-finished products must pass several inspections in the production line.
-Finished products control
Before packaging, the finished battery must be tested 100% by our function testing machine and pass the inner resistance testing, density testing, 3-5ºC discharge performance testing etc.
-Shipment control
The goods can't be sold unless their appearance and performance are tested 100% by the professional inspector.
Our goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.
Welcome to contact us for the battery details.Contact details:
Mobile: +86-18823798267
Tel: 0086-755-29123661
Web: www.csagmbattery.com
www.cssolarbattery.com
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25ºC | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CG12-33 | 12 | 33 | 10.4 | 22.9 | 196 | 7.70 | 131 | 5.16 | 155 | 6.10 | 170 | 6.69 | T9/T16 |
| CG12-38 | 12 | 38 | 12.2 | 26.84 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CG12-50 | 12 | 50 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-55 | 12 | 55 | 16.2 | 35.6 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/T16 |
| CG12-65 | 12 | 65 | 20,5 | 45.1 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CG12-70 | 12 | 70 | 22.0 | 48.4 | 260 | 10.2 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T16 |
| CG12-80 | 12 | 80 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 229 | 9.02 | T14 |
| CG12-85 | 12 | 85 | 29 | 64.10 | 307 | 12.08 | 169 | 6.65 | 211 | 8.3 | 234 | 9.21 | T16A/T8 |
| CG12-100 | 12 | 100 | 30 | 66 | 331 | 13.0 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CG12-120 | 12 | 120 | 36.5 | 80.3 | 407 | 16.0 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CG12-134 | 12 | 134 | 41 | 90.2 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 283 | 11.14 | T9/T20 |
| CG12-150 | 12 | 150 | 42.5 | 93.5 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CG12-180 | 12 | 180 | 56.5 | 124 | 530 | 20.9 | 209 | 8.23 | 214 | 8.43 | 240 | 9.45 | T9 |
| CG12-200 | 12 | 200 | 60 | 132 | 522 | 20.57 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CG12-230 | 12 | 230 | 64 | 140.8 | 522 | 20.6 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T9 |
| CG12-250 | 12 | 250 | 68 | 150 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
| CG2-100 | 2 | 100 | 6.4 | 14.11 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 227 | 8.94 | T16 |
| CG2-150 | 2 | 150 | 9.0 | 19.8 | 172 | 6.77 | 102 | 4.02 | 207 | 8.15 | 227 | 8.94 | T6 |
| CG2-200 | 2 | 200 | 14 | 30.9 | 172 | 6.77 | 111 | 4.37 | 329 | 13.0 | 356 | 14.0 | T20 |
| CG2-300 | 2 | 300 | 20.5 | 45.2 | 171 | 6.70 | 151 | 5.94 | 330 | 13.0 | 366 | 14.4 | T20 |
| CG2-400 | 2 | 400 | 27.5 | 60.6 | 210 | 8.27 | 176 | 6.93 | 329 | 13.0 | 366 | 14.4 | T20 |
| CG2-500 | 2 | 500 | 33.5 | 73.9 | 241 | 9.5 | 172 | 6.8 | 331 | 13.0 | 366 | 14.4 | T20 |
| CG2-600 | 2 | 600 | 41 | 90.4 | 301 | 11.9 | 175 | 6.89 | 331 | 13.0 | 366 | 14.4 | T20 |
| CG2-800 | 2 | 800 | 55 | 121.3 | 411 | 16.1 | 175 | 6.89 | 330 | 13 | 356 | 14 | T20 |
| CG2-1000 | 2 | 1000 | 66.5 | 146.6 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14.02 | T20 |
| CG2-1500 | 2 | 1500 | 103.5 | 228.2 | 401 | 15.8 | 351 | 13.8 | 342 | 13.5 | 369 | 14.5 | T20 |
| CG2-2000 | 2 | 2000 | 136 | 299.8 | 491 | 19.3 | 351 | 13.8 | 343 | 13.5 | 369 | 14.5 | T20 |
| CG2-3000 | 2 | 3000 | 195 | 429 | 710 | 28.0 | 352 | 13.9 | 342 | 13.5 | 369 | 14.5 | T20 |
