H Beam & I Beam Racing Connecting Rod for Spridget Midget 1275

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$26.0 - $27.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 27/ Piece
50.0	US $ 27/ Piece
500.0	US $ 26/ Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Mar 16, 2015 To Jun 06, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:H & I racing connecting rod for Spridget Midget

PCS/Set:4

(Mm)C-C:146.05

B/E Bore:45

S/E Bore:20.62

B/E W:26.9

S/E W:22.35

Bolt:5/16"

Quality Guarantee:3 Years

MOQ:1PC If Have Stocks & 50PCS for Producing

Certification:ISO9001, Ts16949, ISO14001 and So on

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Oceania, Eastern Asia, Western Europe

Additional Info.

Trademark:XYTOSAN, OSVAT, GPM, PAGZD, GEO, KOSFA and so on

Packing:Neutral, Xytosan or Upon Customers? Needs

Standard:OEM STD

Origin:Mainland of China

HS Code:8409919930

Production Capacity:About 3000000PCS /Year

Product Description

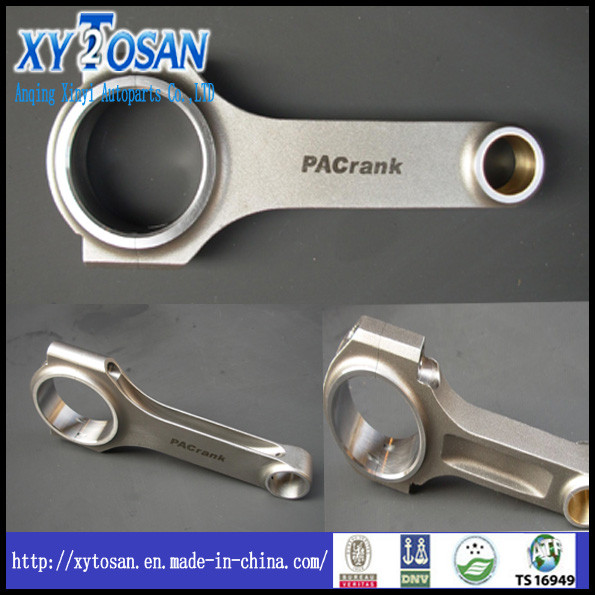

H beam & I beam racing connecting rod for Spridget Midget 1275

Product details
1) Material: 4340 forged steel;

2) Beam: H beam & I beam;

3) Hardness: 600-1000hp.

4) Technical flowsheet of connecting rod production

?	Roughcast testing whiling drawn into	?	Mill rod, Cover plane ,	?	Capitulum hole drilling ,and converse angle	?
	Rough mill pole double-plane	?	Rough tang capitulum hole	?	Rough mill pole cover ,stage	?
	Rough mill haftarah plane(intrados)	?	Semi finished product test	?	Benchmark of mill and serial number	?
	Polished mill pole cover stage	?	Rough tang big hole	?	Mill tile slot	?
	Screwed hole drilling	?	Fitting and proficiency	?	Semi polished pole cover double plane	?
	Semi-polished capitulum and converse angle	?	Oil hole drilling	?	Copper oppression cover	?
	Polished mill pole cover double plane	?	Degaussing	?	Polished tang capitulum hole	?
	Finished product checking	?	Precise milling	?	Weighing,grouping and tabing	?
	Generaltests	?	Cleanout,Oil antirust oil	?	Packaging and leaving factory	?

Strong capability
1) Production: more than 300000pcs/month;

2) Certification: ISO9001, Ts16949, ISO14001, etc.;

3) We have ANGOLA branch;

4) Brand: XYTOSAN, OSVAT, GPM, PAGZD, GEO, KOSFA, etc.;

5) MOQ: 1pc if have stocks & 50pcs for producing.

Other models:
Offering racing connecting rod for VOLVO, OPEL, BMW, VW, TOYOTA, HONDA, FORD, PEUGEOT, NISSAN, FIAT, PORSCHE, MITSUBISHI, SUBARU, SUZUKI, KAWASAKI, RENAULT, FERRARI, YAMAHA, ALFA, TRIUMPH, LAND ROVER, MG, AUSTIN, HOLDEN, BENZ, MAZDA, CHRYSLER, NYTRO, FAIRE, BUICK, SIGMA, DAIHATSU, SPRIDGET, ETC.

No.	Type	Engine	pcs/set	(mm)c-c	B/E bore	S/E bore	B/E W	S/E W	bolt
No.340	Ferrari	FER-200	12	118	47.1	20	23.546	23.546	3/8"
No.160a		FER-180	8	137	47.1	18	20.853	20.853	3/8"
No.160c		FER-185	8	136.5	47.1	18.5	22.4	22.4	3/8"
No.382b		CC133.5	4	133.5	51.5	22.02	22.2	22.2	3/8"
No.387		PPMF430	8	141	47.13	19.5	20.85	18	3/8"
No.378	Yamaha	CC110mm	4	110.5	39	17	20.8	18.03	5/16"
No.379		5jw	4	120.5	41.01	19	21.82	18.08	5/16"
No.381		FZR 1000	4	109.5	39	19	20.9	19.1	5/16"
No.381b		FZR 1000-18	4	109.5	39	18	20.9	19.1	5/16"
No.99d	Alfa	DUK-AF2	4	157	53.7	22	26.7	23.7	3/8"
No.99e		CR-ALF-156.03 (G)	4	156.03	53.7	22	26.7	23.7	3/8"
No.99		DUK-AF2(Romeo)	4	157	53.7	22	26.7	23.7	3/8"
No.367		2.0 CC156.97MM	4	156.97	53.7	22	26.8	23.8	3/8"
No.123		CRH-13	4	130.91	48	18	22.9	14.9	5/16"
No.109		SGG-RK	4	133.1	51.68	18	22.5	15.05	5/16"
No.222		2.0L CC131.1mm	6	131.1	55.51	22	24.75	23.7	3/8"
No.167	Triumph	GTR6/TR6	4(6)	146.05	51.34	22.15	22.78	21.6	5/16"
No.167b		Triple	3	116.4	44	18	23.35	22.1	5/16"
No.168		TR4/TR3	4	158.75	56.72	22.23	29.85	27.05	3/8"
No.235	Land Rover	5.807(Rover V8)	8	147.5	53.98	23.98	21.44	20.02	3/8"
No.235b	Land Rover	Rover-A-1275	4	146	48.15	20.65	26.2	22.5	3/8"
No.242	MG	MGB 6.500"	4	165.1	51.34	20.62	25.3	25.4	3/8"
No.242b	MG	CR-MGA-165	4	165	51.3	19	26.16	26.16	3/8"
No.250	Austin	CC160mm	4	160	51.4	21	25.4	18	3/8"
No.250c	Austin	M1N1	4	146.2	48	20.63	22.5	22.5	3/8"
No.375	HOLDEN	HOLDEN V6	4	143.35	60.33	23	21.45	21.45	3/8"
No.382		202	6	133.5	51.5	22.02	22.2	22.2	3/8"
No.401		Holden 202	6	133.35	51.43	22	23.1	23.1	3/8"
No.383	BENZ	CC145	4	145	51.6	22	22	22	3/8"
No.392	BENZ	CC154	4	154	55.6	26	24.9	27.9	7/16"
No.394	Sigma	1.6L CC136.9MM	4	136.9	47	18	20.8	15	3/8"
No.165	Spridget	Midget 1275	4	146.05	45	20.62	26.9	22.35	5/16"
No.275	MAZDA	CC132.79mm	4	132.79	48	20	21.84	21.84	3/8"
No.236	Buick	5.970"	6	151.64	60.32	23.88	21.72	21.72	7/16"
No.297	Faire	Faire	4	129	45.14	17.94	21.75	21.75	5/16"
No.341	Daihatsu	1.0L	4	125.04	46.08	19	24.8	22	5/16"
No.379	Nytro	5JW	4	120.5	41.01	19	21.82	18.08	5/16"
No.399		136.9	4	136.9	56	24	23.85	23.85	3/8"
No.412		CR-124.5	4	124.5	47	18	23.3	19.9	5/16"
No.437		PRELIMINARY	4	135	45	20	22.95	19.8	3/8"
No.445		Rally3	4	126.5	44.01	20	24.6	22	3/8"
No.485		CR-AC-050509		145	56	22	20.3	20.8	3/8"
No.85	Chrysler	6.765"	8	171.83	63.5	25.17(25.79)	25.65	31.75	7/16"
No.86		6.865"	8	174.37	63.5	25.17(25.79)	25.65	31.75	7/16"
No.87		6.965"	8	176.91	63.5	25.17(25.79)	25.65	31.75	7/16"
No.91	Subaru	A-161 (EJ18/20/22)	4	130.45	55	23	21.375	21.375	3/8"
No.91d		(EJ18/20/22)	4	130.45	55	23	21.425	21.425	3/8"
No.91e		EJ18/20/22 -I	4	130.45 (130.5)	55	23	21.425	21.425	3/8"
No.230	Suzuki	CC123mm	4(5)	123	45	18	22	22	5/16"
No.231		CC120mm	4	120	45	19	22	22	5/16"
No.110b		AUT(Hayabusar)	4	119.5	45	20	19.95	19.8	5/16"
No.438		Suzuki-1	4	138	45	20	23.8	18.8	3/8"
No.344		13G	4	115.5	41	19	22	22	5/16"
No.348		F6A	3	109.8	41	20	21.95	21.95	5/16"
No.349		K6A	3	113.9	41	20	21.95	21.95	5/16"
No.110		AUT(Hayabusar)	4	119.5	41	20	21	21	5/16"

Other parts:
Offering 40Cr connecting rod, 20Cr connecting rod, crankshaft, camshaft and so on.

Service
1) Offering sample, drawing & material analysis before producing;

2) Quality guarantee: three years;

3) Making logo upon customers' needs;

4) Changing any size upon customers' needs;

5) Developing new models according to samples or drawings;

Package & Shipping
1) Neutral packing, XYTOSAN packing or upon customers' needs;

2) Delivery time: about 35 days for producing;

3) By sea or air(TNT, DHL, FEDEX, UPS, etc.).
