Tag: Heavy Loading Low Bed Semi-trailer For Transporter Machinery
CONTACT:
Miss Sherry
Mob +86 18553205201 / +86 15166661590 @@@ ~ Please see below specifications for your first reference.
We could customize as your actual demands ~!
More details contact me freely my dear friend, waiting for your call ~!

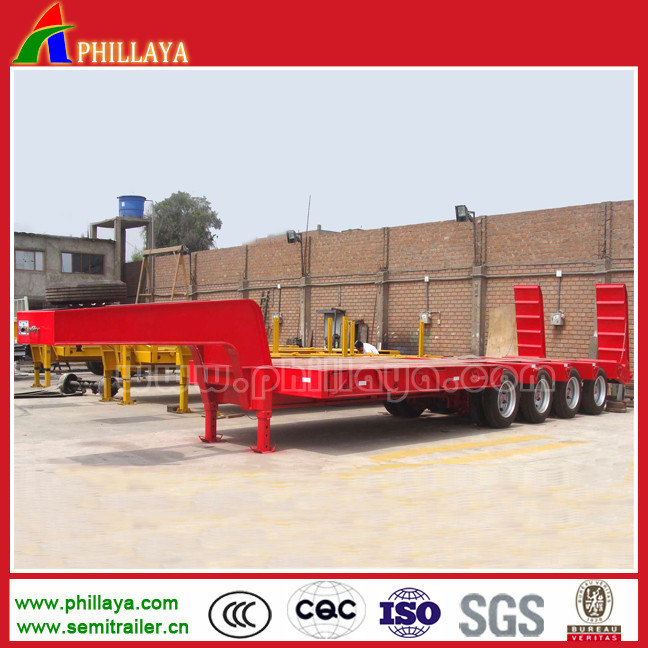

30-100T LOWBED SEMI TRAILER
|
| Model | Rated Capacity | Axles | Tires | Tire Model | Tare Weight |
| PLY8400GYY | 30 T | 2 | 8 | 825R20 | 7.5T |
| PLY8401GYY | 60-80T | 3 | 12 | 10.00R20 | 11T |
| PLY8402GYY | 80-100T | 4 | 16 | 11.00R20 | 14T |
| |
| Place of Origin | Shangdong province, China |
| Color | Any color will be available |
| Rated Load | 30-100 Tons |
| Tare Weight | 9900 kg |
| Wheel Base | 1310 (mm) |
| Place of Origin | Shangdong province, China |
| Color | Any color will be available |
| Rated Load | 30-100 Tons |
| Suspension | Heavy Duty Leaf Spring |
| Front/Rear Overhang | 1950 mm |
| Outside Dimensions | 11000-19000x3000x1500 (mm) (LxWxH) |
| Material of the Main Beam | Q345B/ST52-3 manganese plates, automatic submerged arc,
Main-beam Height 500mm,
Lower flange: 20mm
Upper flange: 20mm
Mid Web: 12mm |
| Usage | For heavy duty machine, as transformer, crane, excavator transportation. |
| Brake System | Dual Lines Braking System With Automatic Air Chambers |
| Brake Air Chamber | Four double and two single chamber |
| Electrical System | 24V, 7core socket, lights according to European standards. |
| Floor | 3mm-5mm management plate |
| Tool Box | 1 box of standard tools |
| Spare tire carrier | 2 sets |
| Color and Logo | Depends on the buyer's requirement. |
| The traction pin | 2' & 3.5' inter-changeable |
| Pin Height | According to the height of the tractor saddle. |
Others: Other size/dimension or configurations will be available by customeri-zation.
|
FUNCTIONS1. Usage~! Transportation for construction or logistic companies, such as excavator, digger, mover, crane, and building materials.2. Dimensions~! From 10 meters to 60 meters, we will manufacture it according to your needs. 3. Axle ~! Fuwa / Bpw with different tonnages by your need with price differences.4. Suspensions~! Air suspension, mechanic (leaf spring suspension), bogie suspension, etc5. Loading deck~! Can be concave beams, tire appeared cover, totally flatbed, or extendable6. Loading ramp~!Can be rear end designed, or front loading ladders, which can be mechanic spring. Ladders and hydraulic loading ramps by different needs.
OUR FACTORY Phillaya international trading Co., Ltd, a special vehicle manufacturing corporation with the professional experience more than 15 years, certified by the Chinese government manufacture.
Majored in semi trailer, special vehicle manufacture, our products are mainly exported to Philippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries
SERVICE WE PROMISED FOR EACH ITEM 1. 3C&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color & Logo Available
4. The Product Dimension + Specifications Can Be Designed As Your Needs TRANSPORTATION We have below three ways to transport your products,depending the dimension of trailer.We will be your side to help you choosing the best way to save your cost!! 1. By 40' or 40HQ container
- few sets could be loaded into one 40' saving cost.
2. By Bulk Ship or Roro Ship
- we have long-term cooperated freight forwarder,you are highly guaranteed the safety and best price.
WELCOME TO VISIT OUR FACTORY, WE SHALL PICK YOU UP FROM THE AIRPORT.
WISH THE LONGNEW MUTUAL BENEFIT & BUSINESS RELATIONSHIP CAN BE BUILT BY OUR JOINT EFFORTSM's Sherry
