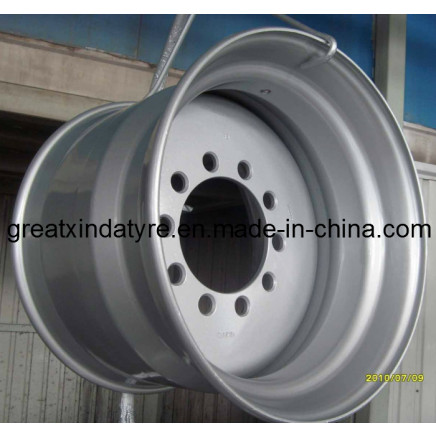

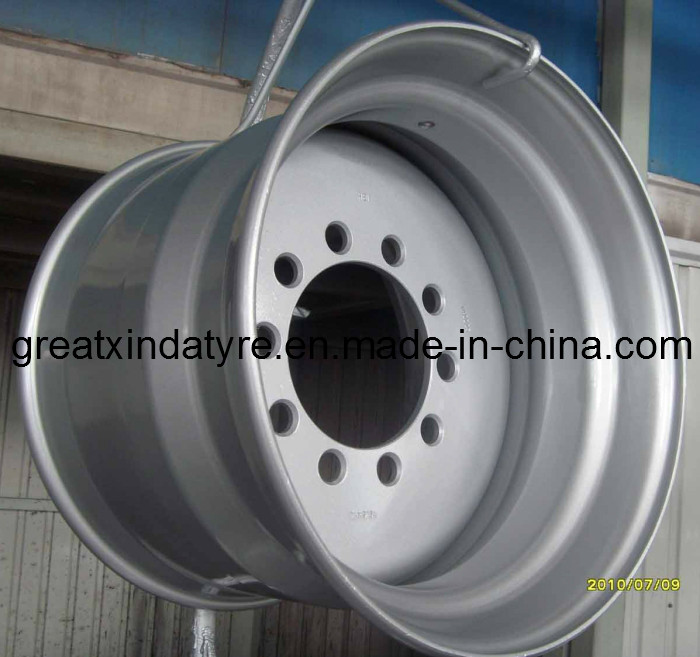

High Quality Truck Steel Wheel (19.5X14.00)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 X40"HQ

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Packing:Plastic Paper or Bulk

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:19.5x14.00

Material:Steel

Type:Wheel Rim

Drive Wheel:4WD

Wheel Hub Diameter:16-20"

Finishing:Cathodc Electrodephoretic Coating

Wheel Accessories:Wheel Spoke

Certification:ISO, TUV

Certificate:Inmetro Soncap ISO9000 Ts16949

Color:Siliver, White, Grey etc

Export Markets:Global

Additional Info.

Packing:Plastic Paper or Bulk

Standard:INMETRO

Origin:Shandong China

HS Code:870870

Production Capacity:1, 000, 000 PCS/Year

Product Description

High Quality Truck Steel Wheel (19.5x14.00)
Type: Tubeless
Suitable Tyre: 445/65R19.5
Disc thicknee: 14mm
Rim thickness: 7mm

Tubeless Wheel Size:
11.75x22.5, 9.75x22.5, 9.00x22.5, 8.25x24.5, 8.25x22.5
8.25x19.5, 7.50x19, 5, 6.75x19.5
6.75x17.5, 6.00x17.5, 5.25x17.5

Tube Wheel Size:
8.50-24
8.50-20, 8.00-20, 7.50-20, 7.00-20, 6.50-20
6.50-16, 6.00G-16, 5.50F-16

NOTE: THE SPECIFICATION IS ADJUSTABLE.
ALL SIZE OF TRUCK STEEL WHEEL AVAILABLE. AND ALL THE PAREMETERS CAN BE CHANGED AS YOUR REQUIRED.
SHOULD YOU HAVE ANY QUESTIONS, PLS DO NOT HESITATE TO LET ME KNOW.

19.5x14.00	No. of Bolt Holes	Bolt Hole DIA.	Bolt Hole Type	P.C.D.	C.B.D.	Offset	Tyre Size
1	8	21.5/24.5	SR16/1X45°	275	221	0	18 R 19.5 445/65 R 19.5
2	8	25.4/26	SR18/1X45°	275	221	120
3	10	26	1X45°	285.75	220	0
4	10	26	1X45°	335	281	0
5	10	27	SR18	335	281	120
