Hongdu Ebike En15194 Approved Electric Bicycle with Low Step (TDF01Z-603)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

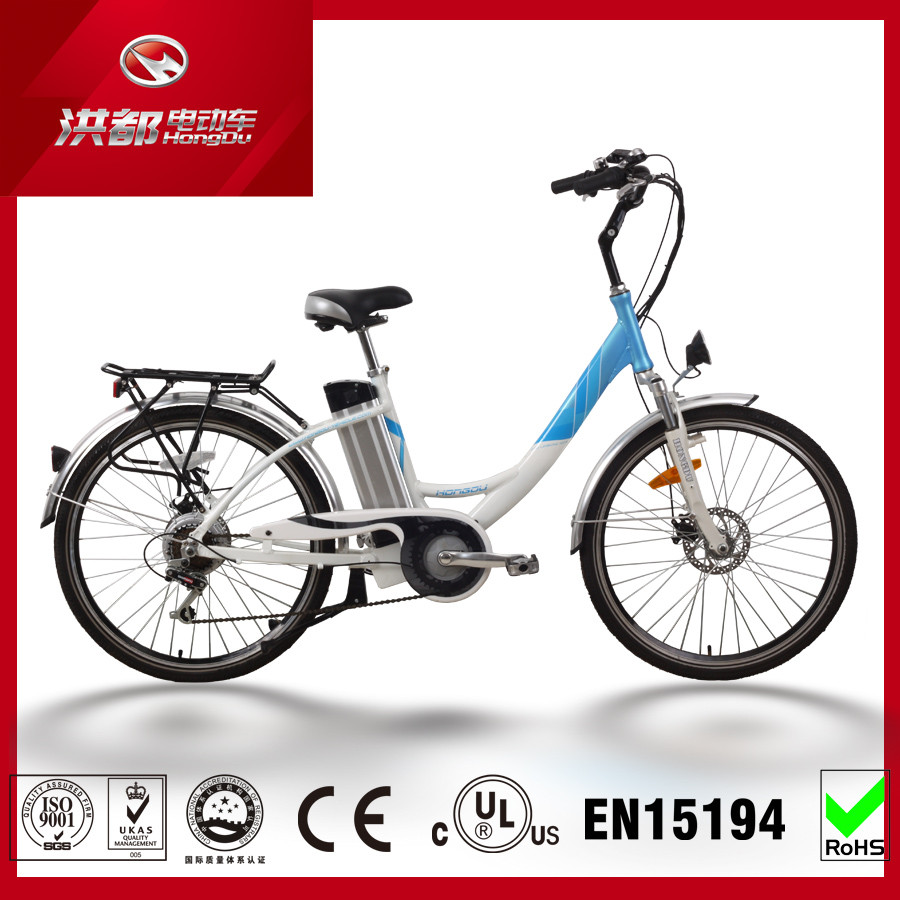

Hongdu Ebike En15194 Approved Electric Bicycle with Low Step (TDF01Z-603)

More Views

Hongdu Ebike En15194 Approved Electric Bicycle with Low Step (TDF01Z-603)

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
10.0	US $ 470/ Piece

Price:US $470.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Dec 05, 2014 To Mar 05, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:TDF01Z- 603

Running Distance:<45KM

Motor:Brushless

Brake:F/V R/Servo or F/R Disc

Max Speed:20-40km/h

Battery Type:Lithium Battery

Frame Material:Aluminum/Alloy

Voltage of Battery:36V

Power:200-250W

Certification:CE

Maximum Loading Capacity:75-120kg

Wheel Hub:Alloy Hubs

Wheel Size:26"

Folded:Unfolded

Charging Time:<6h

Part:Battery

Color:Optional

Logo:Customized

Export Markets:Global

Additional Info.

Trademark:hongdu

Packing:CTN

Standard:En15194

Origin:China

HS Code:8711901010

Production Capacity:50, 000pcs/year

Product Description

En15194 Electric Bicycle (TDF01Z-603)
Features:
1) Frame: Aluminum alloy(Brush)
2) Front fork: ZOOM Suspension
3) Motor: 250W brushless
4) Derailleur: Shimano, 7-speed(Tourney)
5) PAS and grip accelerator
6) Battery: 36V, 10Ah Lithium battery
7) Wheel size: 26", reflection tyre
8) Brake: F/R disc or F/V R/Servo
9) Speed: 0 - 24km/h
10) Full charge distance: 60km by pedal

Pakcing: Carton dimensions: 160 X 28 X 78cm

N. W.: 25kg
G. W.: 35kg

Conveyance:
Qty/20' GP: 81 units

Qty/40' GP: 174 units

Hongdu Ebike En15194 Approved Electric Bicycle with Low Step (TDF01Z-603)

Specification	TDF01Z-603
Frame	Alloy Aluminum
Fork	Zoom, Suspension
Handbar&Stem	Zoom, Alloy Aluminum
Wheel&Rim	26", Alloy Al. Rim
Tyre&Tube	26", Kenda,
Derailleur	Shimano, 6&7 Speed
Brake	F-V/Disc, R-Servo/Disc Brake
Mudguard	Alloy Plastir or Aluminum
Motor	250W
Controller	36V15A,
Display	LED (3speed Optional)
Throttle	Wuxing(Optional)
Max Loading	95KG
Rear Rack	Aluminum
Saddle Post	Folding Steel & AL. Suspension
Battery	36V10AH Lithium
Range	45KM(PAS)
Speed	0-25KM/H
Charging Time	6 Hours
Net Weight	25KG
Gross Weight	30KG
Packing	Carton, 81pcs/20GP
