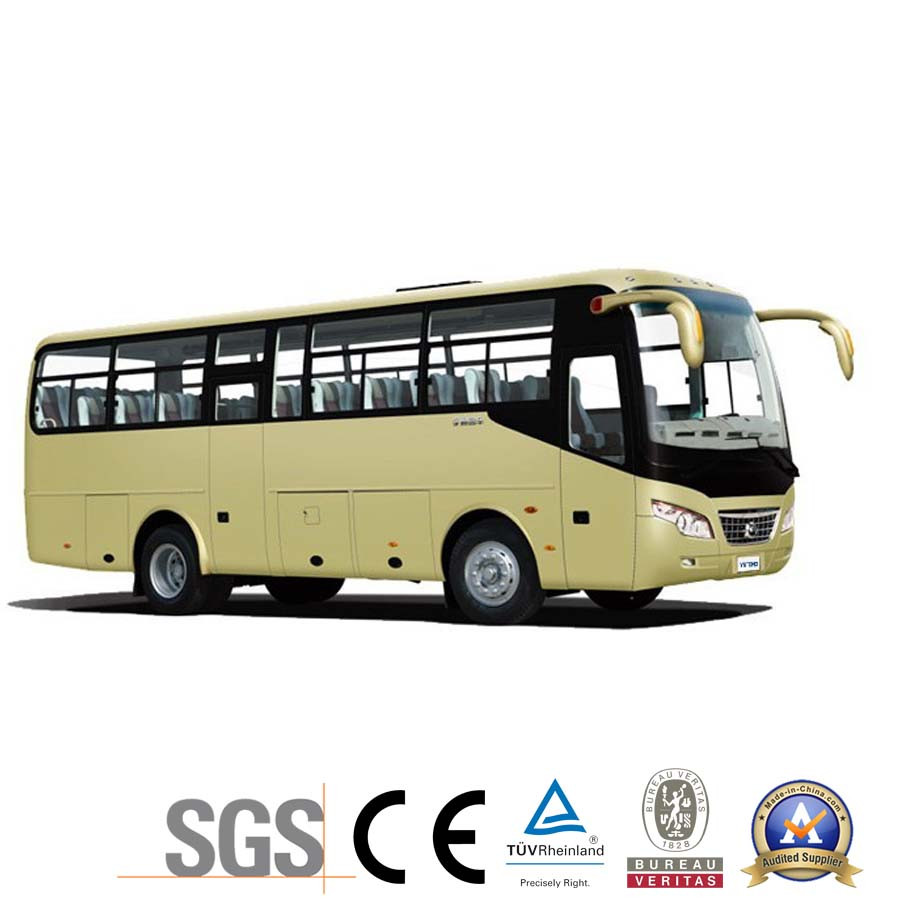

Hot Sale Camc Long Coach Bus (ZK6932D1)

More Views

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 9999.0-89999.0/ Piece

Price:$9999.0 - $89999.0 / Piece

Trade Terms: FOB, CFR, CIF, CIP

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Jul 24, 2015 To Oct 24, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Model NO.:ZK6932D1

Style:Sitting

Emission Standard:Euro 2

Certificate:CCC

Transmission Type:Manual

Engine Capacity:4-6L

Fuel:Diesel

Seats:>50

Size:Large

Structure:Single-Deck

Condition:New

Products Name:Long Coach Bus

Model:Zk6932D1

Driving:Right or Left Possible

Export Markets:Global

Trademark:CAMC

Packing:Nude

Standard:SGS GOST

Origin:China

Production Capacity:3000 PCS/Year

Long coach supper Luxurious Bus (ZK6107H),HOT SALE ESPECIALLY IN AFRICA
LUXURIOUS BUS, You can oder for your own design and specifications.

ZK6932D1 TECHNICAL SPECIFICATION
Overall Dimensions
Length (mm)	9300
Width (mm)	2450
Height (mm)	3480
Interior height (mm)	1900
Wheel base (mm)	4500
Tread Front/Rear (mm)	2020/1800
Front/Rear Overhang (mm)	2050/2750
Min. Ground clearance	220
Approach/Departure Angle(o)	12/11
Brake distance (v=30km/h)	? 10m
Kerb weight (kg)	8600
Front/Rear Axle (kg)	4550/4050
Gross vehicle weight (kg)	11990
Front/Rear Axle (kg)	5240/6750
Max. Speed (km/h)	110
Max. Grade ability (%)	30
Min. turning diameter (m)	20
Fuel Tank Capacity (L)	260
Luggage compartment(m 3 )	5.5
Engine
Arrangement of Engine	Six cylinders, water cooling, charged air coolant, turbo charged
Model	Cummins EQB210-20
Displacement (cc)	5883
Position	Front mounted
Max. Output (kw/rpm)	155/2500
Max. Torque (N.m/rpm)	700/1400~1600
Type of Fuel	Diesel
Emission Standard	Euro II
Chassis
Model	ZK6760CD
Clutch	SACHS GMF395
Gearbox	QJS6-80
Suspension system	Leaf spring suspension
Retarder	KM DHZ12
Steering system	Integral power steering
Air condition	With AC
Braking system	Dual-circuit air braking; air release parking; ABS; automatic slack adjustor
Tire	295/80 R22.5 Tubeless Tire
Electric system	24v Single wire; Minus earth 24V
Body
Body structure	Semi-integral body; Pre-stress stretched panel skin; full metal body
Inner trimming	Luggage rack, curtain
Door and door pump	Front pneumatic single door
Windows	Sliding windows
Seat	40+1 seats; all seats with belt
Audio and Visual system	Flash Disc 8GB, 2 LCD
Rear view system	Rabbit ear rear view mirror
Lamp	Integral head lamp, separate tail lamp
Others	Tool box
