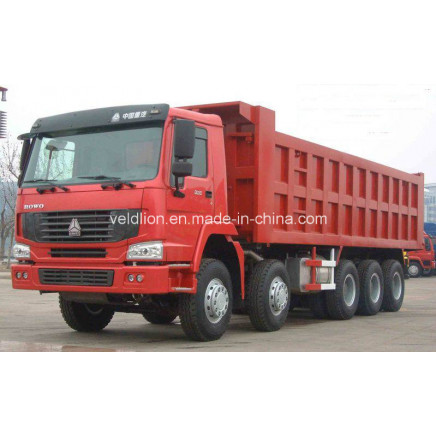

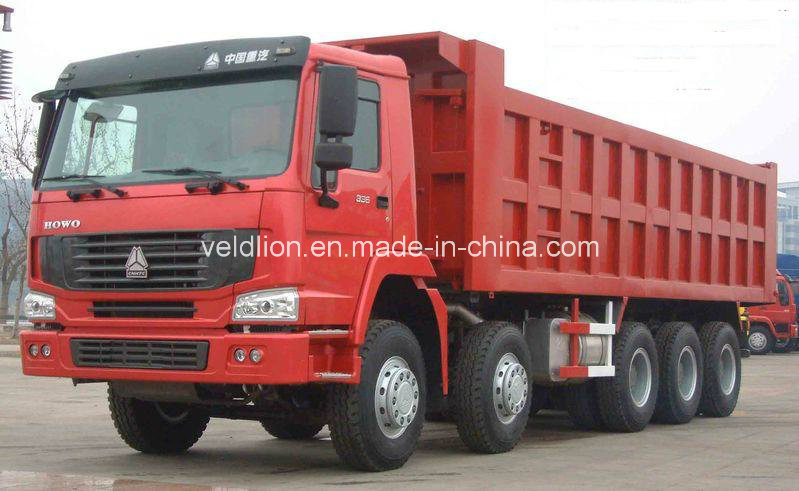

Specifications |
Tipper Driving Type 6x4 |
GVW 32000kg |
|
Model |
ZZ3257M3641 |
|
|
Engine |
Make: STEYR
Diesel: 4-stroke direct injection diesel engine
Engine model: WD615.87, Euro II emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 290 hp (213 Kw) at 2200 rpm
Maximum torque: 1160 Nm at 1300-1600 rpm
Number of cylinder: 6
Displacement: 9.726 I
Bore: 126 mm
Stroke: 130 mm
Compression ratio: 29.8 hp/I
Specific fuel consumption: 198 g/kWh
Engine oil filling quantity: 19 I
Cooling system filling quantity (long-term filling): 40 I
Thermostat with 71 ╟C opening begin
Single cylinder air compressor
Rigid fan |
|
|
Clutch |
Single-plate dry coil-spring clutch, diameter 420 mm, hydraulically operating with air assistance |
|
Transmission |
QJ transmission, model 5S-150GP, synchromesh, 9 forward & 1 reverse
Ratio: 13.04 8.48 6.04 4.39 3.43 2.47 1.76 1.28 1.00 11.77╝ |
|
Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
|
Front Axle |
Steering with double T-cross section beam |
|
Rear Axles |
Pressed axle housing, single reduction with hub reduction and with differential locks between axles and wheels
Ratio: 5.73 |
|
Chassis |
Frame: U-profile parallel ladder frame with section of 300x80x8 mm and reinforced subframe, all cold riveted cross members
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 12 leaf semi-elliptic springs with bogie springs
Fuel tank: 200 I capacity with locking fuel cap, fitted to the off side of the chassis
Spare wheel |
|
Steering |
ZF8098, hydraulic steering with power assistance
Ratio: 26.2 |
|
Brakes |
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS |
|
Wheels & Tyres |
Rims: 8.5-20, 10 hole-steel
Tyres: 12.00-20 tube
Option: 12R20 tube, 12.00-24 tube, 12R24 tube, 12R22.5 tubeless |
|
Driver's Cab |
Standard cab, all-steel forward control, 70╟ hydraulically tiltable to the front, 2-arm windscreen wiper system with three speeds, laminated
windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and
ventilating system, exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts, adjustable steering wheel, air horn,
with 4-point support fully floating suspension and shock absorbers |
|
Electrics |
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 28 V, 1000 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
|
Instrument Panel |
Active check control with indicators, with this instrument the daily manual checks on the vehicle and combined indicators of compressed air
pressure, coolant temperature, engine oil pressure and battery charging |
|
Dimensions in mm |
Wheel base
Front wheel track
Rear wheel track
Front overhang
Rear overhang
Approach angle (╟)
Departure angle (╟)
Overall length
Overall width
Overall height
Cargo body size |
3625 + 1350
1934
1816
1500
1554
29
45
8214
2496
2907
5600 x 2300 x 1500 |
|
Weight in kg |
Permissible loading capacity
Chassis dead weight
Gross vehicle weight
Front axles loading capacity
Rear axles loading capacity |
20000
13060
32000
6500
2 x 13000 |
|
Performance |
Maximum driving speed (km/h)
Maximum gradeability (%)
Minimum ground clearance (mm)
Minimum turning circle (m)
Fuel consumption (1/100 km) |
75
40
298
20
28 |
|
|
|
|
|
The manufacturer reserves the right of technical alternation/change for better improvement without prior notice! |
