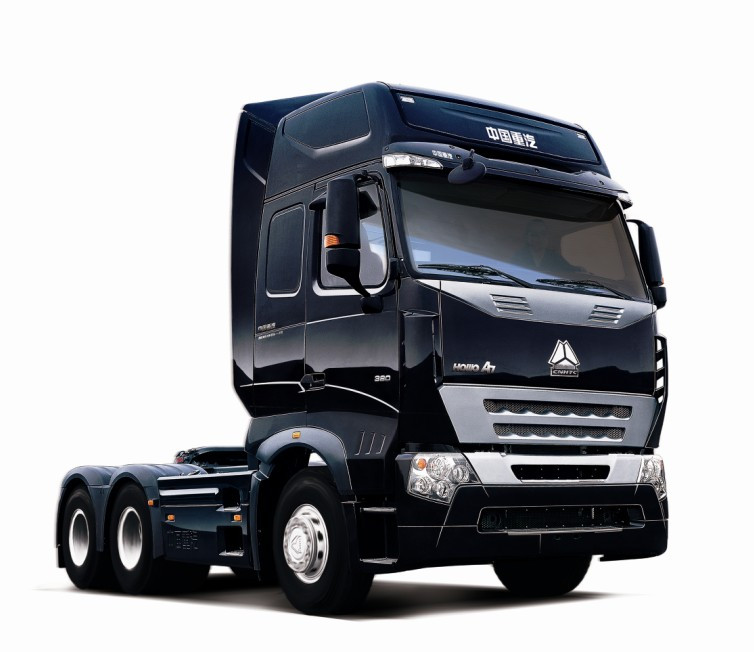

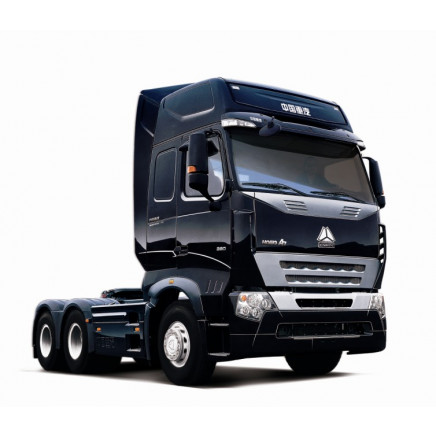

HOWO A7 6*4 Tractor Truck

More Views

HOWO A7 6*4 Tractor Truck

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 31000.0-40000.0/ Piece

Price:$31000.0 - $40000.0 / Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Sep 07, 2012 To Mar 06, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Transmission Type:Manual

Power:Diesel

Load Capacity:30T

Emission Standard:Euro 2

Drive Wheel:6WD

Seats:2 Seats with 2 Beds

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck Type:Tow Truck

Type:Tractor Truck

Export Markets:Global

Additional Info.

Trademark:HOWO A7

Packing:in Bulk

Standard:EuroII or Euro III

Origin:China

HS Code:8701200000

Production Capacity:20000 Units Per Year

Product Description

HOWO A7 6*4 TRACTOR TRUCK
Brand: Sinotruk-HOWO A7
Cab: A7-G/p, 2 seats with 2 beds or 1 bed, electric winodw and mirrors
Engine: 371HP
Transmission: 10 forward and 2 reverse
Front axle: HF7/HF9, loading capacity: 7000kgs/9000kgs
Driving axle: ST16/HC16, loading capacity: 2*16000kgs
Tire: 12.00R20 12R22.5 315/80R22.5
This tractor truck can be used to carry 40' container semi-trailer, low-bed semi-trailer, dump trailer and so on.

Product			HOWO 4x2 tractor head		Model				ZZ4187M3511W
Note			The specification is for reference only; the actual configuration will be subject to the contract.
Complete vehicle	Dimension	Overall dimension (mm) LWH		611024962958		Clutch	Model			?420
							Type			Single, dry plate
		Wheel base (mm)		3500		Gear box	Model			HW 15710
							Type			manual
		Wheel tread (front/rear, mm)		2022/1830			Gears			10 forward, 2 reverse
							Ratio			14.28

		Overhang (front/rear, mm)		1500/1110
		Approach/departure angle (°)		16/42		Steering	Model			ZF 8098
	Weight	Gross vehicle weight(kg)		18000 (chassis 7180)			Type			Integral power steering
						Front axle	Model			HF7 hub
							Loading capacity (kg)			7000
	Max. speed (km/h)			102		Rear axle	Model			HW1667
Chassis	Number of axles			2			Loading capacity (kg)			13000
	Tire			12.00R20
	Number of tires			6+1			Ratio			3.73
Cab	Model			HW76, lengthened, two seats, one bed		Braking system	Service brake			Dual circuit compressed air brake
	Number of seats			2			Parking brake (emergency brake)			Spring energy, compressed air operating on rear wheels
	Air conditioner			included			Auxiliary brake			Engine exhaust brake
Engine	Type			In-line, 6 cylinder, water-cooling, turbo-charging, EFI, diesel			ABS			Optional
						Suspension	Front	Type		Non-independent
	Model			WD615.87				Number of leaf spring
	Displacement (ml)			9726			Rear	Type		Non-independent
	Rated power (hp/rpm)			290/2200				Number of leaf spring
	Emission standard			Euro 2		Retractor	Rated hauling capacity (kg)			34400
							Tractor pin diameter (mm)			50
