IGBT Inverter Welding Machine

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 70.0-80.0/ Piece

Price:$70.0 - $80.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: T/T

Price Valid Time:From Oct 05, 2013 To Jan 05, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:MMA-140it/160it/180it/200it

Certification:CE

Export Markets:Global

Additional Info.

Trademark:PONEY

Packing:Color Box, as Your Design

Standard:30*12*23cm

Origin:Wenling, Taizhou City

HS Code:85153900

Production Capacity:6000 PCS Per Month

Product Description

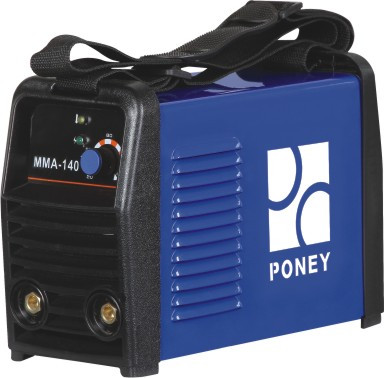

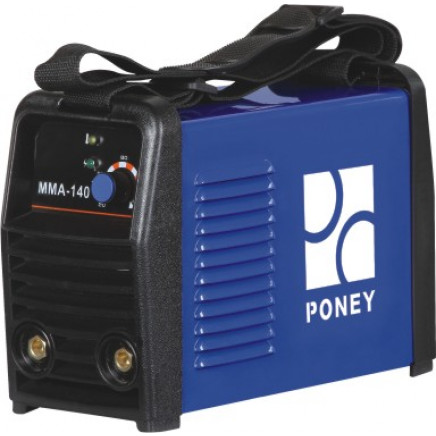

MMA DC inverter welding machine(IGBT)
FEATURES:
1. High efficiency.
2. Stable performance, automatic voltage compesation capablility.
3. Auto drawing arc, thrust circuit control stable arc, less splash.
4. Light, compact, easy to operate.

ACCESSORIES:
1.1.8m welding cable with electrode holder 1 piece
2.1.8m earth cable with clamp 1 piece
3. Hand-held shield with glass 1 piece
4. Hammer/brush 1 piece

Model	MMA-160	MMA-180	MMA-200
Main Voltage	1PH 230V	1PH 230V	1PH 230V
Frequency	50/60Hz	50/60Hz	50/60Hz
Rated Input Capacity	5.3KVA	6.2KVA	7.1KVA
Power Factor	cos?0.93	cos?0.93	cos?0.93
Max No-load Voltage	60V	60V	60V
Current Range	20-160A	20-180A	20-200A
Rated Duty Cycle	60%	60%	60%
Usable Electrode	2.5-4.0mm	2.5-4.0mm	2.5-4.0mm
Insulation Class	H	H	H
Protection Degree	IP21S	IP21S	IP21S
Dimension	44�26.5�27.5CM	44�26.5�27.5CM	44�26.5�27.5CM
Weight	7.2KG	7.2KG	7.8KG
