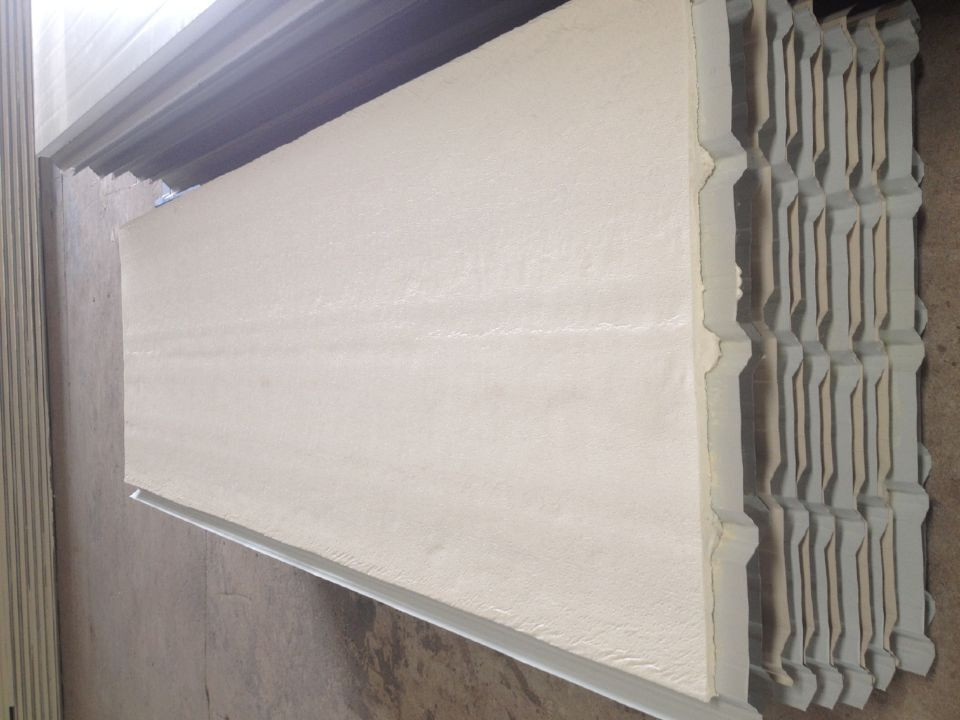

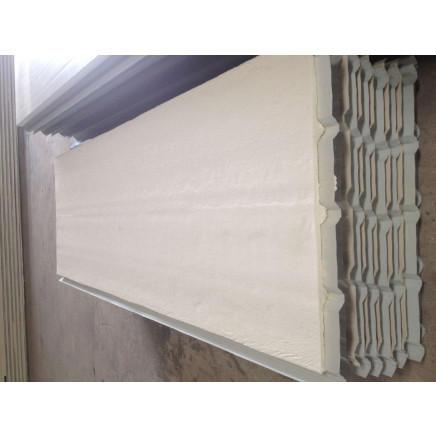

Insulated PU Sandwich Panels 20mm

More Views

More than 10 available

Availability: In stock

Price:$12.4 - $38.5 / Meter

Min. Order (Meter)	Unit Price
1000.0	US $ 12.4/ Meter
10000.0	US $ 38.5/ Meter

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 16, 2015 To Nov 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Model NO.:830mm width x 20mm Thickness

Customized:Customized

Certification:CCC, SGS

Feature:Environmental, Fireproof, Light Weight, Metal Panel

Grade:7

The Interlayer Thickness:50mm-200mm

Type:950V/1150V/960V

Delivery Time:20-30days

Lenght:Less Than 11.8m

Material:Metal

Color:Ivory White

Export Markets:Global

Trademark:Shengxin JKS

Packing:Seaworthy, as Customer?s Requirement

Standard:SGS BV

Origin:Xiamen, China

Production Capacity:10000meter/Month

The Special Features of SWE Roof Panels

Standard Width(mm)	1000
Length(mm)	3000?L?15000
Standard Overall Thickness(mm)	50
Other Overall Thickness(mm)	50 75 100
Outer Face(mm)	0.5 or above as options
Inner Face(mm)	0.4 or above as options
Core Material	PU
Average Density of Core(kg/m3)	40±2
Unit Weight of 50mm thickness(kg/m2)	10.90
Thermal Conductivity of Core(w/m . k)	0.022

The Special Features of SWE Wall Panels

Standard Width(mm)	1000
Other Width(mm)	500 1000
Length(mm)	3000?L?15000
Standard Overall Thickness(mm)	50
Other Overall Thickness(mm)	50 75 80 100
Outer Face(mm)	0.5 or above as options
Inner Face(mm)	0.4 or above as options
Horizontal Joint Width(mm)	4
Vertical Joint Width(mm)	Aluminium strip 70
Core Material	PU
Average Density of Core(kg/m3)	40±2
Unit Weight of 50mm thickness(kg/m2)	10.57
Thermal Conductivity of Core(w/m . k)	0.022

The Special Features of SWE Cold Storage Panels

Standard Width(mm)	1000
Length(mm)	3000?L?15000
Other Overall Thickness(mm)	50 100 150 200
Outer Face(mm)	0.5 or above as options
Inner Face(mm)	0.4 or above as options
Joint Width(mm)	4
Core Material	PU
Average Density of Core(kg/m3)	40±2
Unit Weight of 50mm thickness(kg/m2)	10.45
Thermal Conductivity of Core(w/m . k)	0.022
