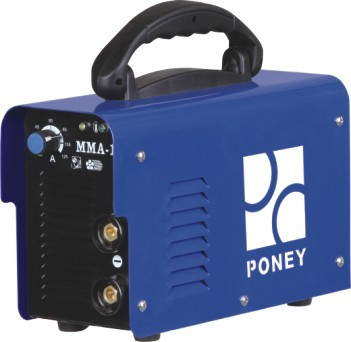

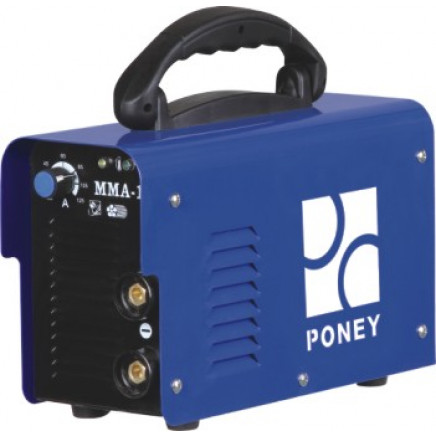

Inverter IGBT Mini Welding Machine

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:200 Pieces

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T, Western Union

Trademark:PONEY

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:MMA85, 105, 125, 145

Type:DC Welder

Current:Direct Current

Output Current Range:20-80/100/120/140A

Export Markets:Global

Additional Info.

Trademark:PONEY

Packing:Carton

Standard:CE, ISO, GS, ROHS

Origin:Zhejiang, China

HS Code:85153900

Production Capacity:1000PCS/Week

Product Description

One PCB IGBT Mini Welder
Features:
1. Smart mini welder is designed to provide user with convenient, efficient and quality welding solution.
2. IGBT technology, compact, easy to carry
3. Engertg saving and durable, current can be adjusted. High duty cycle.
4. Excellent anti-static, thermal and over-load protection.
5. Easy arc start and strong compensation capability high frequency, fan cooled.
6. Supplied with eletrode holder, earth clamp, face maskhammer/brush.
7. Suitable for welding carbon steel, alloy steel, cast iron, stainless steel, etc.

Inverter IGBT Mini Welding Machine

ITEM/MODEL	MINI-85	MINI-105	MINI-125	MINI-145
Power voltage(V)	230	230	230	230
Frequency(HZ)	50/60	50/60	50/60	50/60
rated input capacity(KVA)	2.5	3.2	3.9	3.9
No-load voltage(V)	60	60	62	62
Output current range(A)	20-80	20-100	20-120	20-140
weleling fod(dia mm)	1.6-2.5	1.6-3.2	1.6-3.2	1.6-4.0
duty cycle(%)	60	60	60	60
power factor	0.93	0.93	0.93	0.93
cool type	fan	fan	fan	fan
weight(KG)	1.8	1.8	2	2
dimensions(cm)	208.613.8	208.613.8	208.613.8	208.613.8
