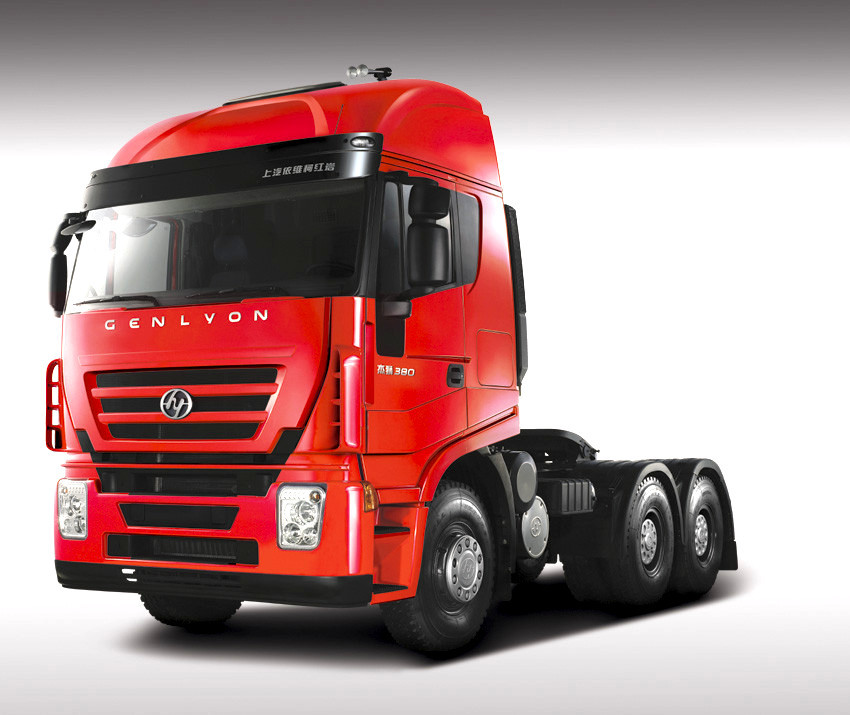

Iveco Genlyon Heavy Duty Tractor Head (CQ4254HTVG324V)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 42000.0-48000.0/ Piece

Price:$42000.0 - $48000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 09, 2015 To Apr 08, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:CQ4254HTVG324V

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 3

Drive Wheel:6ط4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT

Tire Design:Radial

Condition:New

Color:Red, Yellow, Silver, Blue etc

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:Saic-Iveco Hongyan

Packing:Nude Packing, Seaworthy

Standard:Euro 3/Euro 4 Emission Standard

Origin:Chongqing, China

HS Code:87012000

Production Capacity:50000 Units/Year

Product Description

1. Saic-Iveco Hongyan Genlyon tractor truck;
2. Adopt Italian advanced techonology;
3. Flexible sales system, competitive price;
4. Excellent quality, good after services and mature spare parts system.

TECHNICAL SPECIFICATION
NO.	SPECIFICATION	PARAMETER	NOTE
1	Model	CQ4254HTVG324V
2	Cab	Genlyon Cab-Left Hand Drive, high roof, Double Bunk, with AC	Yellow/red/white
3	Drive	6ط4
4	5th Wheel Rated Payload(kg)	16,600
5	Kerb Weight(kg)	8,270
6	Gross Vehicle Weight(kg)	25,000
7	Hualage Weight(kg)	40,000
8	Overall Dimension(mm)	6,718ط2,500ط3,797(LWH)
9	5th Wheel Diameter(mm)	50 (2.5inch)
10	Max Speed(km/h)	95
11	Wheelbase(mm)	3,225+1,350
12	Engine	Cursor9	Euro III
13	Engine Output(HP)	380
14	Max. torque/speed (N.m/(r/min))	1500/1100-1700
15	Gearbox	12JSD180TA	Fuller technology
16	Steering gear	ZF variable ratio hydraulic steering gear
17	Drive Axle	H6A Single reduction driving axle
18	Tyre	315/80R22.5, 12.00R20 also available
19	Oil Tank	400L Aluminum-Magnesium Alloy
