Jacking System for Large Tonnage Chassis Assembling

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 100000/ Piece

Price:US $100000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Mar 04, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LTL

Type:Floor Jack

Structure:Hydraulic Jack

Capacity (Load):41-50T

Power Source:Electric

Max Height:>400mm

Certification:ISO 9001:2008

Condition:New

Export Markets:Global

Additional Info.

Trademark:Haolida

Packing:Export Plywood Case

Standard:ISO

Origin:Qingdao, Shandong

HS Code:8425429000

Production Capacity:2

Product Description

General Introduction

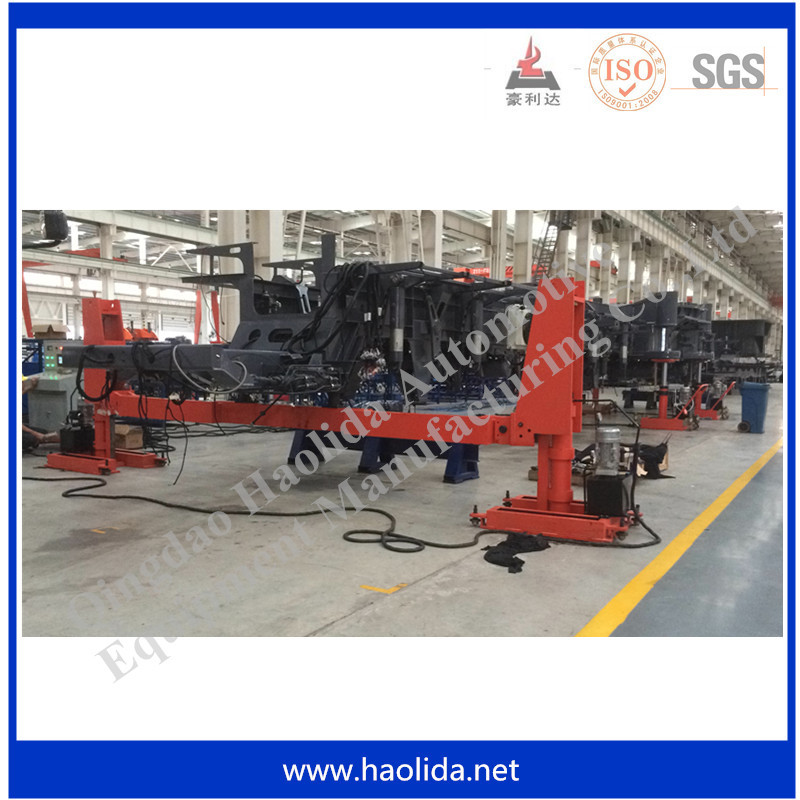

Large-tonnage Chassis Assembling Jacking System is mainly used for assembling and maintenance work of special engineering vehicle chassis. It is composed of six jacks, it can be used with 4 units together, it is controlled by a control cabinet, and can be wireless remote controlled.

Technical parameter

Lifting force: front jacks- 400KN/group; middle, back jacks-400KN/group
The minimum working height: front jacks-400mm; middle, back jacks-900mm
The maximum working height: front jacks-1250mm; middle back jacks- 1550mm
Rising speed: front, middle, back 0-350mm/min(adjustable)
Descending speed: front, middle, back 0-750mm/min(adjustable)
The distance between baseboard and ground when the middle and back jacks are no-load: 6-8mm
Rated working pressure of hydraulic units: front jacks-16Mpa; middle and back jacks: 16Mpa
Power source/frequency: 380V 50HZ
Oil pump motor power: 2.2KW
Working voltage of solenoid directional valve: 220V
Limit switch voltage: 24V DC
Signal generator voltage: 24V DC
Effective working distance of remote control: 50M
Remote control battery: 5#x2x1.5V
Overall sizes( Length x Width x Height)

          Front jacks: 1200�800�1260mm (not including the front beam)
          Back jacks: 1200�630�900mm
          Control cabinet: 800�650�1400mm
Jacking System for Large Tonnage Chassis Assembling
