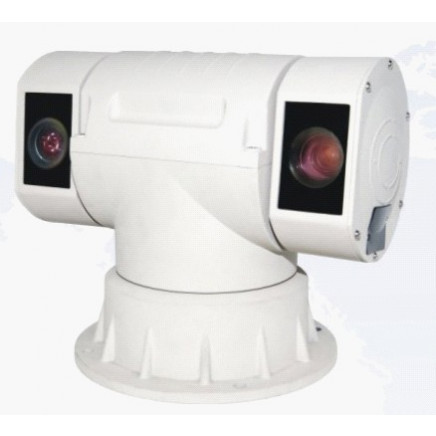

Laser Night Vision PTZ Speed Dome Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:EXW

Payment Terms:T/T

Trademark:OEM/TOYANI

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:TeD89-27-400

Technology:Pan / Tilt / Zoom

Style:Pan/Tilt

Type:Car Camera

Sensor:CCD

Horizontal Resolution:650tvl

Kind:Autofocus Lens

Feature:Waterproof / Weatherproof

Image Sensor:1/3" Sony CCD

Focus Length:4.8~105.6mm

Communications:RS-485, Pelco D, Pelco P

OSD.:Full-Screen Chinese/English Menu

Special Function:Awb, Wdr, Mask, Dnr, Strong Light Inhibition

Mater:Aluminum Shell, Waterproof IP66

Export Markets:Global

Additional Info.

Trademark:OEM/TOYANI

Origin:China

HS Code:8525801390

Production Capacity:1000PCS/Week

Product Description

Feature:

400m IR Laser night vision intelligent PTZ is a high-end intelligent monitoring product, integrated of optical, mechanical, electrical and images. Its technical including:
> Adopts self-developed 1/3 "CCD 650 TVL/720P/1080P digital automatic high-speed focusing module;
> Miniaturization, non-spherical, high multiples electrical zoom lens series (covering 600000 Pixels, 1.3 million Pixels);
> Laser synchronous zoom filling light technology;
> Long distance low consumption 400M super homogenization IR laser source technology;
> High-precision stepper motion technology;
> Laser device protect technology.

Model No	TeD89-27-400
Image Sensor	1/3" Sony CCD
Signal Model	PAL/NTSC
Horizontal Resolution	650TVL
Effective Pixel	PAL: 976(H)582(V) NTSC; 976(H)494(V)
Minimum Illumination	0LUX, Color to B/W, IR sensor, IR-CUT
S/N Radio	? 60dB(enhanced)
Backlight Compensation	on/off /strong light Optimizer
White Balance	Auto/Manual
IRIS	Auto/Manual
Electronic Shutter	PAL: 1/50~1/10000s NTSC: 1/60~1/12000s
Focus Length	4.8~105.6mm
Optical Focus	27X
Focus	Auto/manual, take high-performance DSP to realize complete digital and ultra-high speed focus function
Presets	256
Pattern Track	4 groups, each can record 200 actions
Tour Track	every group have 16 presets can join cruise, can setting the presets' residence time
Other Scan	support horizontal scan , deuce area scan , scan random
Rotation Range	horizontal 360° unlimited rotation, vertical 180° , auto reversal
Rotation Speed	horizontal : 240° /s vertical : 160° /s
Communications	RS-485, PELCO D, PELCO P
OSD.	Full-screen Chinese/English menu
Special function	AWB, WDR, MASK, DNR, Strong light inhibition
Temperature	Built-in
Laser Lamp Distance	400m, synchronized camera angles adjust the laser angle 2° ~60° at night.
Power Supply	DC12V/4A
Mater	Aluminum shell , waterproof IP66
Work Environment	-20º C~+50º C(Select temperature control accessories), less than 95%RH
