LiFePO4 12V 15ah Battery Pack

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

LiFePO4 12V 15ah Battery Pack

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$92.0 - $102.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 102/ Piece
500.0	US $ 100/ Piece
1000.0	US $ 92/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Jul 23, 2015 To Sep 25, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12015

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:High Discharge Rate

Size:Small

Accessories Type:Chargers

Rated Capacity:15ah

Standard Voltage:12V

Usage:Solar Power, Solar Panel, Energy Storage

Electrolyte:Lithum Iron Phoshate Battery

Standard Capacity:15ah

Rated Voltage:12V

Max.Charge Voltage:14.6V

Cut-off Voltage:10V

Standard Charge Current:1c

Max Continuous Discharge Current:1c

Peak Discharge Current:2c (10s)

Total Weight(Approx.):About 2.5kg

Dimension:Customized

Package:Plastic Case

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Customized Package

Standard:CE, UL, RoHS, SGS, TS/16949 and ISO9001-2008

Origin:Shenzhen China

HS Code:8507600090

Production Capacity:500000 Singles Cells/Day

Product Description

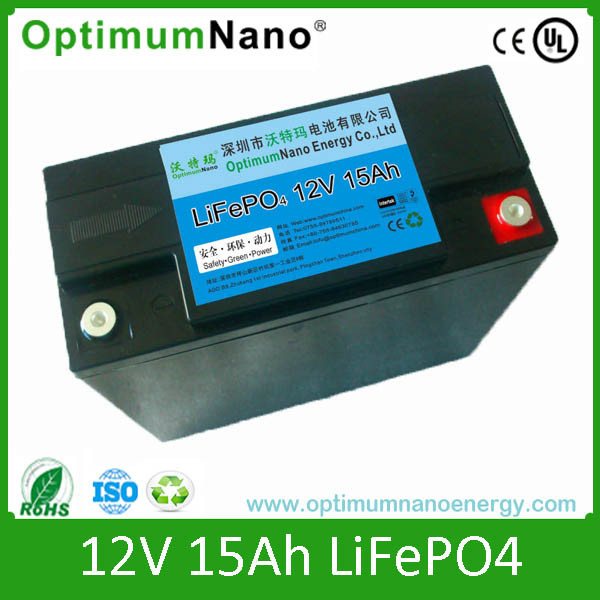

LiFePO4 12V 15ah Battery Pack

Specification

Item	General Parameter	Remarks
Single Cell Model	IFR-32650-3.2V-5Ah
Rated Voltage	12.8V	Working Voltage-3.2V
Max. Charge Voltage	14.6V	Single Ave. Charge Voltage-3.65V
Cut-off Voltage	10V	Single Ave. Discharge Voltage-2.5V
Rated Capacity	20Ah
Standard Charge Current	4A	0.2C
Max. Charge Current	20A	1C
Standard Continuous Discharge Current	4A	0.2C
Max. Continuous Discharge Current	20A	1C
Fast Charging Time	1h
Peak Current	40A	2C
Dimension	18176165mm
Weight	3.5Kg
Cycle Life	over 2000 times	with 1C Charge and Dicharge Rate, 25ºC Temperature
Package	Plastic Case
Market	North America, Europe, Asia, Africa.
BMS Included	Yes

Company Profile
1. Fouded in 2002, located in one of the most developed city, Shenzhen, in China, OptimumNano has 12-year experience in researching, developing, producing, selling LiFePo4 batteries.

2.  As the largest LiFePO4 Battery Manufacturer in China, With 47,000 square meter's workshop, OptimumNano's Daily Production will be up to 500,000 pcs.

3. The products passed CE, UL, RoHs, BV, TS, ISO9001, ISO4001 certificates.

Application

1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, electric scooter,e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment

Battery Features

1,Safety: The iron-lithium battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat.
2, Environmental Protection: Accredited with RoHS, without any hazardous and noxious substances.
3, Small in Volume and Light in Weight: The iron-lithium battery is about 1/2 the volume and 1/3 the weight of the lead-acid.
4, Strong Power: Able to discharge with 20C at 65. C max.
5, Steady Performance: High power output: 1C, continuous: 3C pulse for normal cells and 20 C for special design. Low self-discharge rate, less than 3% monthly.
6, Long Cycle Life: Over 2000 cycles with capacity staying at 80% min.
7, Lower Average Price per Year: The average price per year is 100 Yuan RMB less than the lead-acid battery for 5 years.
8, No Memory Effect: Always ready for charge and use, with no need to charge after a full discharge.
9, Wide Temperature Range: Available for use when the temperature ranges from -20° C to 70° C
10, Intelligent Charge System: Voltage of each cell can be detected. Each cell can be protected against overcharge, overvoltage, short circuit and overheat, and so that battery can be charged balance. The capacity of readout power volume: Each battery has 5LED lights to readout the capacity of the battery
