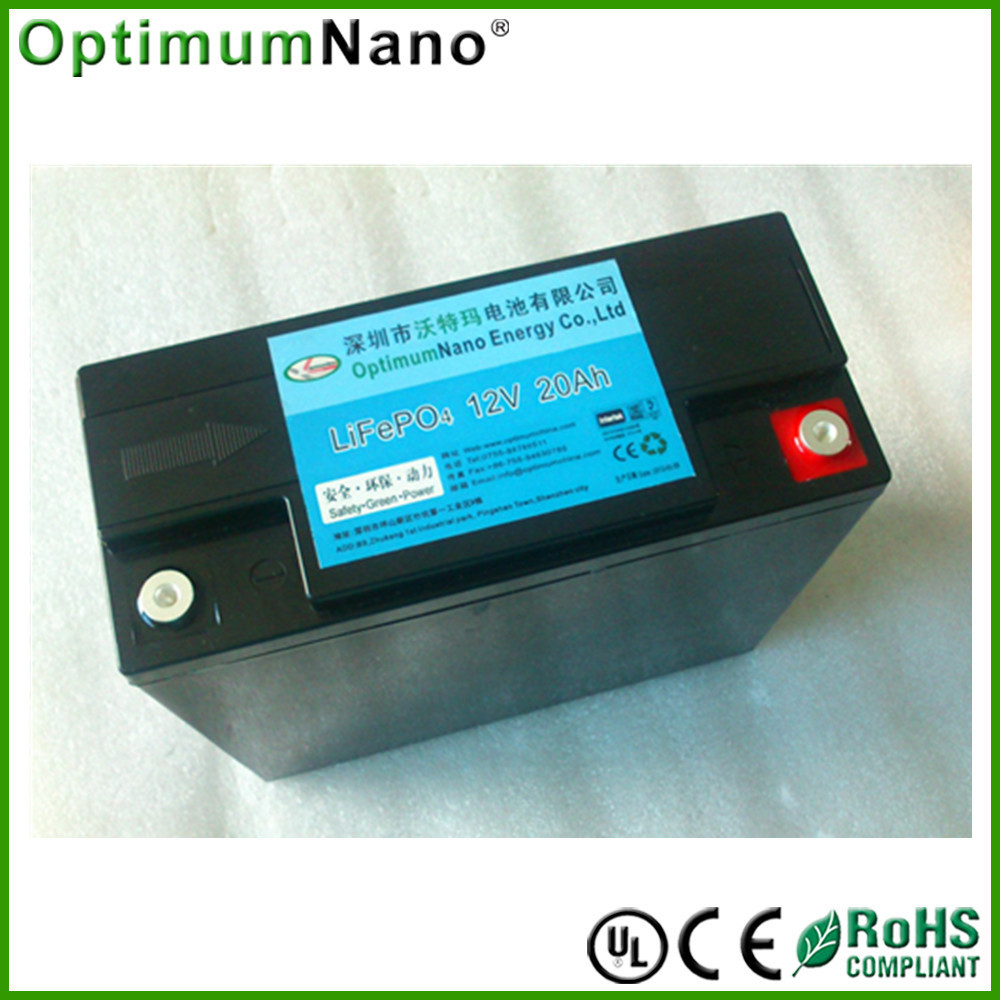

LiFePO4 Battery 12V 20ah CE UL Battery Pack with Charger

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

LiFePO4 Battery 12V 20ah CE UL Battery Pack with Charger

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $100.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 100/ Piece
100.0	US $ 1/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From May 11, 2015 To Aug 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:wtm-1220

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:High Discharge Rate

Size:Small

Accessories Type:Battery

Rated Capacity:20ah

Standard Voltage:12V

Usage:Remote Control Plane

Electrolyte:LiFePO4

Capacity:20ah

Voltage:12V

Lead Time:25days

Application:E-Car ,E-Bus ,Golf Car ,Trolley,E-Bike,Scooter,RV,

Discharge Cut-off Voltage:10V

Charge Cut-off Voltage:14.6V

Export Markets:Global

Continuous Discharge Current:0.5-1c

Certificate:UL ,CE ,RoHS ,ISO9001 ,Ts16949 ,SGS ,BV , IEC62133

Advantages:Safety,Long Life Cycles,High Energy Density,High

Additional Info.

Trademark:OPTIMUMNANO

Packing:Customized Package

Standard:CE, UL, ROHS, SGS, TS/16949 and ISO9001-2008

Origin:China Guangdong Shenzhen

HS Code:8507600090

Production Capacity:50, 000 PCS/Year.

Product Description

LiFePO4 Battery 12V 20ah CE UL Battery Pack with charger

Product Description
Product Feature
1. Safety: Safest Li-ion battery, CE UL approved, built-in protection circuit board (BMS), no fire, no explosion
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 2000 times deep cycle at 1C rate, 6-8 times of lead acid battery
4. No memory effect, highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~65 C
6. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly

Applications
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment

specification

l Electrical Charateristics

Nominal Voltage	12V
Nominal Capacity	20Ah
Impedance (Max. at1000Hz)	?50m?
Expected Cycle Life	2000 times

l Mechanical Characteristics

Height	167±2mm
Width	76±2mm
Length	182±2mm
Weight	~3.5Kg

l Operation Conditions

Charge Method	Constant Current/Constant Voltage (CC-CV)
Max. Charge Voltage	14.6V
Standard Charge Current	4A
Charge Temperature	0ºC~45ºC
Max. Continuous Discharge Current	30A
Peak Instant Discharge Current	60A,
Peak Instant Discharge Time	5 seconds
Discharge Cut-off Voltage	10.0V
Discharge Temperature	-20ºC~65ºC
Storage Temperature	-20ºC~45ºC
