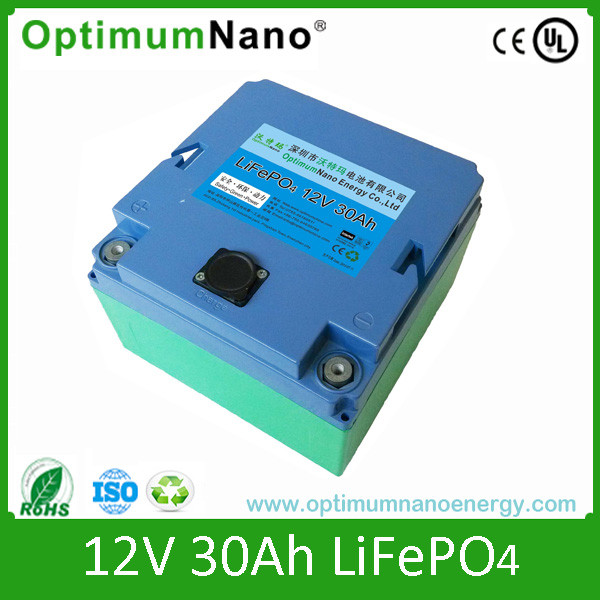

LiFePO4 Battery Pack 12V 30ah Golf Trolley Battery

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1.0-299.0/ Piece

Price:$1.0 - $299.0 / Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Aug 05, 2015 To Nov 05, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12-30

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:Low Discharge Rate

Size:Small

Accessories Type:Chargers

Rated Capacity:30ah

Standard Voltage:12V

Usage:Golf Trolly, Solar Power System,Marine, Tourist Ca

Electrolyte:LiFePO4

Battery Model:LiFePO4 Battery Pack 12V 30ah

Self-Discharge Rate:Less Than 3% Monthly

Long Life Cycle:More Than 2000times

Warranty:2 Years

Usage Capacity:30ah

Rated Voltage:12V

Place of Origin:Guangdong, China

Battery Case:Plastic Case

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:1. PVC Film 2. SLA Case 3. Customized

Standard:CE, UL, RoHS, SGS, TS/16949 and ISO9001-2008

Origin:China Mainland(Guangdong)

HS Code:8507600090

Production Capacity:10000 PCS/Month

Product Description

LiFePO4 Battery Pack 12V 30ah Golf Trolley Battery

1. Suitable for all of the electric vehicle and skiing borad and UPS backup
2. The cycle life of the battery pack can reach 2000 time with 0.2C-1C discharge current.
3. The lead-acid battery will pollute the environment seriously because of frequent replace, but the Li-ion battery is green power without pollution.
4. The Li-ion battery is more safe and reliable than the lead acid one. It wont explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat
5. Rated voltage is 12.8V, max charge voltage is 14.6V, cut-off voltage is 8V. Rated capacity is 33AH.

Specification:

No.	Item	General Parameters
1	Model	OPT-012-30
2	Standard capacity	30Ah
3	Rated voltage	12.8V
4	Max. Charge voltage	14.6V
5	Discharge Cut-off voltage	10V
6	Standard charge current	6A
7	Max Continuous discharge current	30A
8	Peak Instant Discharge Current	60A(5Seconds)
9	Dimension(Customized)	175175118mm
10	Total weight(Approx.)	About 4 Kg
11	Operate temperature	-20°C~60°C
12	Built-in Protection Circuit Module	YES
13	Cycle time	2000 times at 1C, 80% capacity remaining
14	Built-in PCM functions	Over charged protection
		Over discharged protection
		Short circuit protection

Key Features:

l Attractive cycle life
l Extended safety performance
l Wide operating temperature range
l Unrivalled high temperature performance
l Green energy without metal contaminant
l High capacity
l Steady output voltage
l Little self-discharge
l Double safety protection
l Withstanding very high level of vibrations and shocks
