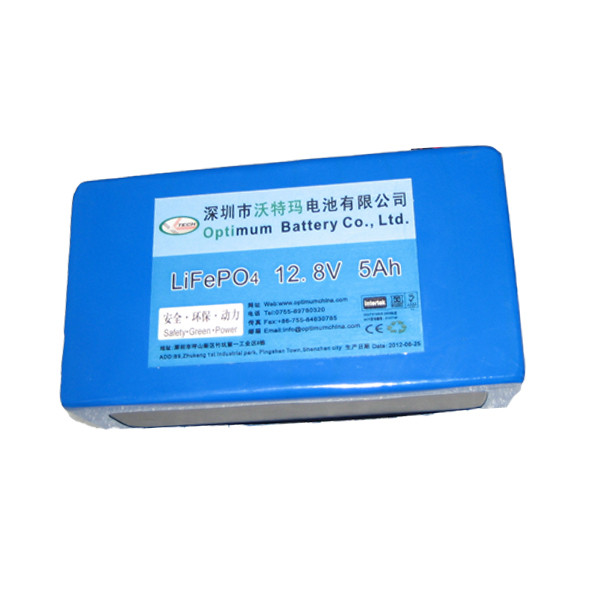

Lithium 12V 5ah Solar Light Battery Deep Cycle Battery

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
100.0	US $ 1.0-100.0/ Piece

Price:$1.0 - $100.0 / Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From May 15, 2015 To Aug 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:OPT-12-5

Type:Lithium-Ion Batteries

Usage:UPS, Lighting, Solar Light Battery

Nominal Voltage:12V

Discharge Rate:Medium Discharge Rate

Shape:Square Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Battery Type:Cylindrical Lithium Iron Phosphate Battery

Model of Single Cell:Ifr 32650 (3.2V 5ah)

Battery Model:12V 5ah Solar Light Battery

Application:Solar Light/ Solar Street Light

Case Material:PVC

Dimension:Customized

Certifications:CE, UL, RoHS, IEC, BV, SGS, Rbrc

Warranty Time:2 Years

Long Life Cycle:More Than 2000times

Self-Discharge Rate:Less Than 3% Monthly

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO ENERGY

Packing:Standard Export Package

Standard:CE, UL, ROHS, NQA, IEC, BV, SGS, RBRC

Origin:Guangdong Province, China

HS Code:8507600090

Production Capacity:2000pks/Day

Product Description

Lithium 12V 5Ah Solar Light Battery Deep Cycle Battery

Rated voltage is 12V
Cut-off voltage is 10.0V
Max charge voltage is 14.6V
Standard capacity: 5Ah

Standard charge and discharge current: 0.2C5A
Max constant discharge current: 2.5C5A
Cycle 2000 times with 0.2C-1C discharge current
Max discharge rate 2C and less than 3C
Max charge rate is less than 1C, better 0.5C
With balance BMS and charger.
UL, CE, ROSH certification

Performance Comparison between LiFePO4 Battery and Lead acid Battery
Item	LiFePO4 Battery	Lead acid Battery	Notes
Weight to Power Ratio	120-130 Wh/kg	32-37 Wh /kg	4:1
Dimension to power ratio	210 Wh/L	70 Wh/L	3:1
Cycle Life	Over 2000 times(1C)	300 times(1C)	6:1
High Rate Charge /Discharge Performance	Higher than 96%	60%~70%	1.6:1
Charging performance	1 Hour	4 Hours	1:4
Temperature Range & performance	-20ºC-60ºC LiFePO4 High temperature discharge current is about 105%,	-20ºC-45ºC Lead acid Battery temperature discharge current is about 80%	1.3:1
Monthly Self-discharge Rate	About 3%	More than 10%	1:3
