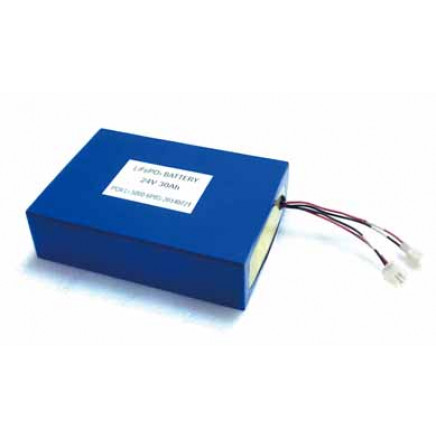

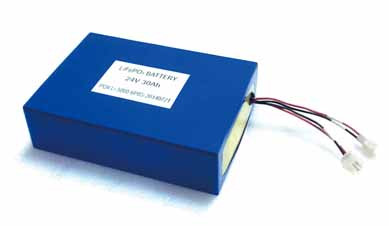

Lithium battery 24V 30Ah solar lifepo4 Battery
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: OptimumNano
- Model Number: OPT-24-030
- Type: Li-ion
- Nominal Voltage: 25.6V
- Size: 282*202*90mm
- Nominal Capacity: 30Ah
- Case material: plastic case
- Max charging current: 30A(adjustable)
- Voltage range: 20.0V-29.2V
- Constant Discharge current: 30A(adjustable)
- Working temperature: -20~+60°C
- Cycle life: 5000times
- Certificate: SGS, UL, CE, RoHS, IEC-62133, TS16949 etc.
- Warranty: 2 years
Packaging & Delivery
Packaging Details: According to the Packing Instruction 965 Section II of the current edition - 53th IATA DANGEROUS GOODS REGULATION for transportation, the<Recommendations on the Transport of Dangerous Goods Model Regulations>.
Delivery Detail: 18Days
Specifications
24V lithium solar battery
High charge and discharge current
Powerful, light, small
Type: 12V10Ah--300Ah, 24V10Ah--300Ah,36V10Ah--300Ah,48V10Ah--300Ah,
Advantages
General features of OptimumNano Lithium Iron Phosphate Battery(LiFePO4 Battery):
1. Long life cycle, no memory effect.
2. High C-Rate Discharge capability, can be fast charged.
3. High peak power available under high depth of discharge.
4. High energy density, small size, light weight.
5. Good performance in high/low temperature working condition.
6.100% safe / environmental friendly / maintenance free.
Why choose OptimumNano LiFePO4 batteries?
Comparing with other China energy suppliers who only begin to engage in this vocation one or two years ago, we are the one or two producers started to research and develop LiFePO4 BATTERY as early 2006 and had been the main supplier of the Shenzhen 26th Summer Unversiade New Energy Automitive Lithium Iron Phosphate Battery Power System.
In May 2008, we have finished the First Pure Electric Bus for Shanghai Expo Project.
OptimumNano LiFePO4 Battery test - Performance test
OptimumNano engineers take some tests to know battery performance clearly. Those tests include the different C-rate discharge, battery performance in difference temperatures, fast charging, and cycle life curves.
OptimumNano LiFePO4 Battery test - Abuse test
Unlike LiMo2O4 or LiCoO2 batteries, LiFePO4 modular structure is very stable, thus LiFePO4 battery is very safe in mis-opertation and hard conditions, Here are some abuse tests, such as Over-charge performance, Over-discharge performance, Short-circuit performance in normal temperature, Acupuncture performance, Thermal Shock safe performance etc.
OptimumNano Battery quality control method - CLMT
OptimumNano adopts CLMT method to control the quality of Battery packs, the core factors like inner resistance, charge / discharge characteristics, available capacity would be considered in quality control procedures.
OptimumNano all in one solution, Battey pack + BMS + Charger
OptimumNano offer "Battery Pack + BMS + Charger ", as all in one solution. Our engineers would test / adjust all related components if customer needed. Like CAN BUS communication or on-off signal way details.
Application:
Workshop:
Welcome to OptimumNano Energy Co., Ltd
| Normal performance |
| No | Item | General Parameter |
| 1 | Cell Model(Single cell) | IFR32650 |
| 2 | Standard Capacity | 30Ah |
| 3 | Rated Voltage | 25.6V |
| 4 | Max.Charge Voltage | 29.2V |
| 5 | Cut-off Voltage | 20V |
| 6 | Max Charge Current | 30A |
| 7 | Max Charging Time | 1h |
| 8 | Dimensions | 2872*202*90mm |
| 9 | Total Weight(Approx.) | About 7 kg |
| 10 | Impedance(Max, at 1000Hz.) | ? 50m? |
| Lifepo4 Battery Compared with SLA Battery |
| No. | Item | LiFePO4 Battery | SLA Battery | Notes |
| 1 | Weight to Power Ratio | 120-130Wh/kg | 32-37Wh /kg | 4:01 |
| 2 | Dimension to power ratio | 210Wh/L | 70Wh/L | 3:01 |
| 3 | Cycle Life Time | More 2000 times | 300 times | 6:01 |
| 4 | High Rate Charge /Discharge Performance | Higher than 96% | 60~70% | 1.6:1 |
| 5 | Charging performance | 1Hour | 4Hours | 1:04 |
| 6 | Temperature Range & performance | Below20~60degree centigrade LiFePO4 High temperature discharge current is about 105% | Below20~45degree centigrade SLA Battery temperature discharge current is about 80% | 1.3:1 |
| 7 | Monthly Self-discharge Rate | About 3% | More than 10% | 1:03 |
| 8 | Safety | Not cause fire and explosion when against overcharge, acupuncture, extrusion, high temperature and other unusual conditions. | Good safety | LiFePO4 Battery is the safest lithium battery in the market |
| 9 | Environmental | Environmental friendly | Environment pollution | Without any heavy metals or rare metals |
