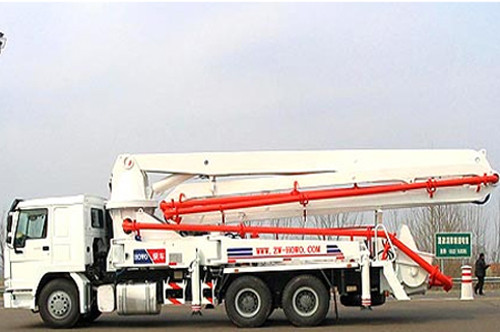

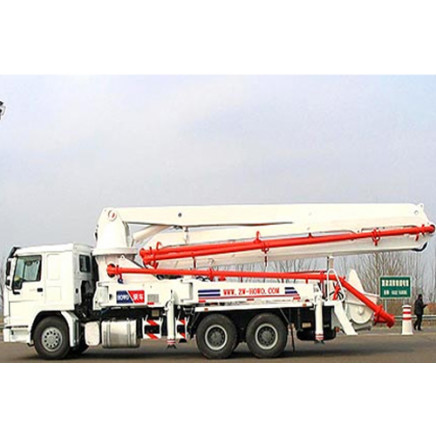

Low Price Concrete Pump Truck of 24-58meters Sinotruk

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 20000.0-90000.0/ Piece

Price:$20000.0 - $90000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: Paypal, Money Gram

Price Valid Time:From Apr 13, 2015 To Apr 22, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HTD5180THB-24/3

Type:Concrete Pump

Shotcrete Type:Wet

Machining Process:Hydraulic

Structure:Rotor Type

Productivity:90?/h

Feeding Height:1400mm

Vibrating Amplitude:1.2mm

Certification:ISO9001: 2000, CE

Condition:New

Color:White

Export Markets:Global

Additional Info.

Trademark:SINOTRUK

Packing:Nude

Standard:SGS, GOST

Origin:China

Production Capacity:500, 000 Unit/Year

Product Description

Main Technical Parameters for 24m-Boom Truck-mounted Concrete Pump

Model		HTD5180THB-24/3	Model of chassis				SINOTRUK
Weight		18460kg	Drive mode of chassis				4�2/6x4
Max. travel speed		92km/h	Cab with sleeper
			Wheelbase					5600 mm
Outline	Overall length	13740mm
	Overall width	2490mm	Tread		front wheel
	Overall height	4000mm			rear whee
Engine	Model of engine	WP10.290	Tire size					12.00R20
			Min. turning radius
			Braking distance
	Output power	290PS(213KW)	B oom	Form				three section, folded, full hydraulic
	Max. torque	1055NM		Max. ground clearance				23.1m
	Emission standard	EuroIII		Diameter of conveying pipe				DN125
	Gearbox model	9JS119		Length of end hose				3m
	displacement	97269726ML		Section 1 boom		Length		8220
	Drive mode	Hydraulic type				rotation		910
	�Cylinder diameter �stroke	?140mm�2000mm		Section 2 boom		Length		5680mm
	�Delivery cylinder diameter � stroke	?230mm�2000mm				rotation		1800
	Distributing valve type	Svalve		Section3 boom		Length		5215mm
	Displacement in theory	160/70m3/h				rotation		2680

	Pumping pressure in theory	8/11.8Mpa
				Rotating range of placing boom				any
	Pumping times in theory	19/19 times/min		Max. placing radius				19.1 m
				Max. placing height				23.1 m
				Hydraulic system pressure				32MPa
			Method of lubrication					Automatic grease lubrication
	Hopper capacity	0.7M3	Oil tank capacity					1000L
	Feeding height	1.40m	Control					/Manual/ remote control
	System oil pressure	32Mpa	Max. water pressure of water pump					6MPa
	Slump constant	14cm~23cm	Water tank volume					650L
	Max. aggregate size	40mm	Cooling method of hydraulic oil					Air cooling
	Outrigger span	4550�2280�6030	Cleaning way of concrete pipe					/Washing/ dry-cleaning

What are Sinotruk main brand products?
We primarily organize the development,manufacturing and sale of trucks, special trucks,buses,special vehicles,engines and engine units,auto parts and special chassis.
We have become an all-series commercial vehicle conglomerate with brands such as Sitrak,Howo,Steyr,Huanghe Commander,Gold Prince,Hohan,Wanpai,Folor,Wero with Europe II-V engines range from 140hp to 580hp in terms of power;As well as an enterprise with the most complete range of drive types and powers in China's heavy truck industy.

What about Sinotruk's history?
Founded in 1956,Jinan General Auto Works Plant,the predecessor of China National Heavy Duty Truck Group Co.,Ltd(SINOTRUK),is the cradle of China's heavy-duty truck industry.
The works manufactured China's first heavy-duty truck-Huanghe JN150 8T TRUCK in 1960,and introduced a heavy-duty truck project from Steyr in 1983 as China's first enterprise that introduced heavy truck manufacturing technologies from abroad in an all-round manner.

How about Sinotruk's reputation?
As No.1 of China vehicle group,with overwhelming superiorities in technology and market in the heavy-duty truck industry,we have achieved substantial sales at home and abroad,and exported products to over 90 countries,thus being accredited as a national vehicle export base by the National Development and Reform Commission and the Ministy of Commerce.Also,we have claimed titles such as "National Advanced Grass-roots Party Organization","National Civilized Entity","Chinese Famou Product","Chinese outstanding innovative Enterprise","China's Most Credible Enterprise" and "China's First Group of 2A Enterprises in Quality and Credit Management".

What about Sinotruk's demonstration of power?

Since after the reform and restructuring,we have persisted in independent innovation,vigorously implemented the strategy of leading in technology and build core competiviveness with independent intellectual property,thus becoming an enterprise with most patents in China's auto industry.Sinotruk Technical Development Center,among China's first group of national corporate technical center,has a testing laboratory accredited by the China National Accreditation Board for Laboratories,is capable of developing and testing vehicles,engine,parts and material processes,own sophisticated processing and testing euipment,and has been up to advanced world standards in terms of equipment such as engine,vehicle,parts vebration and strength test equipment.In 2009,upon aprroval by the State,the National Heavy-duty Truck Engineering Research Center was inaugurated in SINOTRUK,which undertakes functions such as technical R & D,application demonstration,achievement popularization and technical service in China's heavy-duty truck industry.
Also,we have 3 automatic body stamping lines,8 cab welding lines,12 cab painting lines and 9 vehicle assembly lines,whose equipment have been up to advanced international standards.

How about Sinotruk's delivery time?
We need 7-45days for production;Decided by the business season and the products you choose.

What about Sinotruk's guarantee?
1 year or 12000km;

What should I do if claims appears?
When the claims appear, what we need are the pictures of products, use condition brief, the order information. Sinotruk will analysize the problem, even field investigation, and work out an final option with customers.

Does Sinotruk have a good orgonization of shipping vessle ?
Yes,we have a good and long term cooperation with the world first class famous shipping company line,like MSK,PIL,SUNSHINE SHIPPING,ETC.The order over 500 units of vehicle,we will lease a vessel.
