Low Price High Quality Farm Machinery (Hq908e) with CE

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 3000.0-6000.0/ Piece

Price:$3000.0 - $6000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Mar 10, 2015 To Nov 07, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:HQ908E

Type:Small Loader

Usage:Universal Type

Scraper Type:Front End Shovel

Transmission:Hydraulic - Mechanical Transmission

Walking Mode:Wheeled

Load and Unload Method:Front Discharge

Engine Power:25kw

Certification:CE, ISO9001: 2000, SGS,Rops&Fops

Condition:New

Color:According to Customers Requirments

Loading Weight:1000kg

Operating Weight:2000kg

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 Units in a 40 Container

Standard:CE, ISO, SGS, ROPS&FOPS

Origin:Shandong, China

HS Code:84295100

Production Capacity:6000 Units/Year

Product Description

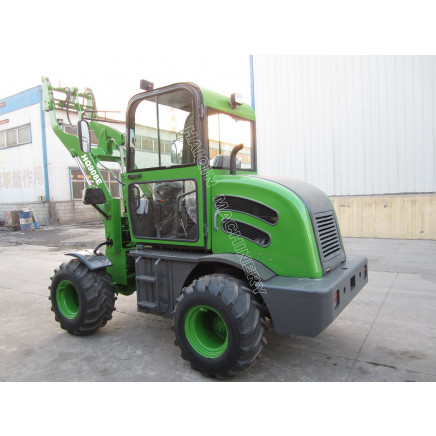

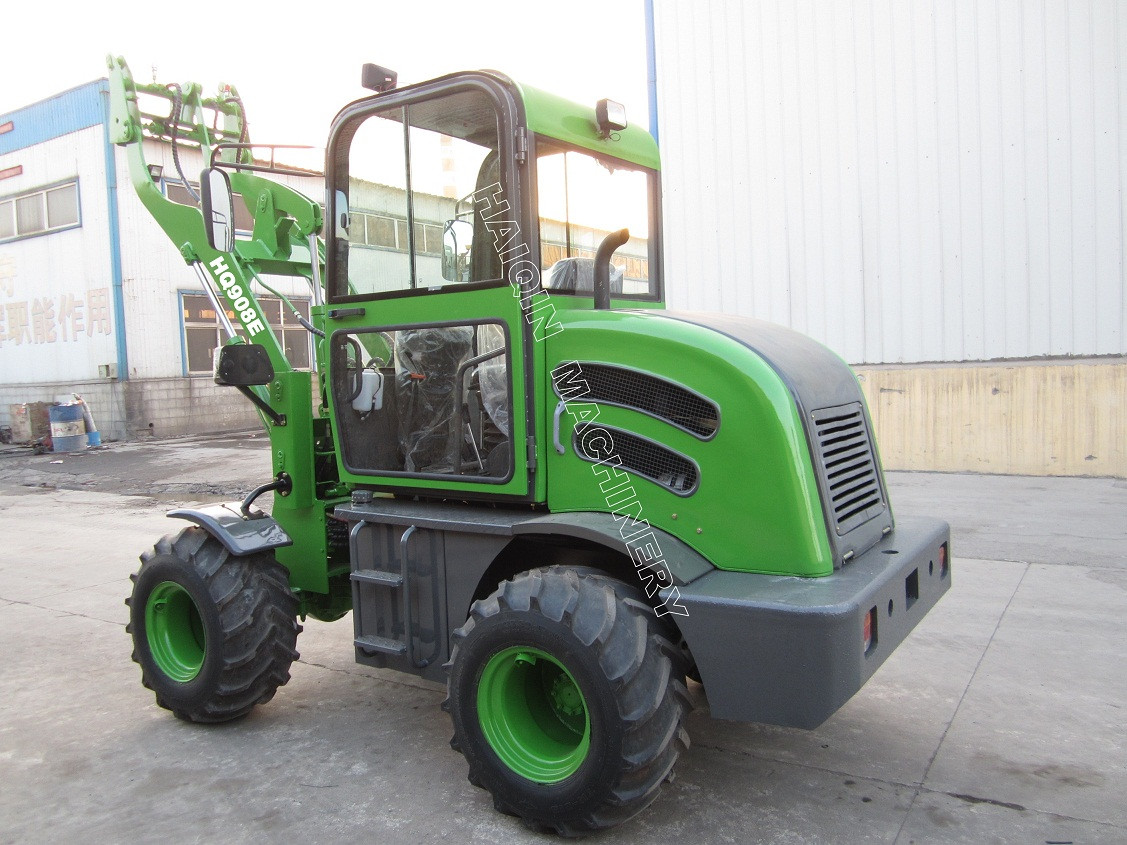

CE mini wheel loader HQ908E

1, Price very competitive and reasonable
2, Optional hydaulic quick hitch
3, Can attach many kinds of tools.

This model is our new design wheel loader with brand new appearance, different cabin, new painting technology and different performance.

Specification	overall weight(kg)	2000
	L×W×H(mm)	4720x1200x2280
	rated bucket capacity(m 3 )	0.4
	Rated load(kg)	1000
	Maximum dump height (mm)	2350
	Bucket indicator	Yes
	Max. breakout force(KN)	-
Engine	Model	changchai 2102( Euro III engine for option)
	Type	In-line arrangement, single cyclinder,direct-injection,Water cooling, four-stroke
	Rated power(	25KW
	Rated speed(r/min)	2400
Transmission system	Model of torque converter	-
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	-
Hydraulic system	Distribution of work valve	DF15.2C
Hydraulic system	Working pump	CBF32
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	35±1°
	Min turning radius(mm)	3400
Brake system	Brake type	Oil brake(Vacuum booster)
Tyres	Standard tyres	650-16
Tyres	Optional wide tyres	28x9-15
