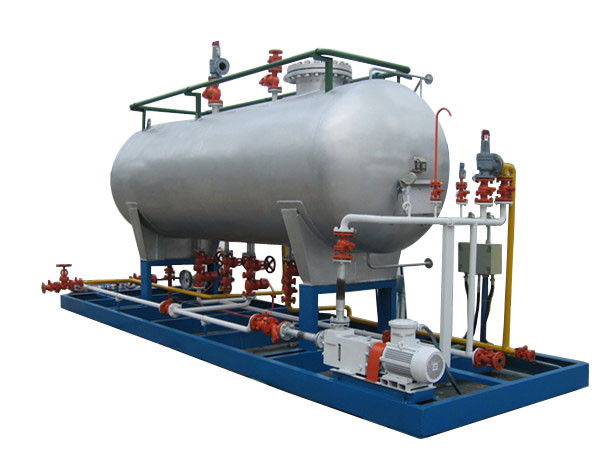

LPG Dispenser Skid Station with LPG Dispenser Machine or LPG Scale1. Optional LPG Tanker Size: 5 CBM to 100CBM
2. All in ONE LPG Skid station, no extra installation need or parts needed.
3. Can sell LPG directly to consumer, with easy installation and transportation.
4. LPG Dispenser Machine to charge the cars and truck, optional 1 nozzle or 2 nozzles
LPG Electronic Salcess to fill 50kg to 150kg gas cylinders
5. With LPG pumps, 380V motor, compressor and pipes.
6. Can assisst the installation in customer's country. More Specification of LPG Skid Station| 10 CBM LPG TANK DIMENSIONS |
| Volume of Tank | 10 CBM |
| Filling Weight | 4000 kg |
| Tank Weight | 2950 kg |
| Thickness of Shell (mm) | 10 mm |
| Thickness of Endplate (mm) | 10 mm |
| Tank Diameter (mm) | 1600 mm |
| External Dimensions (mm) (length X width X height) | 5260X 1620 X 2210 mm |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas ( Propane) |
| Design Pressure | 1.77 MPa |
| Corrosion Allowance | 1 mm |
| Medium Density | 420 kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
| Main parts of LPG Tank |
| Item | Specification | Quantity |
| Discharge Pipe | DN80 | 1 |
| Inflow Pipe | DN80 | 1 |
| Outlet | DN50 | 1 |
| Gas phase balance pipes | DN50 | 2 |
| Manhole | DN500 | 1 |
| Drain Hole | DN50 | 1 |
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,
Pressure gauge, Temperature Gauge. |
LPG Skid Part list |
| Item | Model Number | Quantity |
| LPG Tanker | / | 1 pieces |
| Bottom Base | / | 1 Pieces |
| Filling Machine | JQ060L-A-1G | 1 pieces |
| Filling Gun pipe | L=2M | 3 Pieces |
| Compressor | ZW0.8/10-16 | 1 Pieces |
| Filling pump with 380V motor | YQB15-5 | 1 Pieces |
| Cut-off Valve | J41N-40 DN50 | 25 Pieces |
| Safety Valve | A42F-25 DN50 | 1 Pieces |
| Safety Reverse Valve | AH42F-25DN25 | 1 Pieces |
| Check Valve | H42N-40DN50 | 2 Pieces |
| Pipe Safety Valve | A21F-25 DN15 | 1 Pieces |
| Magnetic reversible level gauge | UZFAL-2.5RF2640-0.50 | 1 Pieces |
| Discharging pipe | L=4M DN50/DN25 | 1 Pieces |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
| Elbow Cap | DN65 | 2 Pieces |
| Alarm system | QJ-D-99F | 2 Pieces |
| Flange | 2.5MPaDN65 | 1 Pieces |
| Metal gasket | DN65 | 5 Pieces |
| Metal gasket | DN15 | 30 Pieces |
| 8.8 degree Bolt | 16*70 | 300 Pieces |
Moblile : 0086 186 0715 8551

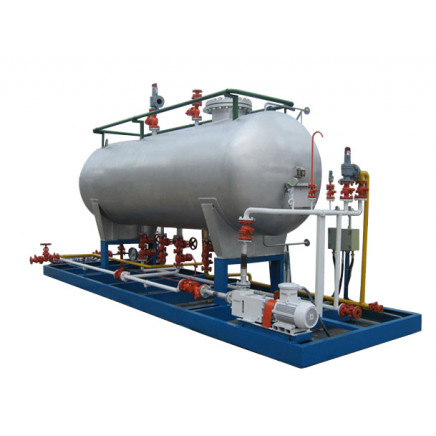

Photos of LPG Skid Station
