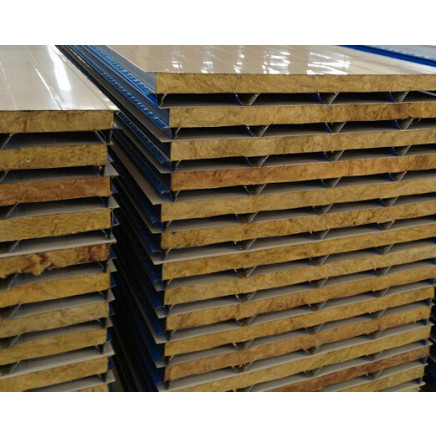

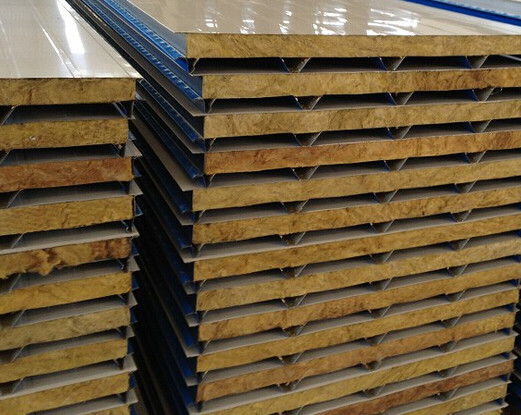

Mineral Wool/Rock Wool Sandwich Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$10.0 - $19.0 / Meter

Min. Order (Meter)	Unit Price
1000.0	US $ 10.0-19.0/ Meter

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Sep 22, 2014 To Oct 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Model NO.:V950

Brand Name:Sxgg

Rockwool Density:120kg/M3

Rockwool Thickness:75mm

Place of Origin:Xiamen China(Mainland)

Is_Customized:Yes

Steel Sheet Treatment:Galvanized+Coated

Model Number:V950 Wall Panel

Type:Rockwool Sandwich Panels

Color:Lake Blue

Export Markets:Global

Additional Info.

Trademark:SXGG

Packing:Seaworthy, as Customer?s Requirement

Standard:V950 Rock Wool Wall Panels

Origin:Xiamen, China

Production Capacity:10000m/Per Month

Product Description

Advantages:
1, good fire risistance;
2, good temp-keeping and heat insulation;
3, convenient/flexible installation;
4, waterproof;
5, load-bearing capacity.

Introduction:
Rockwool sandwiched panel is composed of 2 layers of waterproof colored steel and jetted the hard forms of polyurethane between 2 layers which features fireproof materials.

It is suitable for the various roof and walls referring to the large-size factory; Storage; Exibition halls, gymnasiums, freezing stores, purification workplace, etc.
Olor steel foam sandwich panel / EPS sandwich panel / PU sandwich panel / rockwool sandwich panel / Paper honeycomb sandwich panel

Product Description

1. There are two kinds of sandwich panels: One used for roof and one used for wall.
2. Both kinds of the rock wool sandwich panels consist of three layers: Top steel sheet, rock wool interlayer and back steel sheet. And there are two steel belts in both sides of the panel.

Rockwool sandwich panel
Type	RW-950-75
Dimensions	Total thickness	75mm
	Width	950mm
	Length	Less than 11.8m
External face	Material	PPGI /G.I.
	Thickness	0.18-0.6mm
	Thickness of the zinc	60g-80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	20 micron
	Color	According to the RAL
	Pattern	Nearly plain
Insulation	Optional foam Material	EPS \ PU \ Rockwool \ Paper honeycomb
	Thickness	50-200mm
	Density	EPS 12~25KG/M3; PU 36-45KG/M3; ROCKWOOL>110KG/M3;
	Thermal conductivity	0.045w/m2k 0.021W/M2K 0.0034W/M2K0
Internal face	Material	PPGI/G.I.
	thickness	0.18-0.6mm
	Thickness of zinc	60g-80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	7micron
	Pattern	Plain
Shipping terms
Package	Seaworthy or as custormers' requirement
Delivery time	Within 15-20days after your prepaid
application	Purification workshop condole top , Industrial workshop and warehouse
