Mini GPS Vehicle Tracker (Vt111) with Mobile Tracking Platform

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, EXW, CIF

Payment Terms:T/T, Western Union, Paypal

Trademark:Topshine or Neutral

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VT111

Type:GPS Tracker

Use:Automotive

Screen Size:No Screen

Certification:CE/RoHS

Monitor The Voice Remotely:Yes

Arm/Disarm System:Yes

Geo-Fence Alert:Yes

Over Speed Alert:Yes

Triggered by Normal Alarm:Yes

Stop The Car:Yes

Export Markets:Global

Additional Info.

Trademark:Topshine or Neutral

Packing:Neutral Color Box

Standard:quad-band

Origin:China

Production Capacity:10, 000 Sets/Month

Product Description

Mini GPS Vehicle Tracker (Vt111) With Mobile Tracking Platform

Product Overview

VT111 is a newly developed mini GPS vehicle tracker, a highly cost-effective tracking device for all kinds of vehicles, it can be used as a GPS tracker and a car alarm, has tracking, Arm/Disarm by SMS or Call, with ACC on /Movement alarm to protect your vehicles from pilferage. If equipped with RFID part, the device can realize automatic Arm/Disarm, to protect your vehicle in a easy and comfortable way. It is very small in size, easy concealed and installed, an ideal tracker for fleet management and car security.

Applications

* Vehicle Real Time Tracking
* Car Security/Anti-Hijack
* Fleet Management

Features & Functions

(1) Auto tracking by SMS/GPRS (TCP/UDP supported), track by time interval or by distance
(2) Check the car's location, speed & direction via SMS or by tracking platform;
(3) Check the physical address via SMS (need center or tracking platform support);
(4) Cut off the car power/fuel supply by SMS or by tracking platform, to stop the car;
(5) Triggered by normal alarm; (optional)
(6) Engine status detecting (optional)
(7) Movement Alert:
Once the car is parked, you can send the SMS instruction to put the system in movement alert status. Then, if the car is moving out about 80 meters, the system will send SMS to inform you. It is a very useful function, which enables the tracker to work as the car alarm too;
(8) Geo-fence Alert:
User can set a certain zone by SMS, once the vehicle oversteps the fence; The alarm will send SMS to inform you;
(9) Over-speed Alert.
User can set a certain speed limitation by SMS. Once the vehicle is running over this speed, the system will send SMS to inform you;
(10) Built-in rechargeable backup battery, External Power (Car battery) failure Alert.
If the system's main power supply is cut off, system will send SMS to warn you;
(11) Two kinds of location information.
User could locate the precise location by GPS. If there is no GPS signal, user could also locate the car by CPS (cellular positioning system - located by GSM network)
(12) Monitor the voice around the car via telephone;
(13) Anti-robbery switch, send out SMS for help in case of high-jack; (optional function)
(14) Track the car by SMS or by tracking platform (The software is optional).
(15) Flexible design, the system can work alone without support of center. If the center is setup, the functions can be much stronger, you can monitor & control many vehicles in the center, and the information of vehicle's location can be more detailed and friendly.
(16) Anti-tamper design in small size, stable, reliable & easy installation.
(17) GOOGLE map link for location via SMS, which shows you location on map via mobile phone.

Solutions:
Car alarm + GPS tracker solution
Drive ID inductive key solution
RFID&Timecard solution
Other customization function with VT111
For Motorcycle, Private car, Car rental/leasing company tracking & security, Fleet management etc.

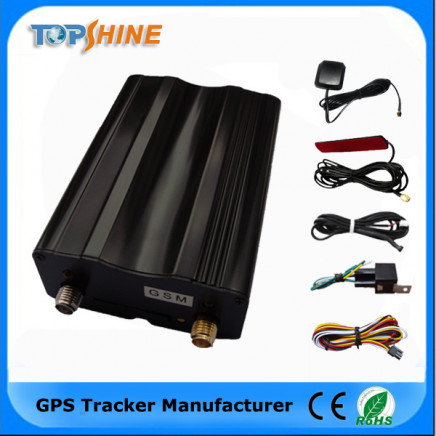

Complete Set:
Standard Package:
Main unit VT111
GSM antenna
GPS antenna
Wire cables
Relay
Microphone

Optional Accessories:
Special USB cable
RFID kit

Items	Specifications
Dimension	1056526mm
Weight	190g
ChargingVoltage	DC 9V~24V/1.5A
Back-upBattery	650mAh/3.7V
Power consumption	65mAstandbycurrent
Operating Temperature	-30~+75 Celsius degree
Humidity	Upto 75%non-condensing
LED	2LED lights toshowGPS,GSMand otherstatus
Microphone	Yes
GSMFrequency	GSM850/900/1800/1900MHz
GPSChip	LatestGPSSIRF-StarIIIchipset
GPSSensitivity	-159dB
Positioning Accuracy	10meters,2D RMS
I/O	3DigitalInput 1 Output 1USB port 1 MIC port

Packing Measures:
Neutral	Dimension (mm)	Weight (KG)	Capacity
Box	165x155x50	0.45	1 set
Carton	470x340x310	15	30 sets
