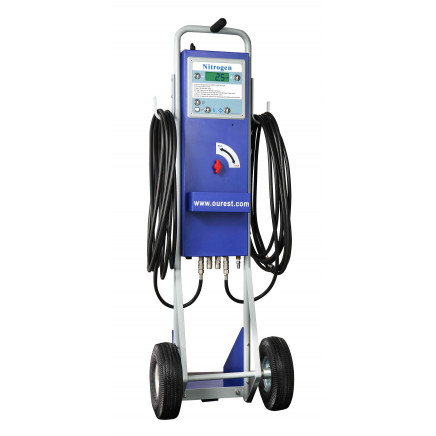

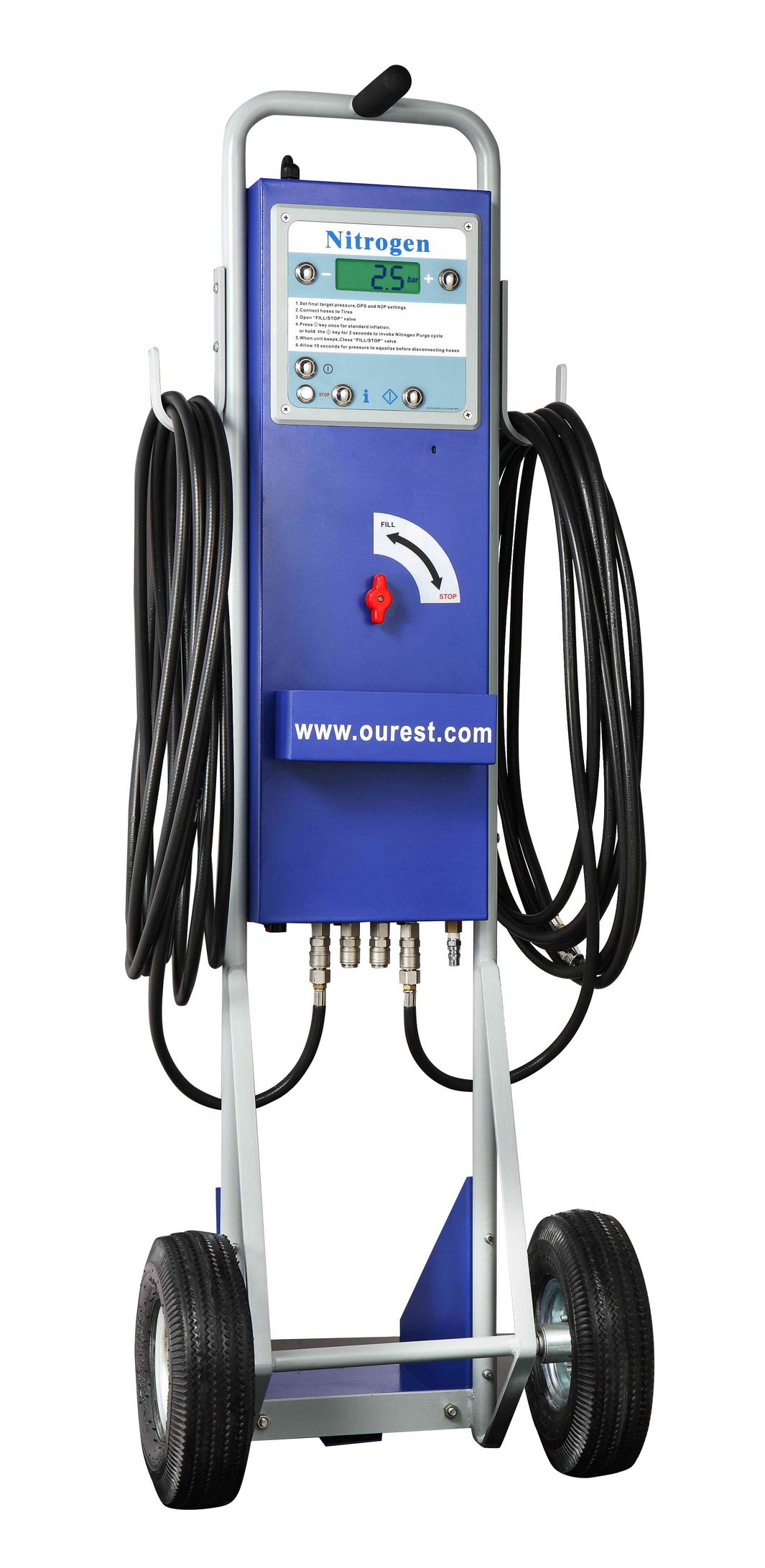

Nitrogen Inflator (E-0124-N2P-BAT-e)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, CFR, CIF

Payment Terms:T/T, Western Union

Trademark:G5

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E-0124-N2P-BAT-e

Certification:CE

Color:Blue

Type:Tyre Inflator

Function:Inflate Tyre

Export Markets:Global

Additional Info.

Trademark:G5

Packing:Carton

Standard:CE

Origin:China

HS Code:84148090

Production Capacity:800units/Month

Product Description

Nitrogen Inflator System Technical Data Summary
Dimensions (Height*Width*Depth)

1400mm*500mm*600mm
55.1"*19.7"*23.6"
Net Weight

26.7kg/58.7lbs
Gross Weight

38kg/83.8lbs
Packing Size(height*Width*Depth)

310mm*1420mm*510mm
12.2"*55.9"*20.1"'
Power Requirement

24VDC(2 PCS 12VDC internal batteries included)
100-240VAC 50 /60Hz charger included
Power Consumption

23VA
Operating Temperature Range

-20/-4° F to 70 / 158° F
Max Inlet Air/Nitrogen Supply

174PSI / 12bar / 1200kPa
Operating Range

5-174PSI/0.3-12bar/35-1200kPa
Over Pressure Setting Range

0-29PSI/0-2.0bar/0-200kPa
Nitrogen Purges

0-9
Accuracy

ą 1PSI/0.07bar/7kPa
Resolution

1PSI/0.1bar/5kPa
Units of Measurement

PSI/bar/kPa
Specifications
1. Adjustable over pressure setting(OPS)
2. Nitrogen purge and fill cycle (N2P)
3. Adjustable number of cycles
4. Adjustable lower purge pressure limit
5. Standard inflate to target
6. 6 air outlets allow simultaneous inflation of up to 6 tires
7. Auto-Start inflation
8. Automatic zero drift adjustment
9. Remain at last setting
10. Comprehensive diagnostics and error reporting
11. Audible and visual end of the cycle signal indicators
12. Large backlight LCD display
13. Vandal resistant mechanical switches
14. Suits Standard nitrogen bottle/Direct nitrogen supply from generator/Air compressor
15. 4 Nos. *8M/26ft standard hoses with single clip-on closed chuck
16. Long life design, up to 2 days of average usage before recharge
Operation Steps
1. Set final target pressure using the + and - buttons. The LCD screen will show the target pressure.
2. Connect air hose(s) to tyre valve stem(s).
3. FOR TOP-OFF ONLY: Push the "FILL/PURGE" button once.
FOR NITROGEN CONVERSION: Push and hold the "FILL/PURGE" button for 2 seconds until the LCD screen shows "N2P".
4. When unit "beeps" and the LCD screen flashes the target pressure, tyre inflation is complete.
