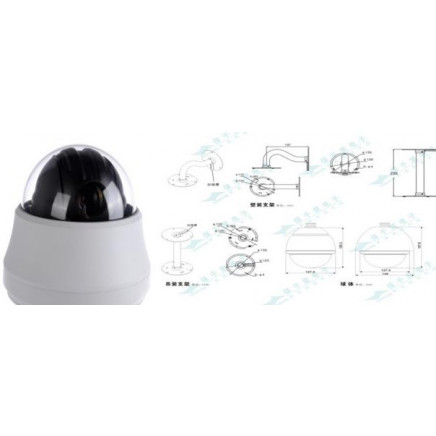

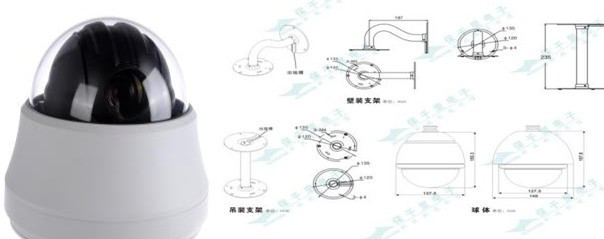

OEM High Speed Dome Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:4 Pieces

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:OEM / Protruly

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BQL/KeX39-10

Type:PTZ Camera

Sensor:CCD

Speed:High-speed Dome

Technology:Pan / Tilt / Zoom

Feature:Vandal-proof, Mini Size, Waterproof / Weatherproof, Awb,Mask,Dnr,Strong Light Inhibition,Mirror

Horizontal Resolution:480tvl

Lens:3.8-38mm

Optical Focus and Digital Zoom:10X / 10X

OSD:Full -Screen Chinese / English Menu

Filter:Single Filter, IR Sensor

Housing Protection:IP50

Effective Pixel:PAL:500(H)X582(V) NTSC:510(H)X492(V)

Export Markets:Global

Additional Info.

Trademark:OEM / Protruly

Standard:CE/FCC/ROHS/3C

Origin:China Shenzhen

HS Code:8525801390

Production Capacity:1000PCS / Week

Product Description

Protruly speed dome

Special function: IP66, AWB, MASK, DNR, Strong light inhibition, Mirror, 8 languages, take high-performance DSP to realize complete digital and ultra-high speed focus function

Advantage: :

> Mini high speed dome camera, Metal double cover.
> Use high quality components, high&minute sub-step into TV, long life Conductive slip ring, High-quality belts, Stable operation, high reliability.
> Stable running, none dithering under any speed.
> Cover use high intension Aluminum material, with defend impact, shielding and heat dissipation function.
> Internal setting data not lose when electronic cut.
> Triple lightning protection technology, effectively raising the speed dome mine and anti-jamming capability.
> It uses all-digital control, simple and ingenious design, discretional quickly locate and continuous follow-up scan, it has automatic tracking function, make smart surveillance of all-round, non-blind spot, Can automatically adapt to the environment and target distance changes in light and dark.
> Level of 360 ° Rotation, a precision stepper motor drive, smooth operation, accurate positioning
> built-in full-screen OSD menu, compatible with a variety of control protocols, baud rate is adjustable

Protruly speed dome applicable place:
All walks of life indoor area, the monitoring of the moving target, Such as:
Indoor public system, the subway, the telecommunications sector, banking security, office buildings, intelligent buildings, intelligent community, airports, railway stations and other monitoring.

Focal length / rotation speed automatic matching technique:
Manual adjustment, in long focal length situation, high speed reflect makes image quickly move when a slight touch of joystick, resulting a data loss. Based on a humanized design, the PTZ camera can automaticly adjust horizontal and vertical rotation speed according to focal length, so that manual operation is simple and easy to track targets.

Features of Sony EFFIO-E:
1/3 "Sony EX-VIEW HAD II CCD with high-quality and high- sensitivity. Up to 650 tvl of horizontal resolution, high-definition images, excellent low light performance.
A. Range of AWB. Is 1.8 ~ 10K, it can monitor environment with a variety of shine.
B. Digital WDR...Excellent color reproduction (ATR Auto Levels adaptation).
C. 2D DNR...In the case of low light, obtained clean and delicate images.
D. 8 language OSD menu, powerful, high brightness compensation, strong light inhibition

4" mini intelligent high speed doom series (K series)
Madel No.	BQL/FeX39-100
Image Sensor	1/4" SONY CCD
Signal Model	PAL/NTSC
Horizontal Resolution	480TVL
Effective Pixel	PAL:500(H)X582(V) NTSC:510(H)X492(V)
Minimum Illumination	0.001Lux-0.05Lux, Color to B/W
Application Environment	Indoor/Outdoor
Installation way	histing mounted , wall mounted
Housing protection	IP50
S/N Radio	? 50dB ( enhanced )
Filter	single filter, IR sensor
Backlight Compensation	On/Off
White Balance	Auto
Electronic Shutter	PAL:1/50~1/10000 seconds, NTSC:1/60~1/12000 seconds
Lens	3.8-38mm
Optical zoom	10X
Digital zoom	Optional 10X
Focus	Auto/manual , take high-performance DSP to realize complete digital and ultra-high speed focus function.
Preset	255
Pattern scan	4 groups , each can record 200 actions
Tour scan	4 groups ,every group have16 presets can join cruise,can setting the presets'residence time
Other Scan	4 groups, support horizontal scan, deuce area scan, scan random
Rotation Range	Horizontal 360° unlimited rotation , Vertical 180° , auto reversal
Rotation Speed	Horizontal & Vertical Min 0.01°/s, Max 300°/s
Camera protocols	supported SONY or Samsung
Communications	RS485, PELCO D, PELCO P
Baud Rate	2400/4800/9600/19200
Dome address	255
Camera menu	8 languages
OSD	Whole screen Chinese/English menu
Special function	AWB,MASK,DNR,Strong light inhibition,Mirror
Power Supply	DC12V/1.5A
Material	Aluminum shell
Work Environment	-20 Celsius degree ~+50 Celsius degree (select temperature control accessories), < 95%RH
