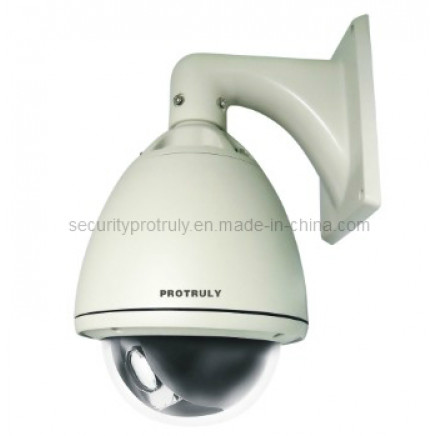

Optional 10X IP66 PTZ Dome Camera with CE and FCC Approved (BQL/CeT39-27)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:4 Pieces

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:Protruly / OEM

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BQL/CeT39-27

Type:Dome Camera

Sensor:CCD

Speed:High-speed Dome

Technology:Pan / Tilt / Zoom

Feature:Vandal-proof, Mini Size, Waterproof / Weatherproof, High Definition, Awb., WDR ., Mask., Dnr ., Strong Light Inhibition

Horizontal Resolution:540tvl

Image Sensor:1/4" Sony CCD

Signal Model:PAL/NTSC

Lens:3.2-86.4 Mm

OSD:Full -Screen Chinese / English Menu

Iris / Filter:Auto-Iris/ Single Filter

Housing Protection:IP66

Zoom:Optical Zoom 27X / Optional 10X

Export Markets:Global

Additional Info.

Trademark:Protruly / OEM

Standard:CE/FCC/ROHS

Origin:China Shenzhen

HS Code:8525801390

Production Capacity:2000PCS / Week

Product Description

6" IP66 Outdoor/Indoor high speed dome camera (C series BQL/CeT39-27)

Advantage:
1. It uses all-digital control, simple and ingenious design, discretional quickly locate and continuous follow-up scan, it has automatic tracking function, make smart surveillance of all-round, non-blind spot
.
2. It can automatically adapt to the environment and target distance changes in light and dark, High reliability and long-term stable operation, without maintenance.
.
3. High speed PTZ camera is compatible with a variety of control protocols, so it can support a variety of popular platforms.

Application places:
Applicable to large-scale industries, active target object surveillance.

Such as: Power systems, telecommunications sector, banking security, factories and enterprises, intelligent buildings, intelligent community, urban road monitoring, airports, stations and other monitoring occasions.

Technical program about Sony EFFIO:
EFFIO (Enhanced Features and Fine Image Processor. It has high resolution, high SNR and excellent Color reproduction). It was came into market by Sony. It had four versions: Effio, Effio-E, Effio-P, Effio-S.

Features of Sony EFFIO-E:
1/3 "Sony EX-VIEW HAD II CCD with high-quality and high- sensitivity. Up to 650 tvl of horizontal resolution, high-definition images, excellent low light performance.
A. Range of AWB. Is 1.8 ~ 10K, it can monitor environment with a variety of shine.
B. Digital WDR...Excellent color reproduction (ATR Auto Levels adaptation).
C. 2D DNR...In the case of low light, obtained clean and delicate images.
D. 8 language OSD menu, powerful, high brightness compensation, strong light inhibition.

6" IP66 Outdoor/Indoor high speed dome camera (C series)
Madel No.	BQL/CeT39-27
Image Sensor	1/4" SONY CCD
Signal Model	PAL/NTSC
Horizontal Resolution	PAL:752(H)X582(V) NTSC:768(H)X494(V)
Effective Pixel	540TVL
Filter	Single filter, IR sensor
Minimum Illumination	0Lux, Color to B/W
Application Environment	Indoor/Outdoor
Installation way	histing mounted , wall mounted
Housing protection	IP66
S/N Radio	? 60dB ( enhanced )
Backlight Compensation	On/Off
White Balance	Auto
Electronic Shutter	PAL:1/50~1/10000 seconds, NTSC:1/60~1/12000 seconds
IR distance	No
Lens	3.2-86.4 mm
Optical zoom	27X
Digital zoom	Optional 10X
Focus	Auto/manual , take high-performance DSP to realize complete digital and ultra-high speed focus function.
Preset	255
Pattern scan	4 groups , each can record 200 actions
Tour scan	4 groups ,every group have16 presets can join cruise,can setting the presets'residence time
Other Scan	4 groups, support horizontal scan, deuce area scan, scan random
Rotation Range	Horizontal 360° unlimited rotation , Vertical 180° , auto reversal
Rotation Speed	Horizontal & Vertical Min 0.01°/s, Max 300°/s
Camera protocols	supported SONY or Samsung or CNB
Communications	RS485, PELCO D, PELCO P
Baud Rate	2400/4800/9600/19200
Dome address	255
Camera menu	8 languages
OSD	Whole screen Chinese/English menu
Special function	AWB,MASK,DNR,Strong light inhibition,Mirror
Temperature control	Built-in
Power Supply	AC24V/3A, DC12V/4A
Material	Aluminum shell
Work Environment	-20 c elsius degree ~+50 celsius degree (select temperature control accessories), < 95%RH
