Original Mini GPS Tracking Device Vt200 with Arm/Disarm System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$52.0 - $63.0 / Set

Min. Order (Sets)	Unit Price
1.0	US $ 63/ Set
100.0	US $ 52/ Set

Trade Terms: FOB

Payment Terms: T/T, Western Union, Paypal

Price Valid Time:From Sep 02, 2013 To Oct 09, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VT200

Type:GPS Tracker

Use:Automotive

Export Markets:Global

Additional Info.

Trademark:Neutral

Packing:Neutral Color Box

Standard:quad-band

Origin:China

Production Capacity:10, 000 Sets/Month

Product Description

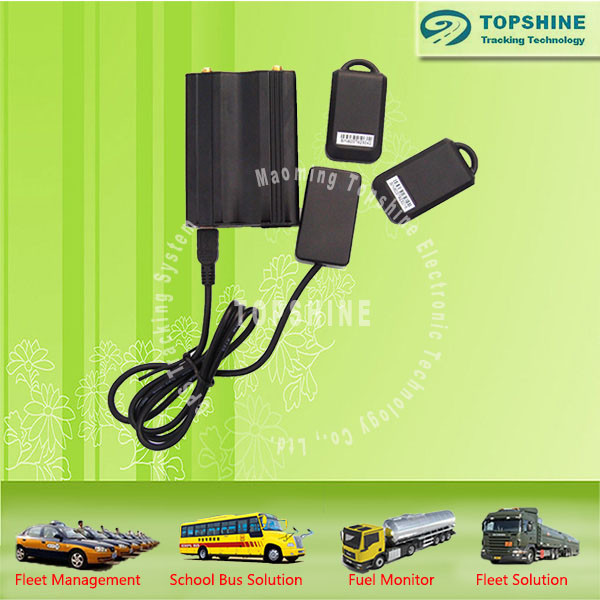

Original Manufacturer Mini GPS Tracking Device VT200 With Arm/disarm system

General Description:

VT200 is a GPS/GSM/GPRS tracking device which is specially developed and designed
For vehicle real- time tracking and security. With superior GPS and GPRS modules,
VT200 has good sensitivity and stable performance. Especially,
VT200 is well designed to work with our web-based tracking system,
Which is suitable for a company to establish a tracking server to provide real-
Time tracking solutions to their customers or manage their fleet.

Functions & Features
1. Harsh braking and harsh acceleration alarm
2. Check the vehicle's location by SMS or GPRS
3. Set automatic tracking by distance or time interval
4. Cut off engine by SMS gradually for safety
5. Monitor the voice remotely by phone
6. Arm/disarm system by phone call or SMS
7. ACC on alarm, Door open alarm, Movement alarm in Arm status, can be used as an alarm
8. Geo-Fence Alert. If the car oversteps the boundary, it will send out alert
9. Over-speed Alert
10. SOS button, call for help (optional)
11. Mileage report
12. User can check the vehicle's real address name (city, street, etc) by SMS or Website (optional, need platform's support)
13. Small size with backup battery. Anti-tamper design, once power supply is cut off illegally, it will send out alert.
14. Location to SMS with Google map's link
15.2 inputs, 2 outputs and 1 analog input
16. Remote monitor fuel consumption (optional)
17. Remote monitor temperature (optional)

Application
Suit for any vehicle; Upgrade the ordinary car alarm to GPS alarm system; Track the vehicle online

Complete Set:
Standard Package:
Main unit
GSM antenna
GPS antenna
8-pin Wire harness
Relay
Microphone

Optional Accessories
Special USB cable
Active RFID kit
Passive RFID kit

Technical Specificatioins:
Main unit size:	7.55.42.5 (CM)
Weight of the main unit:	125g
Working temperature:	-20 ~ +75 Celsius degree
Humidity:	upto 75% non-condensing
GSM frequencies:	Quad-band: 850MHz/900MHz/1800MHz/1900MHz
GPS chip:	Latest SiRF-Star III chipset
Working voltage:	+6~24 VDC
Power Consumption:	Working current: 20~1000mA; Static current: 20~30mA; Peak current of sending GSM signal: 1000~1200mA; Peak current of receiving GSM signal: 600~800mA;
Inside Backup battery:	Rechargeable 3.7V 650mAh Li-ion battery

Packing Measures:
Neutral	Dimension (mm)	Weight (KG)	Capacity
Box	165x155x50	0.45	1 set
Carton	470x340x310	15	30 sets
