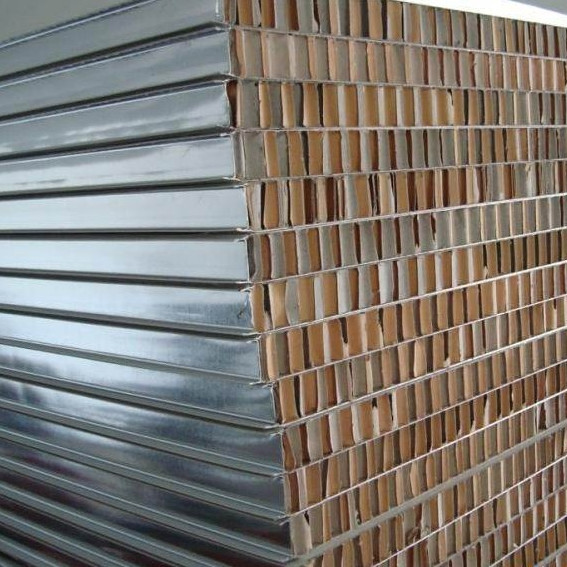

Paper Honeycomb Sandwich Board for Wall

Paper Honeycomb Sandwich Board for Wall

More Views

Paper Honeycomb Sandwich Board for Wall

Be the first to review this product

More than 10 available

Availability: In stock

Price:$4.0 - $20.0 / Meter
Min. Order (Meter) Unit Price
500.0 US $ 4.0-20.0/ Meter
Trade Terms: FOB, CIF
Payment Terms: L/C, T/T
Price Valid Time:From Apr 16, 2014 To Jul 16, 2014
Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now
OR
Paper Honeycomb Sandwich Board for Wall
Description

Details

Basic Info.

Material:Sandwich Panel
Usage:Warehouse, Villa, Dormitories, Temporary Offices, Workshop, Wall / House
Certification:SGS
Lenght:<=11.8m
Export Markets:Global

Additional Info.

Trademark:Shengxin
Packing:Seaworhy as Customer?s Reqirement
Origin:Xiamen, China
Production Capacity:10000ton/Per Month

Product Description

Specifications
1Pure handmade sandwich panels
2Material EPS/rockwool/PU / paper honeycomb
3Fine wall panel
4Furniture board
5High quality pane
Sandwich panel looks like sandwich. Two external surfaces are made of powder-coated steel sheets. And insulation materials usually use EPS, PU, Rock wool, Paper honeycomb, Aluminum honeycomb etc.
They are widely used in clean room as non-force bearing wall, roof and ceiling and as force bearing wall in single-storey prefabricated buildings. The major application demonstrates in the clean room system as partitions & ceilings.
The fields range from electronics to semi-conductor, pharmaceutical, bio-tech and food processing etc.

Specification
1. Paper honeycomb sandwich panel
2. Brand name: Shengxin
3. Place of original: Xiamen, China
4. Nomal thickness: 50mm-200mm
5. Normal width: 950mm /1150mm
6. Normal length: 1000mm-3600mm(ajusted to specific project )
7. Application: Clean constructions like electricity, Biology, food, medicine, hospitals, military, etc.

Specification:
1. External steel panel
Thickness: 0.4mm ~ 1.2 mm
Basic steel: Galvanized steel, galvalume steel and stainless steel
Finish: Galvanized, Powder-coated with PE/HDP/PUDF, Stainless steel with brushed/mirrored.

2. Insulation material
Type: Paper honeycomb, Aperture: 20-35mm

3. Panel
Width (mm): 950 1150(the effective width)
Thickness (mm): 50, 75 and 100, other options are available under client's request. Length (mm): Tailored as per client's requirement due to continuous forming production.
Shape: Notch + Alum. Joint + Notch
(Tongue & Groove type is also available)

Product features:
The sandwich panels are new multi-purpose construction material.
1. Heat and sound insulation. Temperature suitable for PU ranges from -200 centigrade to 150 centigrade.
2. Light weight, water-proof, Good chemical resistance and seismic resistance, anti-corrosion etc.
3. Energy conservation, environment protection, economical, good structure, easy to installation.

Paper Honeycomb Sandwich Board for WallPaper Honeycomb Sandwich Board for Wall
Color Steel Foam sandwich panel
Type color steel  foam sandwich panel (overlap joint)
All the screw and accessories are available



Dimensions		 Total thickness 50-200mm
Width 950mm   970mm   1150mm
Length Less than 11.8m






External face		 Material  ppgi
Thickness 0.18-0.6mm
Thickness of the zinc 60g-80g/m2
Corrosion protection Galvanized
Coating Polyester
Thickness of coating 20 micron
Color According to the RAL
Pattern Nearly plain
Insulation Optional foam Material EPS     PU     Rockwool   Paper honeycomb
Thickness 50-200mm
Density EPS 12~25KG/M3; PU 36-45KG/M3; ROCKWOOL>110KG/M3;
Thermal conductivity 0.045w/m2k  0.021W/M2K 0.0034W/M2K0
Internal face Material ppgi
thickness 0.18-0.6mm
Thickness of zinc 60g-80g/m2
Corrosion protection Galvanized
Coati
