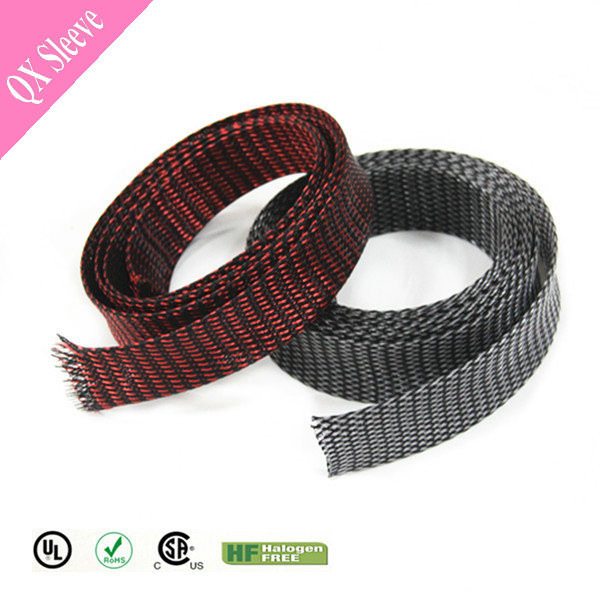

Pet Mix Color Braided Cable Harness Sheathing Expandable Sleeve

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Meter)	Unit Price
500.0	US $ 0.075-1.12/ Meter

Price:$0.075 - $1.12 / Meter

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Apr 29, 2015 To Jun 30, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BS-PET

Type:Cable Sleeve

Material:Plastic

Certification:RoHS, UL,CSA,Pfos,Reach,Halogen Free

Customized:Customized

Condition:New

Flame Retardant:Normal

Available Size:3mm~100mm Flat Width

Classification:Pet Cable Harness Sheathing Expandable Sleeve

Standard Color:Black,Grey

Logo Printed:Yes

Free Sample:Yes

Available Colors:58 Colors

Package:500/350/250/300/200/100 Meters Per Roll

Special Package:According to Customers?s Requirements.

Export Markets:Global

Additional Info.

Trademark:QX

Packing:500m, 350m, 300m, 250m, 200m, 150m, 100m/Rol.

Standard:3mm to 100mm Flat Width

Origin:Fujian, China

HS Code:4602900000

Production Capacity:3000000 M/Month

Product Description

Product feacture:
1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.

2. Braided of 0.25mm / 0.2mm Pet monofilament.

3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.

4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.

5. Logo printing is available.

6. Customized,Special package is willing to accepted,can be product according to customers requirements.

Pet Mix color Braided cable harness sheathing expandable sleeve

Technical data:
1. Material: Polyester

2. Operating range: - 50C - +150C

3. Melt Point: 250C+-5C

4. Flammability: VW-1

5. Standard colour: Black and grey

6. Certificate: UL, CSA, RoHS, PFOS, REACH, Halogen Free

7. Cutting tool: Hot knife

Application:

It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment, where is required an additional protection.

Part No	Size	Expanded Range(mm)		Packing (L)
	Flat width(mm)	Min(I)	Max.(O)	M/spool
BS-PET003	3	1	6	1000
BS-PET006	6	3	9	500
BS-PET008	8	5	16	350
BS-PET010	10	7	19	350
BS-PET012	12	8	24	300
BS-PET016	16	10	27	250
BS-PET019	20	14	30	200
BS-PET025	25	18	35	200
BS-PET032	32	20	50	150
BS-PET038	38	30	60	100
BS-PET045	45	35	75	100
BS-PET050	50	40	80	100
BS-PET064	64	45	105	100
BS-PET076	76	64	120	100
