Pitl Lift for Truck and Bus

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 4000/ Set

Price:US $4000.0 / Set

Trade Terms: FOB, CFR, CIF

Payment Terms: T/T, Western Union

Price Valid Time:From Feb 05, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DGJ-30

Type:Electric Jack

Structure:Hydraulic Jack

Capacity (Load):21-30T

Power Source:Electric

Max Height:>400mm

Certification:ISO 9001:2008

Condition:New

Power:380V/220V

Max Lifting Tons:30t

Max Working Stroke:670mm

Using Way:Pit Use

Export Markets:Global

Additional Info.

Trademark:Haolida

Packing:Export Plywood Case

Standard:ISO9001

Origin:Shandong, China

HS Code:8425429000

Production Capacity:200sets Per Year

Product Description

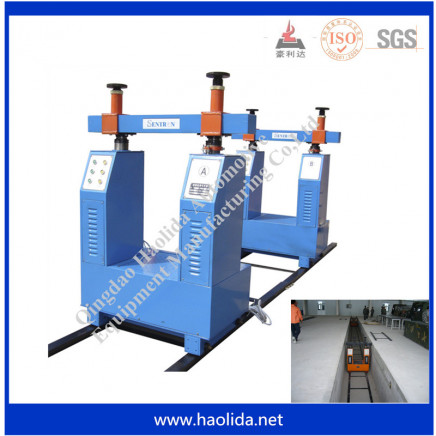

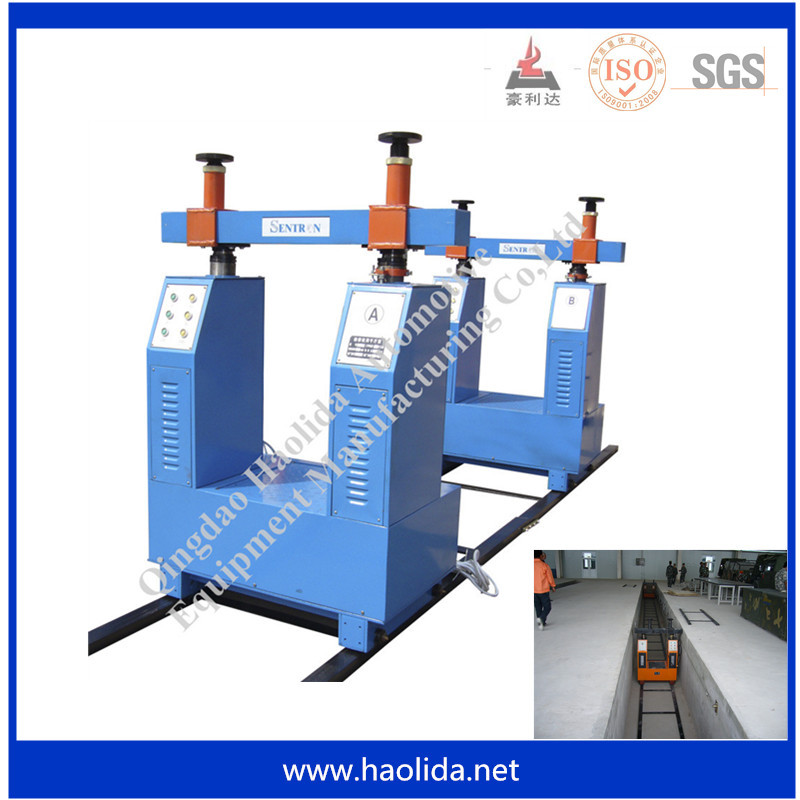

Pit lift for bus and truck

1.Function Introductio
DGJ mdoel pit lift is fit for hoisting operation for large and medium scale loading automobiles and vehicles of all kinds when they needs maintenance.
It is convenient and safe as well as reliable to use this equipment.
Two sets of equipments could be combined used, so it is available to operate any one equipment while the other equipment can rise and fall separately or two equipments rise and fall at the same time.
The pit lift consists of motor, worm wheel box gear speed-shift structure, hoisting beam rising system and mobile enhancing salver, main body, shell, track and electric control system .
2.Technical Parameter
a.Maximum hoisting force: 300KN(30T)
b.Maximum hoisting height: 800mm-1080mm
using single upper beam: 800mm;
installing mobile bracket: 1080mm
c.Maximum hoisting width: 960mm
d.Vertical supporting-point range: 1600~7000mm
e.Maximum working journey of the jack: 670mm
f.Motor Power: 2.2KW
