Plastic Waterproof CMOS Sensor Wired IR Bullet Security IP Camera

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Plastic Waterproof CMOS Sensor Wired IR Bullet Security IP Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:500 Pieces

Trade Terms:FOB

Payment Terms:T/T

Trademark:Cayera

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:IPC-AP313E

Technology:Infrared

Style:Fixed Focus Lens

Type:IP Camera

Sensor:CMOS

HDMI Format:960P

Kind:Autofocus Lens

Certification:CE, FCC

Feature:Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC

Effective Distance:?30m

Sensor Size:1/3 inch

CMOS:1/3"

Detection and Alarm:E-Mail Alerts, Alarm Client

Operating Temperature:-10deg-50deg

Meterial:Metal

Color:Gray

Snr:44db

Lens:3.6mm

Export Markets:Global

Additional Info.

Trademark:Cayera

Packing:655mm*435mm*450mm; 40PCS

Standard:CE, FCC

Origin:Shenzhen, China

Production Capacity:50000 PCS/Year

Product Description

Quick Detail

1.Minimum illumination 0.01Lux (0Lux IR on)

2.1-channel BNC HDAHD high definition video output

3.Wide Angle of view

4.Automatic White Balance

5.Working Environment -10°C~+60°C, Less than 90% RH

6.2D/3D Noise Reduction

7.Lens 3.6mm

Application

Family,The school,Bank,The factory,The parking lot,Square,Shopping center,The airport,The bus station,The supermarket,Prison,Office Building,The meeting,Park,Chemical.

Features

1.15M wired IR IP camera,

2.Power Supply DC12V±10%

3.Transmission Distance Over 500m via 75-3 coaxial cable

4.Support IE,mobilephone and CMS view

5.Support DVR

6.1-channel BNC HDAHD high definition video output

SPECIFICATIONS
Product Type	AHD Camera
Image Sensor	1/4'' 1.0Megapixel CMOS(OV9712)	1/3" 1.3MegapixelCMOS(IMX238)
Effective Pixels	1280(H)×720(V)	1280(H)×960(V)
Horizontal Resolution	1280H(100W)	1280H(130W)
Video Frame Rate	PAL: 25fps/720P NTSC: 30fps/720P	PAL: 25fps/960P NTSC: 30fps/960P
Electronic Shutter	1/50(1/60)-1/100,000sec
Minimum Illumination	0.01Lux (0Lux IR on)
Synchronization	Internal
TV System	PAL/NTSC
S/N Ratio	?69dB (AGC Off)
Video Output	1-channel BNC HDAHD high definition video output
AWB	AUTO
BLC	AUTO
Day/Night	Auto(ICR) / Color / B/W
Noise Reduction	2D/3D
IR Length	15m
Lens	3.6mm
Power Supply	DC12V±10%
Working Environment	-10°C~+60°C, Less than 90% RH
Transmission Distance	Over 500m via 75-3 coaxial cable

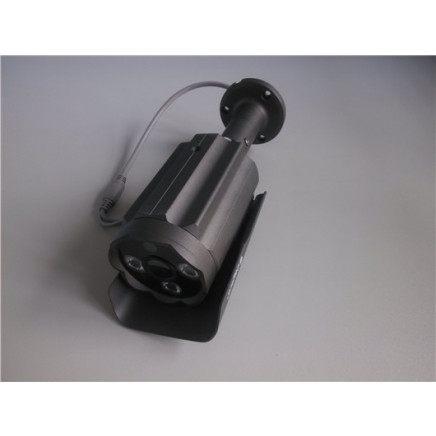

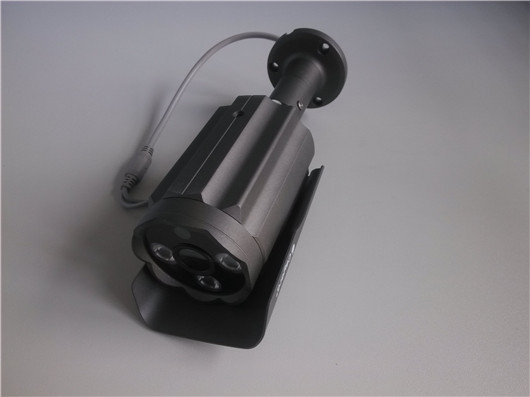

Picture Show:
