Pneumatic Brake Lining Rivet Machine

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$320.0 - $350.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 350/ Piece
2.0	US $ 340/ Piece
5.0	US $ 330/ Piece
10.0	US $ 320/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: T/T, Western Union

Price Valid Time:From May 07, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QM-24B

Power:Pneumatic

Max Rivet Diameter:10mm

Air Source Pressure:0.8-1MPa

Stroke:35mm

Export Markets:Global

Additional Info.

Trademark:Haolida

Packing:Export Plywood Case

Standard:ISO9001

Origin:Shandong China

HS Code:84639000

Production Capacity:3000PCS Per Year

Product Description

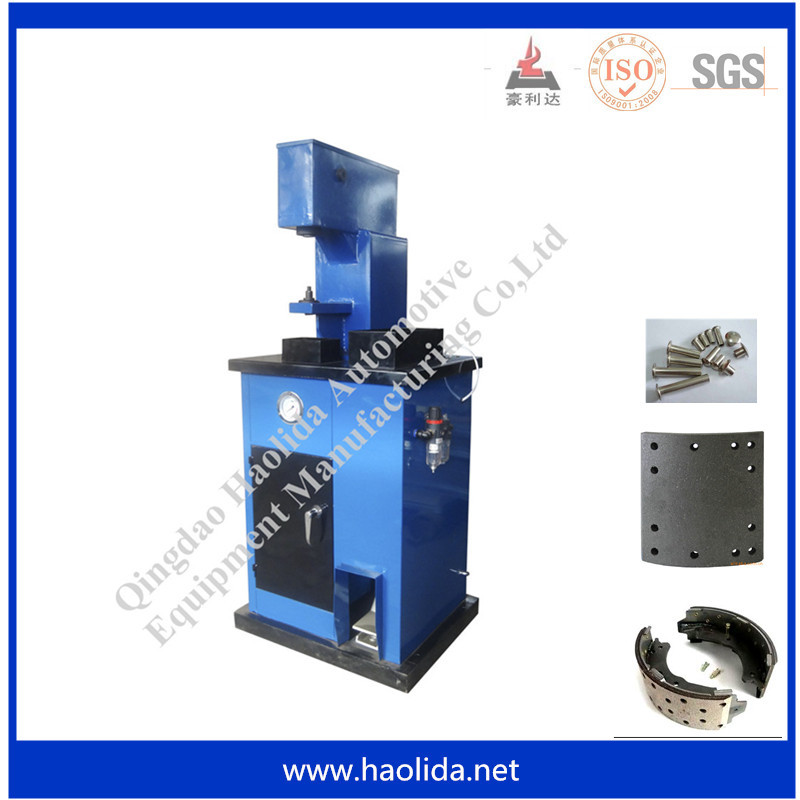

Pneumatic Brake Lining Rivet Machine

General introduction:
1.It uses compressed air as power source (air pressure is adjustable)
2.It is used for riveting rivets of all kinds of brake shoes\brake disc\brake drum\brake lining \ brake pad and other auto parts

Advantages:

It uses air source, it is safe to operate
It is suitable for heavy duty truck brake lingings,etc
Pressure can be adjusted according to size of the rivets
With oil water seperator
With grease filling holes
Pedal room is big
With cabinet for accessories
Good discount based on order quantity

Technical parameter:

Model no	QM-24B
Material	Metal plate
Painting	High quality paint
Color	Blue&black
Max rivet force	60KN(6T)
Working air pressure	0.8-1Mpa(Adjsutable)
Suitable rivet diameter	3-10mm
Stroke of the riveter	40mm
Accessories:
Riveters: 6pcs, used for working on ?3, ?4,?5,?6,?8,?10 rivets Puncher: 2pcs, used to remove old rivets 3mm-10mm
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 100% in advance
Delivery time	7 days after receiving downpayment
HS code	8463900090
Packing sizes	Export plywood case N.W: 69KG G.W: 101KG 6505501360mm=0.49CBM
20'' container	60pcs/100pcs

Why Choose us:

32 years' design,development and produce experience
Professional R&D team
Strict QC
A good pre-sale and after-sale service
Can design and make according to customer's requests

Additional Information
