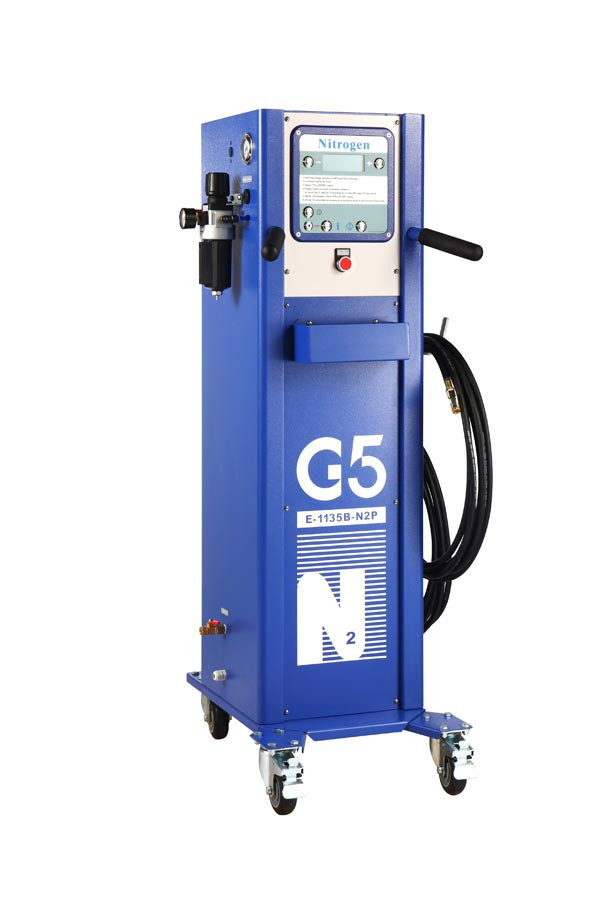

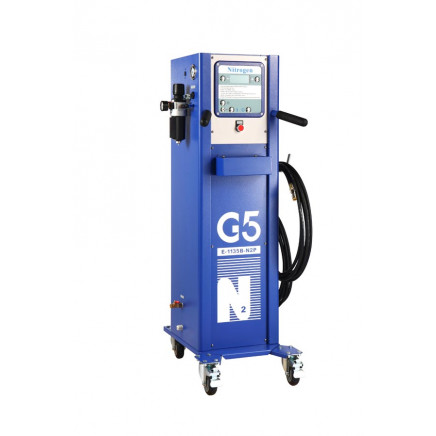

Psa Nitrogen Machine (E-1135B-N2P-1)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, CFR, CIF

Payment Terms:T/T, Western Union

Model NO.:E-1135B-N2P-1

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E-1135B-N2P-1

Type:Nitrogen Inflator

Lifting Capacity:Inflate Tyre with Nitrogen

Certification:CE

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Western Europe

Product Description

E-1135b-N2P Technical Data Summary

Dimensions (Height*Width*Depth)

1260mm*450mm*590mm

49.6''*17.7''*23.2''
Net Weight 72kg/159lbs
Gross Weight 89kg/196lbs
Packing Size(Height*Width*Depth)

1380mm*730mm*510mm

54.3''*28.7''*20.1'''
Power Requirement 100-240VAC 50/60Hz
Power Consumption 30VA
Operating Temperature Range -20/-4° F to 70 / 158° F
Compressed Air Input Range 87-217PSI/6-15bar /600-1500kPa
Nitrogen Purity 95-99+%
Nitrogen Output

61L/min(2.1cfm)@116PSI/8bar/800kPa

Absorption pressure
Maximum Nitrogen Pressure in Tank 102PSI/7bar/700kPa

Specifications

1. Generates nitrogen from your compressed air

2. 1 Pre-Filters

3. Internal nitrogen storage tank

4. Auto-Start inflation

5. Automatic zero drift adjustment

6. Remain at last setting

7. Audible and visual end of the cycle signal indicators

8. Self-diagonstic features

9. Vandal resistant mechanical switches

10. Large backlight LCD display

11. 2 Nos. *8M/26ft standard hose with single clip-on closed chuck

12. Comprehensive diagnostics and error reporting

13. Nitrogen purge and fill cycle(N2P)

14. Nitrogen purity test port

15. Adjustable over pressure setting(OPS)

16. Adjustable number of cycles

17. Adjustable lower purge pressure limit

18. 2 air outlets allow simultaneous inflation of up to 2 tires

19. 1Nos Nitrogen Outlet to connect the unit and your tyre inflation gun

Operation Steps

1. Set final target pressure using the + and - buttons. The LCD screen will show the target pressure.

2. Connect air hose to tyre valve stem.

3. FOR TOP-OFF ONLY: Push the "FILL/PURGE" button once.

FOR NITROGEN CONVERSION: Push and hold the "FILL/PURGE" button for 2 seconds until the LCD screen shows "N2P".

4. When unit "beeps" and the LCD screen flashes the target pressure, tyre inflation is complete.
