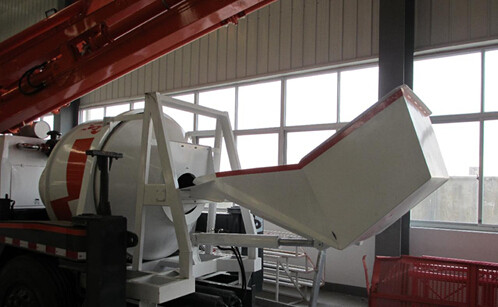

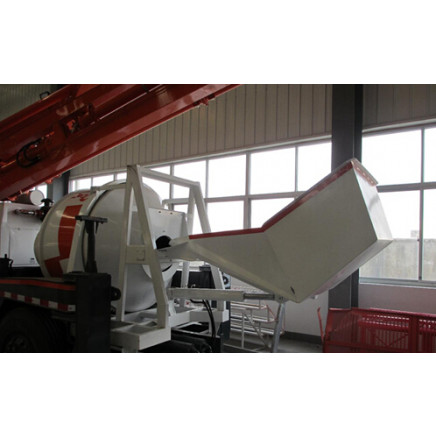

Radio Remote Control Mixing Boom Pump

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 201560.00/ Piece

Price:US $201560.0 / Piece

Trade Terms: FOB, CFR

Payment Terms: L/C, T/T

Price Valid Time:From Apr 27, 2015 To Jul 27, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:MBP25/17

Horizontal Reach:17m

Boom Type:Z Folding Boom

Z Folding Boom:Yes

Export Markets:Global

Additional Info.

Trademark:TRUEMAX

Packing:Standard or According to Your Detailed Requirement

Standard:ISO9001: 2000 and CE CERTIFICAT

Origin:China

HS Code:8479109000

Production Capacity:10 Units/Month

Product Description

Truemax Concrete Mixing Boom Pump in Sudan

Mixing and pumping are completed by one operator. Boom movements are controlled by radio remote
controller. Reduce the labor and operate easily.Featured sliding rail connecting between mixing
and pumping is easily for maintenance and piston replacement.Optimal designed arc hopper provides
high efficiency suction of concrete.Mixing drums is gear driven which is reliable and won't slip.

1. Truemax Concrete Mixing Boom Pump combine the functions of pump and boom in one machine, which achieve the delivery and pouring of concrete to the building. It is easy to operate BC30DZ3 in a low cost of use.

2.Truemax Concrete Mixing Boom Pump can be operated by one operator and the movement of boom can be controlled in use of wireless remote control which may save labor and easy to operate.

3. Optimized arc-shaped hopper make a high inhalation rate.

4. Boom is slewed in tower rotation by hydraulic drive with 360° .

5. Standard configuration with wireless remote control make the operating more easy and convenient.

6. Main electronic components are word-famous brands
Radio Remote Control Mixing Boom Pump

1.17 m horizontal reach
2.Z folding boom 3 section arms
3.With radio remote control
4.Max mixing capability:15m3/h
5.Max output Pressure:6MPa
6.Power: 74KW
7.Min turning radius:6.2m
Radio Remote Control Mixing Boom Pump

Mixing and pumping are completed by one operator. Boom movements are controlled by radio remote
controller. Reduce the labor and operate easily.Featured sliding rail connecting between mixing
and pumping is easily for maintenance and piston replacement.Optimal designed arc hopper provides
high efficiency suction of concrete.Mixing drums is gear driven which is reliable and won't slip.

Boom System
Max.Radlus of placing Boom	17m
Number of Boom Section	3
Length of Boom Section	6.6/5.6/4.8m
Slewing Range	360°
Length of End Hose	3m

Pumping System
Max theoretical concrete conveying capacity	20m³/h
Max concrete pumping pressure	6Mpa
System pressure	25Mpa
Distributing valve form	S valve
Concrete cylinder size(diameter x stroke)	180*180mm
Hydraulic circuit type	Open circuit
Outlet diameter	?150mm
Inner diameter of the delivery pipe	?125mm
Diesel engine	Cummins
Engine power	60kw
Concrete hopper(volume*charging height)	0.6m³*1400mm
Cooling way for hydraulic oil	Air cooling or water cooling
Max aggregate size	40mm

Mixing System
Max theoretical mixing capacity	15m³/h
Mixer model	JZC350
Input capacity	560L
Output capacity	350L
Drum diameter	1440mm
Drum ratary speed	15rpm
Hopper hoisting time	6s
Hopper descending time	4s
Mixing time	45-60s

Others
Made of control	Cable control/Radio remote control
Max.trailer speed	8km/h
Tread distance	3200mm
overall dimension(length x width x geight)	730022803150mm
Weight	11000kg
