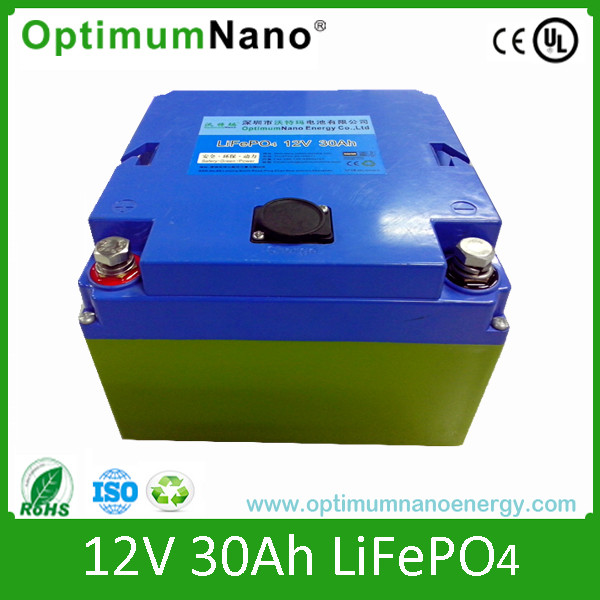

Rechargeable 12V Lithium Battery for Energy Storage

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $500.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 500/ Piece
1000.0	US $ 1/ Piece

Trade Terms: FOB, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Aug 12, 2015 To Nov 12, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-1230

Type:Lithium-Ion Batteries

Usage:Electric Power, Lighting, Electric Bicycle

Nominal Voltage:12V

Discharge Rate:Medium Discharge Rate

Shape:Cylindrical Battery

Electrolyte:Lithium Iron Phosphote

Installation:Packaged

Rechargeable:Chargeable

Standard Capacity:30ah

Rated Voltage:12V

Max.Charge Voltage:14.6V

Cut-off Voltage:10V

Weight:4kg

Dimension:118*175*175mm

Casing Material:SLA Style Glue Case

Cycle Life:2000 Times

Certificates:CE, UL, RoHS/SGS, ISO9001, Ts16949, Un38.3

Warranty Period:24 Months

Export Markets:Global

Additional Info.

Trademark:OptimumNano

Packing:Plastic Casepvc or Cutomized Alumilium Case

Standard:CE, UL, ROHS, SGS, TS/16949 and ISO9001-2008

Origin:China Guangdong Shenzhen

HS Code:85078020

Production Capacity:1000packs/Week

Product Description

2012 hot sale rechargeable 12V lithium battery for energy storage

Key Features:
1. Extremely safe and stable chemistry:
Rigid Aluminum alloy housing protection, and BMS built inside to balance protect the battery.

2. Long life-cycle
5-7years, up to 2000cycles(while Sealed Lead Acid batteries only 750 cycles and NiMH batteries only 500 cycles)

3. Lighter and smaller
1/2 size weight of SLA batteries. 70% size/weight of NiMH/NiCd batteries

4. Wide operating temperature,
High temperature resistance(-20-60 degrees celsius)

5. Steady performance,
Higher discharge rate for more powerful devices, 1C continuous, 5C pulse for normal cells and 20 C for special design. Low self-discharge rate, less than3%monthly

6. No memory effects and highly efficient charge,
It can be recharged anytime, no reduction of the capacity

7. Green product
Environment friendly: Clean and Green energy poses no pollution on our enviroment

If you have any requriements, pls do not hesitate to contact with me.

Battery specification
VOLTAGE AND CAPACITY	IFR 12,8/20	IFR 12,8/30	IFR 12,8/50	IFR 12,8/100	IFR 12,8/150	IFR 12,8/200	IFR 12,8/160
Nominal voltage	12,8V	12,8V	12,8V	12,8V	12,8V	12,8V	12,8V
Nominal capacity @ 25°C*	20Ah	30Ah	50Ah	100Ah	150Ah	200Ah	260Ah
Nominal capacity @ 0°C*	18.7Ah	28Ah	46.7Ah	93.5Ah	140.2Ah	187Ah	243.1Ah
Nominal capacity @ -20°C*	14.76Ah	22.14Ah	36.9Ah	73.8Ah	110.7Ah	147.6Ah	118.08Ah
Nominal energy @ 25°C*	256Wh	384Wh	640Wh	1280Wh	1920Wh	2560Wh	3328Wh
*Discharge current ?1C
CYCLE LIFE
100% DoD	2000 cycles
80% DoD	3000 cycles
60% DoD	5000 cycles
DISCHARGE
Recommended continuous discharge current	?30A	?60A	?60A	?100A	?100A	?100A	?100A
Maximum 10 s pulse current	120A	120A	150A	150A	150A	150A	150A
End of discharge voltage	10V	10V	10V	10V	10V	10V	10V
OPERATING CONDITIONS
Operating temperature	-20°C to +60°C (do not charge when battery temperature < 0°C)
Storage temperature	"-20°C to +70°C"
Protection class	IP 56
CHARGE
Charge voltage	Between 14V and 15V (<14,6V recommended)
Float voltage	13,6V
Maximum charge current	20A	30A	50A	100A	150A	200A	260A
Recommended charge current	?5A	?6A	?10A	?20A	?30A	?40A	?50A
OTHER
Max storage time @ 25 °C*	1 year
Dimensions (hxwxd) mm	18276167	118175175	190165175	330170220	520262242	520262242	520262242
Weight	2.8kg	4kg	7kg	16kg	23kg	30kg	37kg
*When fully charged
Item
Model
Standard capacity
Rated voltage
Max.Charge voltage
Cut-off voltage
Battery dimension
Total weight(Approx.)
Continuous discharge current
Peak discharge current
Battery dimension
Total weight(Approx.)
Operate temperature
BMS
Cycle time
