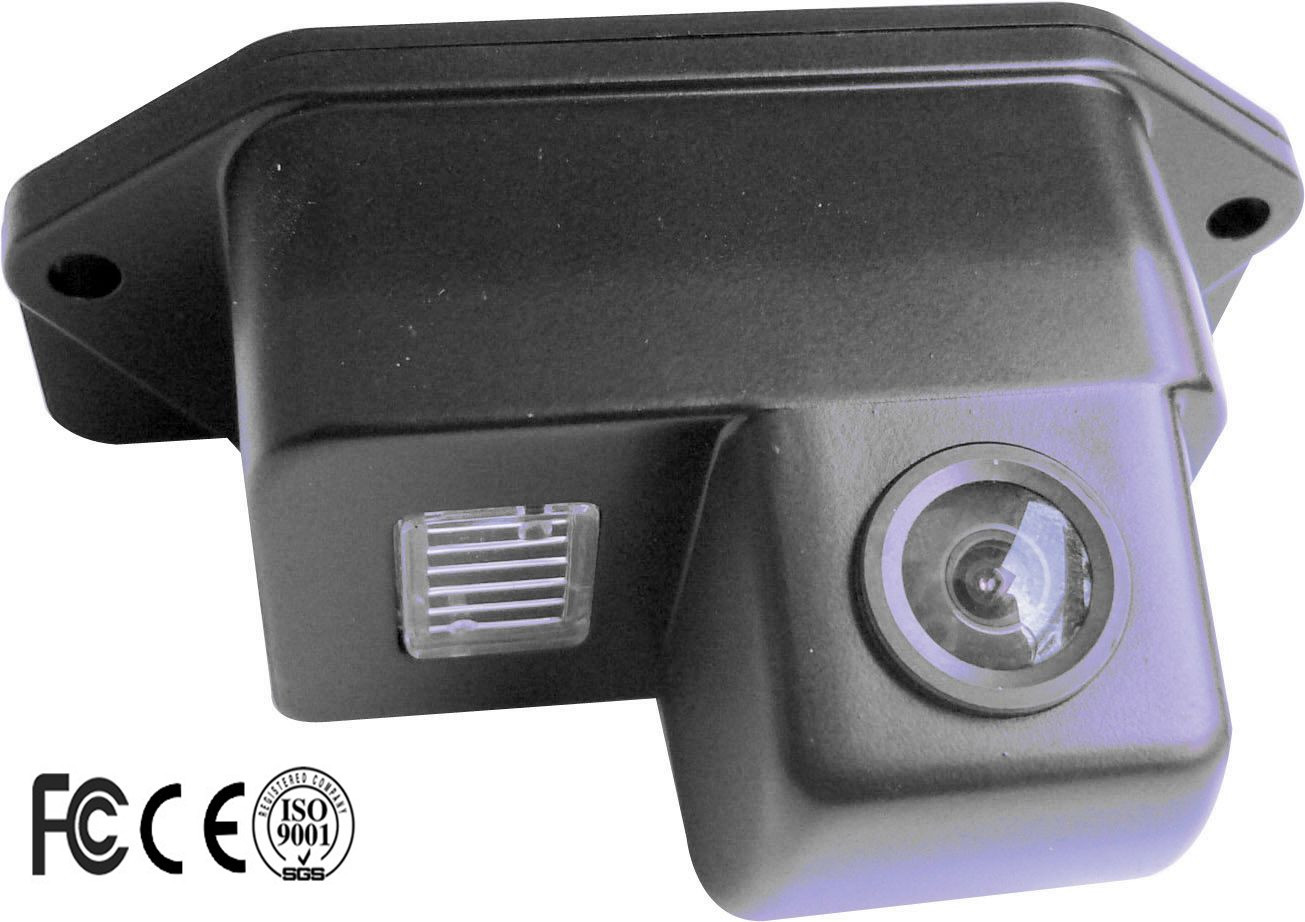

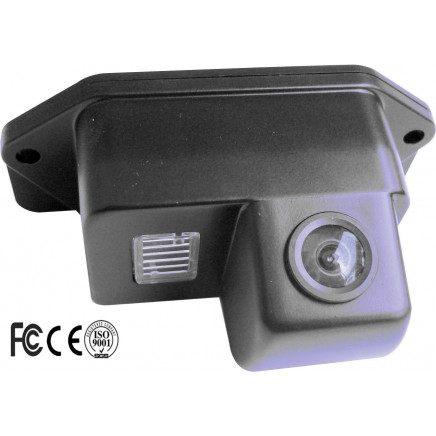

Reversing Camera (CA-594) for Mitsubishi Lancer

More Views

More than 10 available

Availability: In stock

Price:

Min. order:2 Pieces

Trade Terms:FOB, CFR, EXW, CIF

Payment Terms:L/C, T/T, Western Union

Trademark:Candid or OEM

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Model NO.:CA-594

Shell Material:ABS Plastic

Display Type:Reverse Image

Interface:RCA

Function:Waterproof

Definition:600tvl Max

Chip:CCD

Waterproof Grade:IP68

Accessary:6.5m Length Cable

Export Markets:Global

Trademark:Candid or OEM

Packing:Neutral Paper Box

Standard:Sony CCD or CMOS Lens

Origin:Made in China

HS Code:8525801390

Production Capacity:100000PCS /Month

Special designed for Mitsubishi Lancer
Sony CCD or CMOS lens
Waterproof
Night lamp
Easy installation without drilling hole

Key Technical Parameter
Technical Title	Technical Parameters	Technical Parameters	Technical Parameters
Image Sensors	CMOS 6070	CMOS 1089	Sony CCD high resolution
Resolution(TV Line)	420TVL	480TVL	600TVL
Effective Pixels	648*488	728*488	728582/728512
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC
Lens Angle (Deg.)	170°	170°	170°
Minimum illumination	0.1 Lux	0.5 Lux	0.1 Lux
Electronic Shutter	1/60(NTSC)/1/50(PAL)-1/10,000S	1/60(NTSC)/1/50(PAL)-1/10,000S	1/60(NTSC)/1/50(PAL)-1/10,000S
S/N Ratio	?48dB	?48dB	?48dB
Horizontal Sync.Frequency (KHZ)	15.625KHz/15.734KHz	15.625KHz/15.734KHz	15.625KHz/15.734KHz
Vertical Sync.Frequency (HZ)	60Hz/50Hz	60Hz/50Hz	60Hz/50Hz
Video output	1.0vp-p,750hm	1.0vp-p,750hm	1.0vp-p,750hm
White Balance	Auto	Auto	Auto
AGC	Auto	Auto	Auto
BLC	Auto	Auto	Auto
Power Supply	DC12Vą1V	DC12Vą1V	DC12Vą1V
Power	0.5w-1.5w	0.5w-1.5w	<1W
Current Consumption (mA)	40-120mA	40-120mA	70~80mA
Operating Temperature (Deg.C)	-40~+85(RH95%MAX.)	-20~+70(RH95%MAX.)	-30~+70(RH95%MAX.)
Storage Temperature (Deg.C)	-40~+85(RH95%MAX.)	-30~+80(RH95%MAX.)	-40~+80(RH95%MAX.)
