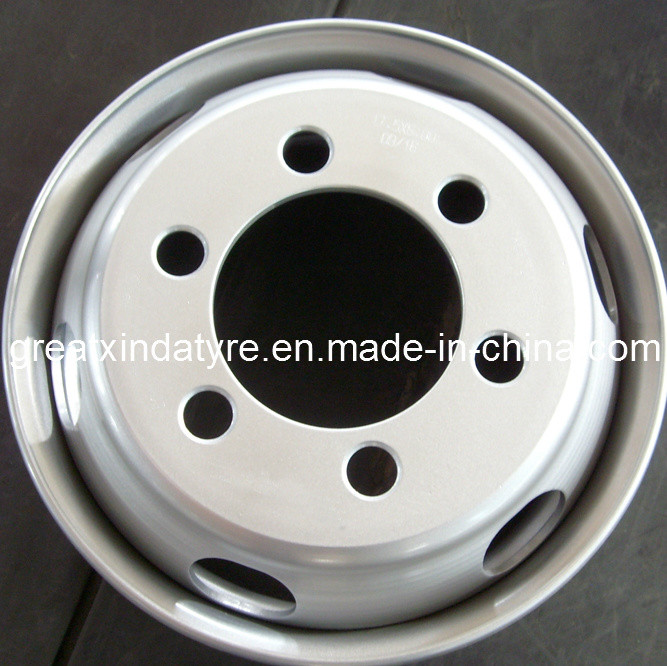

Semi Truck Steel Wheel (17.5X5.25 17.5X6.00 17.5X6.75)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
200.0	US $ 20.0-30.0/ Piece

Price:$20.0 - $30.0 / Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Feb 26, 2013 To Mar 20, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:17.5X5.25 17.5X6.00 17.5X6.75

Material:Steel

Type:Wheel Hub

Drive Wheel:4WD

Wheel Hub Diameter:17.5inch

Finishing:Cathodc Electrodephoretic Coating

Wheel Accessories:Wheel Spoke

Certification:ISO

Size:17.5inch

Color:Slivery

Certificate:DOT CCC Gcc Inmetro

Export Markets:Global

Additional Info.

Packing:Plastic/Nude/Pallet

Standard:CE

Origin:Shandong, China

HS Code:870870

Production Capacity:1, 000, 000PCS/Year

Product Description

Semi Truck Steel Wheel
17.5x5.25 17.5x6.00 17.5x6.75
Disc thickness: 10mm or 12mm
Rim thickness: 7mm
Wheel Weight: 20kg to 26kg

-Tube steel wheel size: 5.50-16, 6.00-16, 6.50-16, 6.50-20, 7.00-20, 7.50-20, 8.00-20, 8.50-24
-Tubeless steel wheel size: 17.5x5.25, 17.5x6.00, 17.5x6.75, 19.5x6.75, 19.5x7.5, 22.5x6.00, 22.5x6.75, 22.5x7.50, 22.5x8.25, 22.5x11.75, 22.5x9.00

Delivery: 15 days
Payment terms: L/C at sight or 30% deposit, balance after shipment against B/L copy
MOQ: 1x20ft

Now we can supply you with wide range sizes of truck wheels, fit with excellently quality. All the parameters can be changed as your required.

Wheel Spoke Parameter:

No.	No. of Bolt Holes	Bolt Hole DIA.	Bolt Hole Type	P.C.D.	C.B.D.	Offset
1	5	29 / 32.5	SR22	203.2	146	115
2	5	29 / 32.5	SR22	208	150	120
3	6	20.5 / 21.5	1X45°	190	140	115
4	6	20.5 / 21.5	1X45°	205	161	125
5	6	32.5	SR22	222.25	164	135
6	8	26	1X45°	275	221	134
7	10	26/21.5	1X45°	225	176	133
8	5	26/32	SR22	205	161	125
