Sinotruk HOWO 6X4 A7 371HP Tractor Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Sinotruk HOWO 6X4 A7 371HP Tractor Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 10000.0-60000.0/ Piece

Price:$10000.0 - $60000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, Money Gram, Western Union

Price Valid Time:From Jan 20, 2015 To Nov 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4257S3241V

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 2

Drive Wheel:6×4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Colour:Optional

Cabin Type:A7-G

Driving Type:Both Rhd and LHD Are Ok

Horse Power:371HP

Overall Length:6800 Mm

Overall Width:2500 Mm

Overall Height:3700 Mm

Dead Weight:9180 Kg

Rated Loading Capacity:41-50 T

Export Markets:Global

Additional Info.

Trademark:SINOTRUK HOWO

Packing:Nude Packing

Standard:SGS

Origin:China

HS Code:8701200000

Production Capacity:50000 Units/Year

Product Description

SINOTRUK HOWO 6X4 A7 371HP Tractor Trailer

(A)Specifications:

Driving Type: 6X4
Truck Type: Tractor Truck
Vehicle Brand: SINOTRUK HOWO

Rated Loading Capacity: 41-50T
Engine model: WD615.47, 371 HP Euro II
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection

Displacement: 9.726 liters
Max. Output: 371 hp (272 Kw) at 2200 rpm
Bore/Stroke (mm): 126/130

Transmission: HW19710, 10 speeds forward and 2 reverse (Manual)
Front Axle: Steering with double T-cross section beam
Rear Axle: Pressed axle housing, central single reduction

Steering: ZF power steering, hydraulic steering with power assistance
Tires: 12.00R20 (with one spare tire)
Wheelbase: 3200mm+1400mm
Cabin Type: A7-G.

The configurations can be adjustable according to your working condition, loading capacity and special requirements.

(B) APPLICATION:

The Tractor Trucks are widely used in transportation and delivery of coal, mineral, iron powder, steel slag, lime ash, stone, sand, wood, cement and other bulk cargos and so on.

(C) FEATURES:

(1) CONFIGURATION

Brand SINOTRUK: HOWO A7, HOWO, HOVA, SWZ, STEYR, HOKA, Yellow River, etc
Series: Cargo truck, dump truck, tractor truck, mixer truck, water tank truck, fuel tank truck, special truck, bus, etc
Driving style: 4x2, 6x4, 8 x 4, 4x 4, 6 x6 and 8 x 8 and so on
Driving type: RHD, LHD
Engine: With STEYR, MAN technology
Emission: EURO II, III, IV, V

(2) STRUCTURE

The SINOTRUK HOWO Truck are equipped with stable and modern structure and own many practical functions. Our advanced production technology and the best test equipments can make SINOTRUK HOWO Truck present a reliable, stable and modern structure.

(3)ADVANTAGE

SINOTRUK HOWO Truck is equipped with the drive modes of LHD and RHD. Perfect Diesel Engine, high-quality Axles, perfect Suspension Systems, reliable Tires and large load capacity ensure the good performance of SINOTRUK HOWO Truck.

(4) FAST DELIVERY

We can produce the trucks as soon as you finish your order. Our large supply capacity of 50000 UNITS per year can assure to meet your requirements. Our all trucks will be available at any time.

(5) PERFECT AFTER-SALE SERVICE.

Any question will be solved at the first time. We also have technical support to solve your questions before, during your using of our Trucks. Our 24-hour hotline is available at any time.

(D) Brief introduction of CNHTC:

China National Heavy Duty Truck Group Co., Ltd has nearly 60 years' history of truck making since 1958. Introduced STEYR and MAN technology in 1983 and 2009, CNHTC has been one of top five truck suppliers worldwide with its truck products exporting to more than 30 countries including Mongolia, Congo, Kenya, Tanzania Philippine, Nigeria, Russia, Kazakhstan, Ethiopia, Brazil and Korea and so on.

(E)Service assurances:

1. SGS&ISO Certifications, one year Guarantee, free technical assistance.
2. Optional driving types & colors.
3. Optional dimension and configuration. We can also provide customized solution for you.
4. Both small order& large order are OK.
5. Reply to you within 10 hours after receiving your inquiry. After assuring your needed configuration and the dealing issues, we will arrange the production at the first time. We can assure to offer you the trucks you needed with the highest quality within the shortest time.
6. Convenient payment terms and fast shipment.
7. Perfect after-sale service.

WELCOME TO VISIT OUR FACTORY.

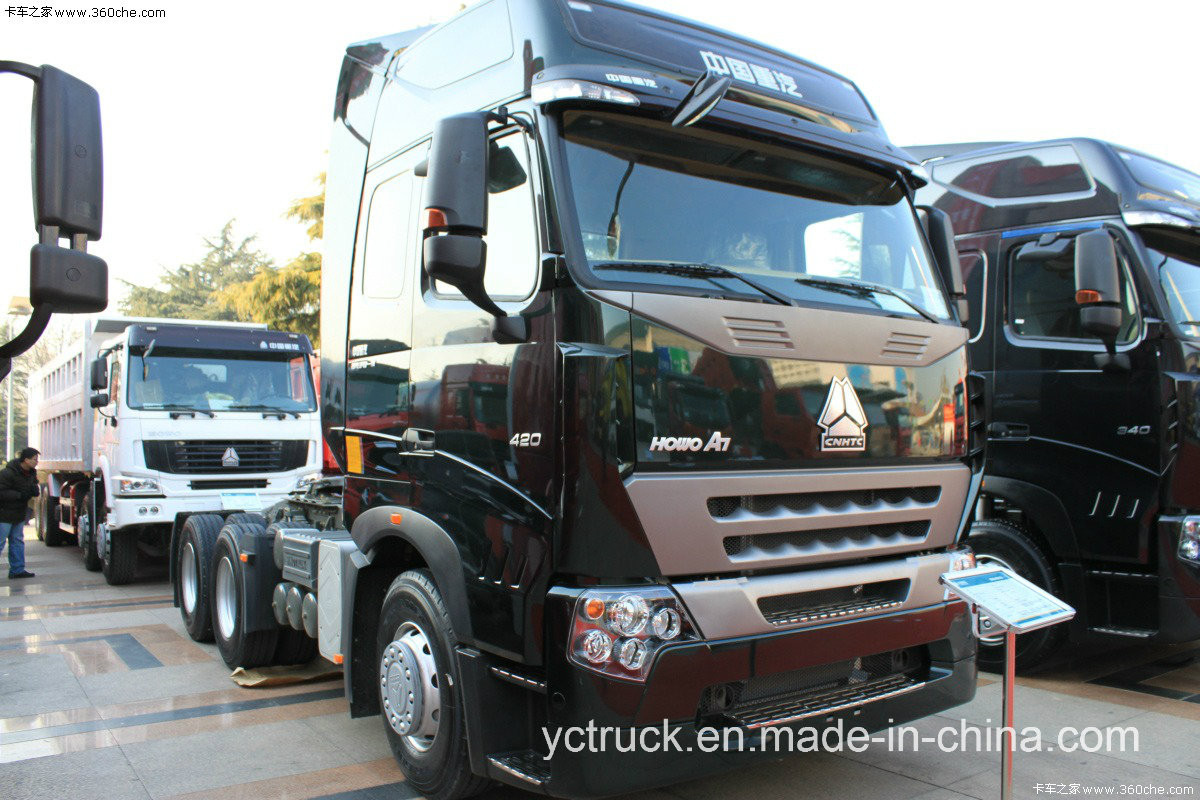

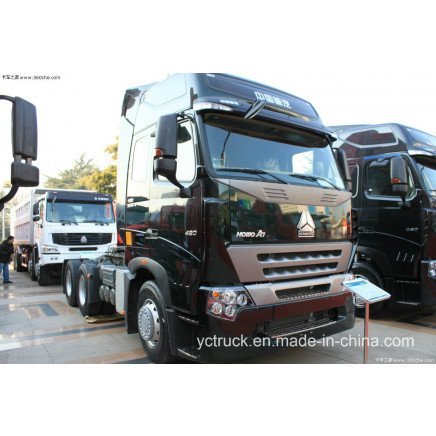

More photos for your reference:

Engine	Made: SINOTRUK
	Diesel 4-stroke direct injection diesel engine
	Engine model: WD615.47, Euro II emission standard
	6-cylinder in-line with water cooling, turbo-charging and intercooling
	Maximum output: 371 hp (272 Kw) at 2200 rpm
	Maximum torque: 1460 Nm at 1300-1600 rpm
	Number of cylinder: 6
	Displacement: 9.726 l
	Bore: 126 mm
	Stroke: 130 mm
	Compression ratio: 29.8 hp/l
	Specific fuel consumption: 195 g/kWh
	Engine oil filling quantity: 19 l
	Cooling system filling quantity (long-term filling): 40 l
	Thermostat with 71 degree opening begin
	Single cylinder air compressor
	Rigid fan
Transmission	HW19710, 10 speeds forward and 2 reserve
Transmission	Fuller technology
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle	Steering with doubleT-cross section beam
Rear Axle	Pressed axle housing, central single reduction
	Ratio 4.42

Chassis	Frame: U-profile parallel ladder frame with section of 350x80x10 mm and reinforced subframe, all cold riveted cross members
	Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
	Rear suspension: 12 leaf semi-elliptic springs with bogie springs
	Aluminium fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassis

Steering	ZF power steering, modol ZF8098, hydraulic steering with power assitance
Steering
Brakes	Service brake: dual circuit compressed air brake
	Parking brake(emergency brake), spring energy, compressed air operating on rear wheels
	Auxiliary brake: engine exhaust brake

Fifth wheel	Fifth wheel size: 2 inch
Fifth wheel	Rated loading capacity at fifth wheel: 22635kg
Tyre	Tyre: 12.00R20
Driver' s Cab	Volve cab(two seats, 1 bed), all steal forward control, 2-arm windscreen wiper system with three speed, laminated windscreen with
	casted-in ratio aerial, hydraulically damped adjustable driver' s seat, with heating and ventilating system, exterior sun visor, safety belts,
	adjustable steering wheel, air horn, air conditioner, with transverse stabilizer

Electrics	Operating voltage: 24 V, negative grounded
	Starter: 24 V, 5.4 Kw
	Alternator: 3-phase, 28 V, 1500 W
	Batteries: 2 x 12 V, 165 Ah
	Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument Panel	Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
Instrument Panel	of compressed air pressure, coolant temperature, engine oil pressure and battery charging
Dimensions mm	Wheel base	3200+1400
	Front wheel track	2022
	Rear wheel track	1830
	Approach angle ( 0 )	16
	Departure angle ( 0 )	70
	Overall length	6800
	Overall width	2500
	Overall height	3700
	Height of fifth wheel above road	1360
Weight kg	Dead weight	9180
	Rated loading capacity at fifth wheel	22635
	Gross vehicle weight	33000
	Gross combination weight	70000
	Front axle loading capacity	7500
	Rear axle loading capacity	2*16000
Performance	Maximum driving speed (km/h)	102
	Maximum gradeability (%)	29
	Minimum ground clearance (mm)	298
	Minimum turning circle (m)	9.25
	Fuel consumption (l/100 km)	35
