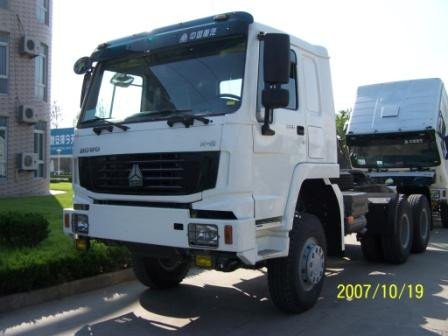

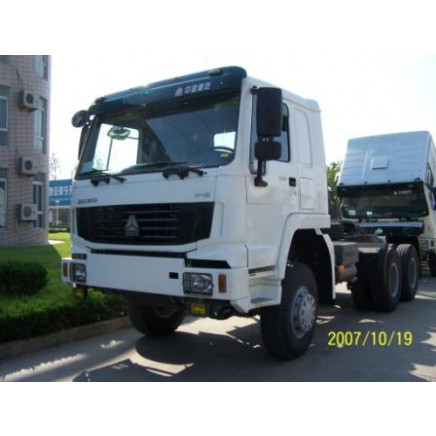

Sinotruk HOWO Tractor Head 6X6 Track Horse

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:HOWO

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4253

Transmission Type:Manual

Power:Diesel

Load Capacity:30t

Emission Standard:Euro 2

Drive Wheel:4WD

Seats:?5

Horsepower:351-450hp

Engine Capacity:6-8L

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:Global

Additional Info.

Trademark:HOWO

Packing:Wax

Standard:6*6

Origin:China

Production Capacity:10000 PCS

Product Description

HOWO tractor head 6x6

HW76 cabin with one bed and air condition

WD615.47 Engine, 371hp,

HW19710 Gear box with 10 forwards and 2 reverses,

12R22.5 tubeless tire

50mm/90mm fifth wheel, JOST Brand

Sinotruk HOWO Tractor Head 6X6 Track Horse

Main Specifications
Truck model	ZZ4257N3557A
Dimension(LxHxW)(mm)	7500×2496×3110
Gross weight(Kg)	25000
Total weight(Kg)	11780
Max.speed(Km/h)	76
Wheelbase(mm)	3500
Engine	Model: WD615.47
	Rated power 273/2200 (KW/rpm)
	Max.torque1 1500 /1100-1600(N.m/r/min)
Clutch
Gearbox	HW19710 Gear box with 10 forwards and 2 reverses
Drive axle	steel front steering drive axle with planetary wheel reduction,ST16 double drive axle
Steering	ZF8098
Transmission	Model ZQC2000
	Ratio 0.89/1.536
Brake type	Service braking; dual circuit compressed air brake; parking brake(hand brake), spring energy air cut brake
Cab	HOWO76 cab
Electric system	HOWO electric system,24V, negative grounded
Tire	12.00-20 Options are: 11.00-20 , 11.00R20 , 12.00R20 , 14.00-20
Fuel tank(L)	400
