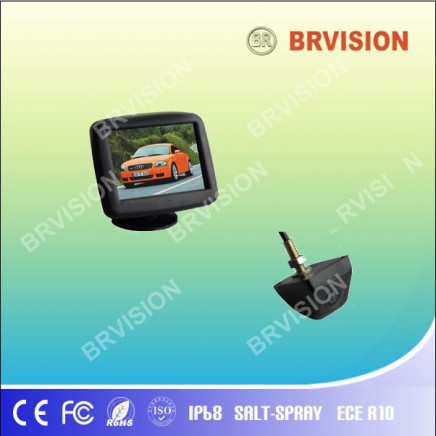

Small Size 3.5-Inch TFT LCD Monitor/Rear View Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal

Trademark:BRVISION

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:MNC05&TM3501

Shell Material:ABS Plastic

Display Type:LCD Matrix

Interface:RCA

Function:Night Vision

Definition:420TVL

Chip:CMOS

Waterproof Grade:IP68

Screen Size:3.5 Inch

System:PAL/NTSC

Image Device:1/4" CMOS Image Sensor

View Angle:170°

Export Markets:Global

Additional Info.

Trademark:BRVISION

Packing:Customerized Packaging

Standard:CE; FCC; E-mark

Origin:Guangdong China

Product Description

Small Size 3.5-Inch TFT LCD Monitor/Rear View Camera
Monitor:
- Screen size: 3.5" digital TFT-LCD
- Display Format: 640 x 240 Dot
- System: PAL/NTSC
- One video input
- Viewing angle: right/left/up/down 40°/40°/20°/50°
- Brightness: 250cd/m2
- Operation Temperature: -20~70°
- Temperature Range Storage -30~80°
- Power consumption: 2W
- Power requirement: DC 12V

- Image Device: 1/4" CMOS image sensor
- TV System: NTSC/PAL
- View Angle: 170°
- Waterproof: IP68
- Vibration Rate: 10G
- Resolution: 420TV lines
- 1.8mm waterproof lens
- Effective Pixels: 510*496pixels
- Sensing Area: 5.961mm*4.276mm
- Minimum Illumination: 0-01Lux
- Video Output: 1-0vp-p, 75Ohm
- Gamma Consumption: 0-45
- White Balance: Auto
- S/N Ratio: Better than 48dB
- Electronic Shutter: 1/60S-1/5000S
- Power Supply: DC12V
- Operating Temperature: -20° to +70° (RH95%Max.)
- Storage Temperature (Deg.C): -30~+80°(RH95%MAX.)
