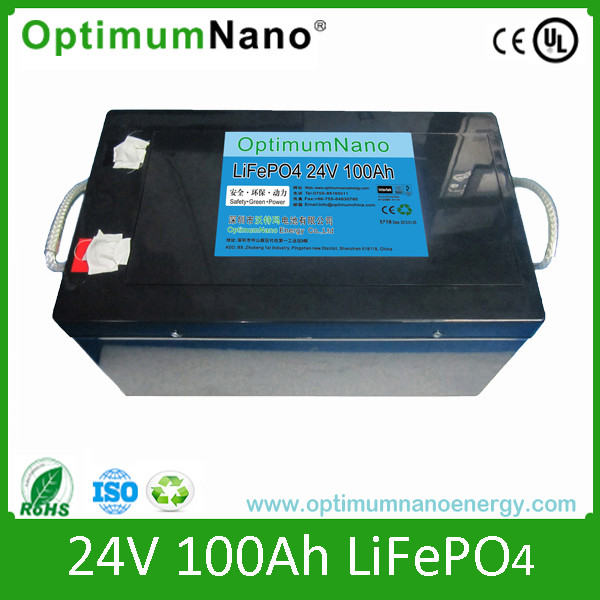

Solar Power System LiFePO4 Battery 24V 100ah

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Solar Power System LiFePO4 Battery 24V 100ah

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $3999.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 3999/ Piece
1000.0	US $ 1/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Aug 03, 2015 To Nov 03, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:opt-24-100

Type:Lithium-Ion Batteries

Usage:Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Nominal Voltage:24V

Discharge Rate:Low Discharge Rate

Shape:Cylindrical Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Proudct Name:Solar Power System LiFePO4 Battery 24V 100ah

Cell:32650

Usage Capacity:100ah

Place of Origin:Guangdong, China

Rated Voltage:24V

Dimensions:360*220*260±2mm

Warranty:2 Years

Package:Wooden Box, Plastic Box, Iron Box and So on

Color:Blue, Black

Export Markets:Global

Additional Info.

Trademark:OptimumNano

Packing:Plastic Casepvc or Cutomized Alumilium Case

Standard:CE, UL, ROHS, SGS, TS/16949 and ISO9001-2008

Origin:Shenzhen, Guangdong, China

HS Code:8507600090

Production Capacity:1000pks/Day

Product Description

solar power system lifepo4 battery 24v 100ah

Specification:

Electrical Charateristics

Nominal Voltage	24V
Nominal Capacity	100Ah
Impedance (Max. at1000Hz)	?25m?
Expected Cycle Life	2000 cycles, with 1C at 25 ºC and left min. 80% capacity

Mechanical Characteristics

Dimensions (LWH)	360220260±2mm
Net Weight	~40Kg

Operation Conditions

Charge Method	Constant Current/Constant Voltage (CC-CV)
Max. Charge Voltage	29.2V
Max. Charge Current	50A
Charge Temperature	0ºC~45ºC
Max. Continuous Discharge Current	100A
Peak Instant Discharge Current	200A,
Peak Instant Discharge Time	5 seconds
Discharge Cut-off Voltage	40.0V
Discharge Temperature	-20ºC~65ºC
Storage Temperature	-20ºC~45ºC

Key Features:

l Attractive cycle life
l Extended safety performance
l Wide operating temperature range
l Unrivalled high temperature performance
l Green energy without metal contaminant
l High capacity
l Steady output voltage
l Little self-discharge
l Double safety protection
l Withstanding very high level of vibrations and shocks

About Us:
1.OptimumNano has more than 4000 employees, including of 300 R & D persons, covering a production area of 80.000 m2 and has brought in over 1000 sets of advanced production equipments. Now we can produce 80,000 pcs of 32650-5.5Ah cells per day and the Daily Production of the new factory will be up to 500,000 pcs.
2.We are the BV(Alibaba) and SGS(Made-in-Chia) approved LiFePO4 battery manufacturer and We has strictly performed ISO9001:2008 quality management system and attained TS16949 certificates since 2009 as well as other products certificates of CE,UL,UN38.3,ROHS,SGS-IEC62133 etc.
