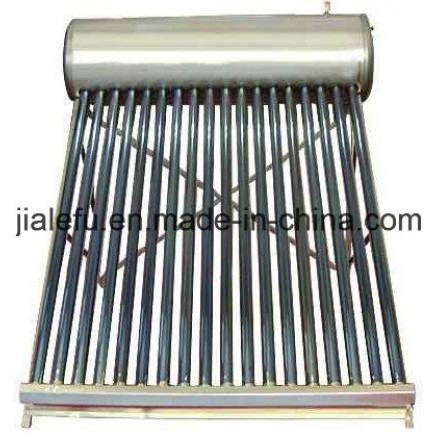

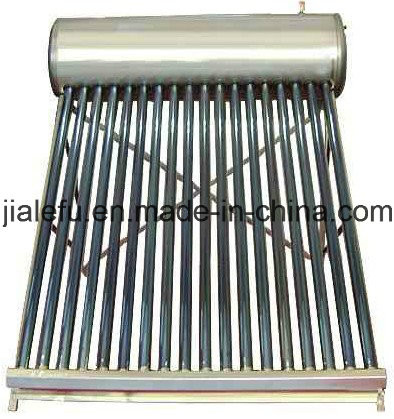

Solar Water Energy Heater for Home (JLF-NP)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 69.0-299.0/ Piece

Price:$69.0 - $299.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Western Union

Price Valid Time:From Apr 13, 2015 To May 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:JLF-NP

Structure:Compact Type

Pressure:Unpressurized

Interior Material:Stainless Steel

Collector Components:Glass Vacuum Tube

Certification:CE, ISO9001, CCC

Tube Size:58mm 1800mm

Warranty:5 Years

Solar Water Heater Color:as Per Customer

Frame:30degree to 60degree

Certificate:CE CCC ISO

Product:Solar Energy Heater (Jlf-Np)

Export Markets:Global

Additional Info.

Trademark:JLF

Packing:Standard Export Carton With Foam

Standard:58mm*1800mm

Origin:China

HS Code:8419191000

Production Capacity:5000sets/Month

Product Description

Solar Energy Heater (JLF-NP):

Non-pressurized solar water heater is a kind of solar water heating system that solar collector and storage water tank are connected together, water tank on the top and collector panel on the bottom. It relies on the natural circulation of waters between the collector and the water tank. As water in the vacuum tubes is heated, it rises naturally into the tank, while cool water in the tank flows down to the bottom of the vacuum tubes, causing circulation throughout the system. It moves household water or a heat-transfer fluid through the system without pumps. It is a simple and safe solution to get heat power from the sun.

Features:
Cheap and reliable solution, Simple structure, Easy installation
High efficiency
Withdraws water by gravity, working pressure no more than 0.1MPa
Operates without any power supply
Electric heater can be applied, 1500W or 3000W
Hot water can be used directly, or can be used and a pre-heat

Specification:

Solar Water Heater Inner tank: SUS304/2B (food grade) Stainless Steel Thickness
0.4mm/0.5mm/0.6mm
Solar Water Heater Outer tank: Galvanized Steel/Stainless Steel SUS304/BA(shinny) Thickness
0.4mm
Solar Water Heater Insulation layer: Polyurethane Foam Thickness 50mm
Solar Water Heater Bracket: Galvanized Steel/Aluminum Alloy/ Stainless Steel Thickness 1.5mm
Solar Water Heater Vacuum Tube: ?47x1500mm/?58x1800mm/?58x2000mm.
System Capacity: 100~360L
Heat preservation:72hours
Hail?resistance:25mm
Optional Accessories:Assistant Tank, Electric Heater, Controller, Magnesium Stick, etc.

Specification Sheet:

Solar Water Energy Heater for Home (JLF-NP)

Advantages:

1.It operated completely automatic if connect with intelligent controller.
2.Simple structure,easy plug-in installation,can be installed both on flat and inclined roof,and can be used with an auxiliary electrical heater as to provide hot water without sunshine.
3.Superior heat preservation ensured by one-off molding polyurethane foam with thickness 65mm. Can keep warm efficiently for 3 days
4. Stable and reliable performance,well wind resistance.
5.Meet the mankind healthy bath standard:The material of inner tank is SUS304-2B stainless steel sheet; The silica gel ring sealing has a long life against the erosion and it is not harmful to health.
