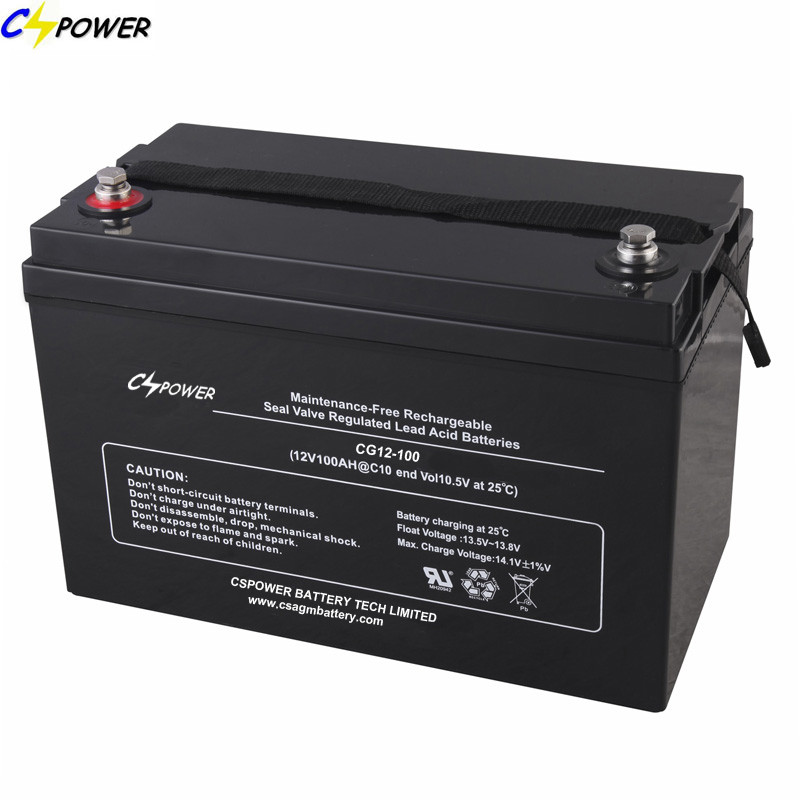

Storage Gel Battery 12V100ah for Solar Power 3years Warranty

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
10.0	US $ 80.0-115.0/ Piece

Price:$80.0 - $115.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jun 17, 2015 To Feb 28, 2018

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CG12-100

Type:Lead-Acid Batteries

Usage:Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Nominal Voltage:12V

Discharge Rate:Low Discharge Rate

Shape:Gel Battery

Electrolyte:Acid

Installation:Fixed

Rechargeable:Chargeable

Size:331*173*213*233mm

Voltage:12V

Capacity:100ah

Weight:30kgs

Delivery Time:7 Days

Expected Cycle Life:15~20 Years

Warranty:3 Years

Brand Name:Cspower/OEM

Export Markets:Global

Additional Info.

Trademark:CSPOWER/OEM

Packing:Carton

Standard:CE, UL, ISO, VDS

Origin:Guangzhou, Guangdong

HS Code:8507200000

Production Capacity:1, 00, 000PCS/Month

Product Description

Performance Characteristics
Nominal Voltage -------12V
Number of cell----------- 6
Design Life -------------------15 years
warranty------------------------3 years

Dimensions and weight

Total Height(mm / inch)---------------------------222 / 8.7
Approx. Weight(Kg / lbs) ------------------------30 / 66
Charge Voltage: Length(mm / inch) ---------328 / 12.9
Width(mm / inch)-----------------------------------172 / 6.75
Height(mm / inch)----------------------------------212 / 8.32

Gel battery shows some distinctive advantages over flooded battery or AGM battery,
such as super thermal stability, high deep discharge capability, good recovery from
deep discharge , even if the battery is left discharged for three days, it will recover
to 100% of capacity. With the above-mentioned advantages, the gel battery has
long service life, specially suitable for motive power applications, such as golf trailer,
sruubber, folklift,etc.The deep discharge cycles increased 50% as compared with
the AGM battery.

Nominal Capacity 77oF(25oC)
10 hour rate (16.0A, 10.8V) ----100Ah
5 hour rate (17.8A, 10.5V) -----89Ah
1 hour rate (73.3A, 9.6V) --------73.3Ah

Internal Resistance
Fully Charged battery 77oF(25oC)--- 5.5mOhms

Self-Discharge
2% of capacity declined per month at 20oC(average)

Operating Temperature Range
Discharge -20~60oC
Charge -10~60oC
Storage -20~60oC

Max. Discharge Current 77oF(25oC)-------- 800A(5s)

Characteristics

CSPOWER GEL battery is manufactured with special sheet separator and colloidal or foamed silica.
The batteries use silica gel to immobilize the electrolyte inside the battery.
The proven silica gel technology improves battery cycle life and performance at extremely cold ambient temperatures.
The deep discharge cycles is increased by 50% as compared with the AGM battery.

Advantages:

1. The colloid battery namely electrolyte liquid contains gaseous silicon dioxide, which shows a gel state characterized by no flow consistency, no leakage and no acid/ liquid dividing layer, allowing the polar plate perform consistently. The battery uses excess electrolytes to avoid drying up of the batter, overcharging, and heat loss. The battery can be put in multiple positions without worry of leakage.

2. Sealed free maintenance design, non spillable and water proof.

3. Longer usage life of cycle 15-20 years.

4. Extremely low discharge rate.

5. Extremely good discharge recovery ability

6. Gas compound efficiency higher than 99%;

7. Efficiently prevents heat loss.

8. Adapts well in different temperature and charge and discharge conditions. It has a long cycle and trickle life even in cases of improper use.

Application

Solar & Wind power systems,
Fire & security systems,
Uninterruptible power supplies;
Golf cart, Electric vehicle;
Electric powered bicycle and wheelchairs;
Marine equipment;
Communication equipment;
Power tools;
Telecommunication systems;
Urgent light systems;
Measurement systems, etc.

Model NO.	Nominal Voltage (V)	Rated Capacity(AH) 10hrs/25	Approx. Weight		Dimensions(mm)								Terminal Type
			kg	lbs	Length		Width		Height		Total Height
			kg	lbs	mm	inch	mm	inch	mm	inch	mm	inch
CG12-33	12	33	10.4	22.9	196	7.70	131	5.16	155	6.10	170	6.69	T9/T16
CG12-38	12	38	12.2	26.84	197	7.73	166	6.54	174	6.85	181	7.13	T12
CG12-50	12	50	16.2	35.6	230	9.06	138	5.43	211	8.30	229	9.01	T9/T16
CG12-55	12	55	16.2	35.6	230	9.06	138	5.43	211	8.30	229	9.01	T9/T16
CG12-65	12	65	20,5	45.1	350	13.8	166	6.54	179	7.05	179	7.05	T9
CG12-70	12	70	22.0	48.4	260	10.2	169	6.65	211	8.30	215	8.46	T16
CG12-80	12	80	23.4	51.5	260	10.2	169	6.65	211	8.3	229	9.02	T14
CG12-85	12	85	29	64.10	307	12.08	169	6.65	211	8.3	234	9.21	T16A/T8
CG12-100	12	100	30	66	331	13.0	173	6.81	213	8.39	233	9.17	T10
CG12-120	12	120	36.5	80.3	407	16.0	174	6.85	209	8.23	233	9.17	T11
CG12-134	12	134	41	90.2	341	13.43	173	6.81	283	11.14	283	11.14	T9/T20
CG12-150	12	150	42.5	93.5	484	19.1	171	6.73	241	9.49	241	9.49	T11
CG12-180	12	180	56.5	124	530	20.9	209	8.23	214	8.43	240	9.45	T9
CG12-200	12	200	60	132	522	20.57	240	9.45	216	8.50	240	9.45	T11
CG12-230	12	230	64	140.8	522	20.6	240	9.45	216	8.50	240	9.45	T9
CG12-250	12	250	68	150	520	20.5	268	10.55	220	8.66	243	9.57	T11
CG2-100	2	100	6.4	14.11	171	6.73	72	2.83	206	8.11	227	8.94	T16
CG2-150	2	150	9.0	19.8	172	6.77	102	4.02	207	8.15	227	8.94	T6
CG2-200	2	200	14	30.9	172	6.77	111	4.37	329	13.0	356	14.0	T20
CG2-300	2	300	20.5	45.2	171	6.70	151	5.94	330	13.0	366	14.4	T20
CG2-400	2	400	27.5	60.6	210	8.27	176	6.93	329	13.0	366	14.4	T20
CG2-500	2	500	33.5	73.9	241	9.5	172	6.8	331	13.0	366	14.4	T20
CG2-600	2	600	41	90.4	301	11.9	175	6.89	331	13.0	366	14.4	T20
CG2-800	2	800	55	121.3	411	16.1	175	6.89	330	13	356	14	T20
CG2-1000	2	1000	66.5	146.6	475	18.7	175	6.89	330	12.99	356	14.02	T20
CG2-1500	2	1500	103.5	228.2	401	15.8	351	13.8	342	13.5	369	14.5	T20
CG2-2000	2	2000	136	299.8	491	19.3	351	13.8	343	13.5	369	14.5	T20
CG2-3000	2	3000	195	429	710	28.0	352	13.9	342	13.5	369	14.5	T20
