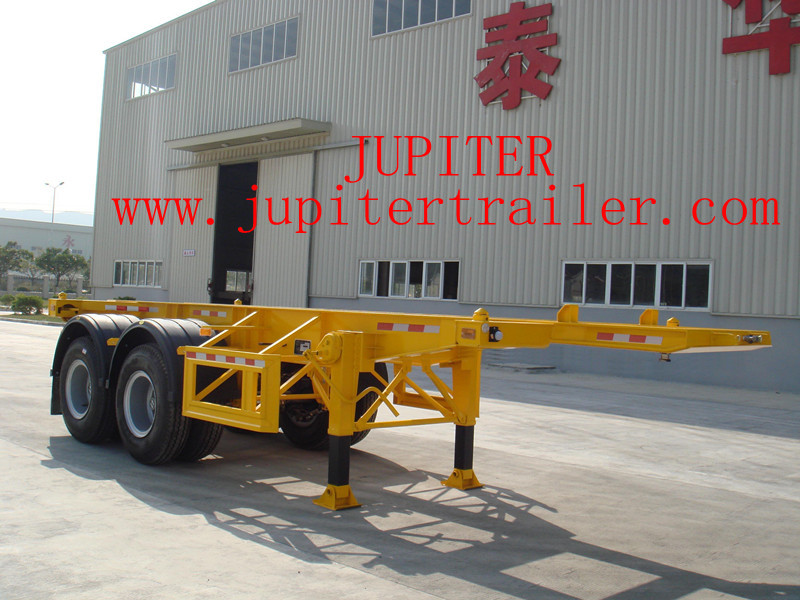

Two Axle Skeleton 20 Feet Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:2 Pieces

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:JUPITER

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9281TJZG

Type:Towing Pin

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Colour:as Your Request

Export Markets:Global

Additional Info.

Trademark:JUPITER

Packing:Nude, Coating with Wax

Standard:CCC

Origin:China

Production Capacity:90 Pieces/Month

Product Description

This container skeletal trailer is made by welding the longitudinal beam, cross beam, and the front and back beam. The main components of this container skeletal semi trailer include chassis, axles, tyres, suspension system, steel rims, and electrical system.

The skeletal container semi trailer possesses a light weight, which can help to reduce the oil consumption and many other costs during the transportation process.

The middle locking device part of the container is fitted with the integral type long cross beam so that the loading capacity of the locking device can be enhanced.

Its longitudinal beam is made of high-quality steel plate which has been made into H-shape after submerged arc wielding treatment; The cross beam is also made of high-quality steel plate that has been pressed into groove type; And the front and back beams are of welded rectangle section.

The difference between the flatbed and skeletal semi trailer lies in that the flatbed one is designed with frames and floor with decorative patterns. And this kind of container skeletal semi trailer has utilized the chassis which has been treated by shot blasting process and is assembled and welded on the special positioning stand. As a result, this trailer has a rational structure, high strength, and a beautiful appearance. There is also a tightening device on the chassis, thus enabling the vehicle to load containers of 40feet and 20 feet. The fixed-type structure has been used in the four container tightening devices in the front and back part, and the middle container tightening device is hideable. When loading containers, the middle container tightening device can be lowered below the loading surface. Mechanical loading device can be used to support the front loading part of the trailer when the towing device is disconnected with the trailer.

We can provide triaxial as well as biaxial container skeletal trailers for our clients around the world.

Electrical System:

24V system with standard 7 pole plug

Rear electrical lighting, brake lights, indicators, fog lights and reversing light

Painting

Sand blasting before painting; One coats of primer, anti corrosion; Two coat of finish painting; Color advised by customer

Accessory

One tool box, side protection.
