Vehicle GPS Tracking Chip Avl GPS Tracking System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 300/ Bag

Price:US $300.0 / Bag

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Aug 18, 2014 To Jul 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:BSJ-A08

Function:Anti-theft Warning, Central Locking System Automation, GSM Network Remote Real-time Monitoring, Mute Anti-theft, Remote Central Locking, Automatically Unlock when Get Close

Type:GSM

Size of Main Unit:76*77*43mm

GSM Frequency:850/900/1800/1900MHz

GPS Sensitivity:-163dBm

Weight of Main Unit:200g

Position Accuracy:10 to 15 Meter

Working Voltage:DC 9V to 36V

Working Current:80mA

Working Temperature:-20 to 70 Centigrade

Humidity:5% to 95%

Interface:4 Digital Input,1 Digital Output, 1 Serial Port

Export Markets:Global

Additional Info.

Trademark:BSJ/Customized brand is accepted

Packing:Netural Box/Gift Box

Standard:ISO9001; CE; Rohs; CCC;

Origin:Shenzhen, China.

HS Code:85311010

Production Capacity:100, 000 PCS/Week

Product Description

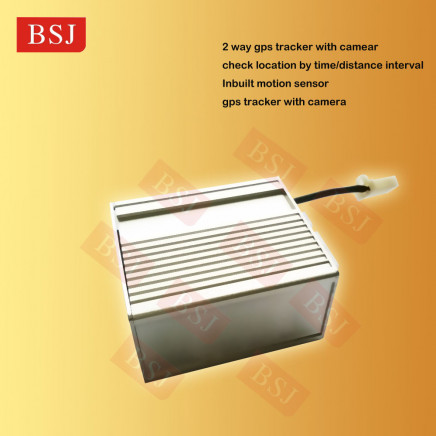

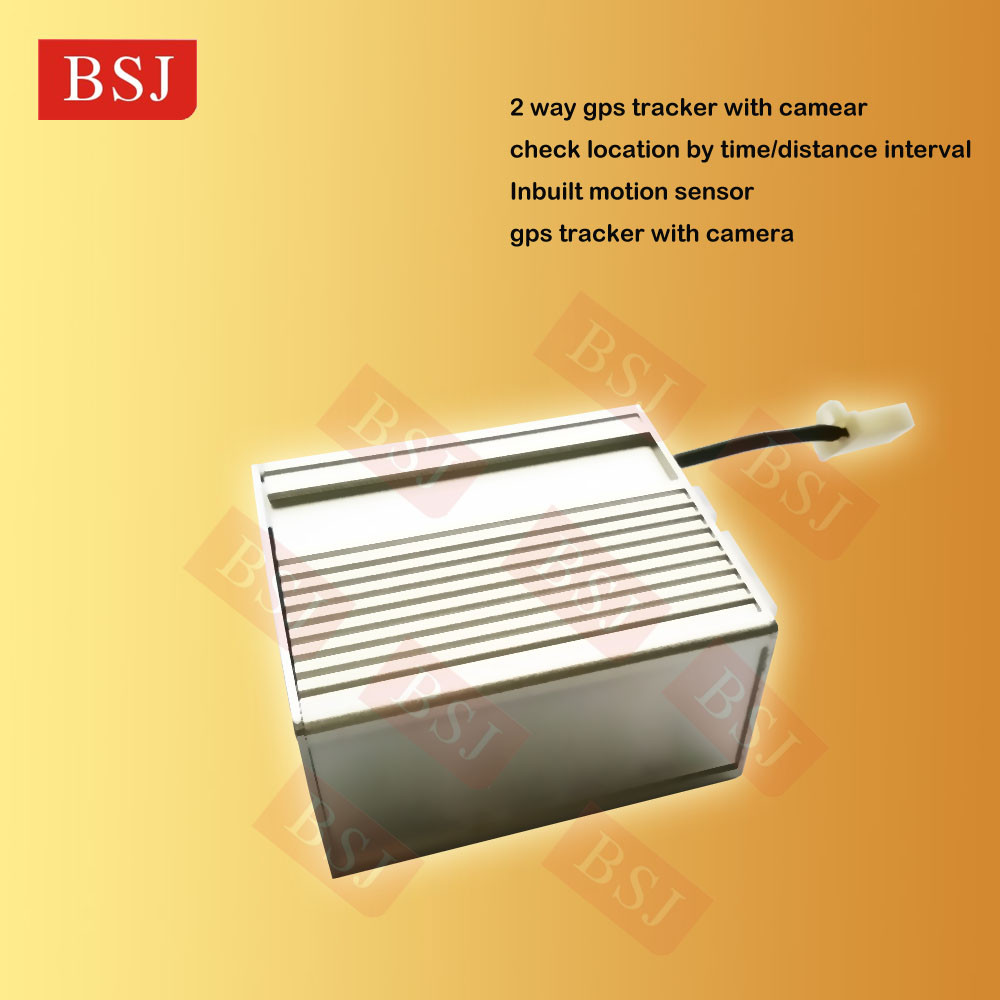

Vehicle GPS Tracking Chip AVL GPS Tracking System

I, Features of Vehicle GPS Tracking Chip AVL GPS Tracking System A08

Real-time GPS tracking
Real-time vehicle status monitoring
Vehicle Immobilization Control
GPS mileage report
Blind area data storage, up to 1, 500 data log capacity
Geo-Fence with 60 rectangle area
Car battery power cut off alarm
Anti-theft and emergency alarm
Over-speed alerts
Remote control via mobile phone
Parking overtime alarm
Remote firmware upgrade via GPRS
With Microphone and listen-in function(Two-way conversation)
TCP/UDP dual mode communication

II. Query function of Vehicle GPS Tracking Chip AVL GPS Tracking System A08
1, Position query

2, Parameter status query

3, Version query

III, Settings of Vehicle GPS Tracking Chip AVL GPS Tracking System A08

1, Regular scheduled times return settings

2, Regular time return location information's time interval settings

3, Over speed alarm threshold settings

4, Parking overtime alarm threshold settings

5, Geo-fence settings

6, IP and port settings

8, Modify the SMS center number settings

9, TCP heartbeat interval settings

10, Main engine output control mode settings.

11, Message debug mode settings.

V. Control of Vehicle GPS Tracking Chip AVL GPS Tracking System A08

1, Remote reset and restart settings

2, Remote control oil

3, Driving mileage initialization

4. Sending and receiving dispatching information and extension instruction

5. Remote upgrade software

IV. Alarm of Vehicle GPS Tracking Device for Truck Car with Free Tracking Software A08

1, Over-speed alarm

2, Parking overtime alarm

3, GPS antenna open circuit alarm

4, Car battery power cut off alarm

5, Custom alarm (high and low sensor alarm)

6, Robbery/SOS alarm

7, Drive in and out of the fence alarm

Communication band	Quad-Band 850/900/1800/1900Mhz
GPS chipset	Latest U-bIox high sensitivity chipset
GPS sensitivity	-159dB
Position accuracy	10-15 meters
Dimension	76x77x43mm
Weight	200g
Working Voltage	DC 9-36V
Working Current	80mA
Working Temperature	-20 to 70 centigrade
Working Humidity	5%~95% RH
Interface	4 digital inputs (3 negative inputs, 1 positive input), 1 digital outputs, 1 serial port
